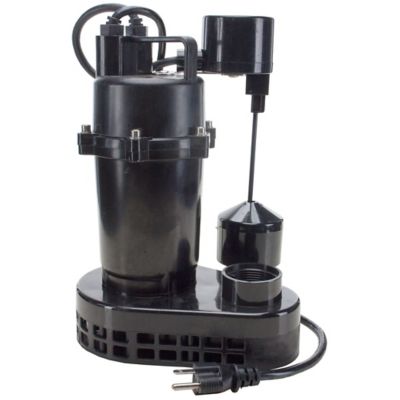

Star Water Systems 1/2 HP 115V Electric Cast-Aluminum Submersible Sump Pump with Vertical Switch, 3,300 GPH
Online Only
Item # 2298770
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2298770
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Star Water Systems 1/2 HP Cast-Aluminum Submersible Sump Pump with Vertical Switch features a cast aluminum motor housing to ensure heat dissipation. This sump pump is designed with a 115V energy-efficient 1/2 HP motor, streamlined vertical switch, built-in thermal overload protection, a 9 ft. double-sealed cord and a 1-1/2 in. FNPT discharge.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sump pumps? Check out our guide on how to replace a sump pump float switch in the product documents section.
- 1/2 HP sump pump features a streamlined vertical switch for long life
- 115V energy-efficient motor provides optimal efficiency
- Sump pump includes a cast aluminum body for optimal durability that resists heat
- Built-in thermal overload protection enhances dependability
- Submersible sump pump fits in 10 in. sump basin
- 1-1/2 in. FNPT discharge
- 9 ft. double-sealed cord for convenient and strong use
- 1 year limited warranty
| Brand | Star Water Systems |
|---|---|
| Country of Origin | Imported |
| Amperage | 4 Amp |
| Basin Diameter | 10 in. |
| Body Material | Cast aluminum |
| Compatible Pipe Material | PVC |
| Discharge Connection | Threaded Female |
| Discharge Port Diameter | 1.5 in. |
| Discharge Rate at 0 ft. | 3,300 GPH |
| Discharge Rate at 10 ft. | 2,280 GPH |
| Engine Displacement | 0 N/A |
| Features | Cast aluminum motor housing, 1/2 HP 115v motor, built-in thermal overload protection, vertical switch, 1-1/2 in FNPT discharge, 9 ft. double-sealed cord. |
| Horsepower | 0.5 HP |
| Hose Diameter | 1.5 in. |
| Inlet Connection | None |
| Inlet Diameter | 0 N/A |
| Maximum Flow Rate | 3,300 GPH |
| Maximum Head Lift | 23 ft. |
| Maximum Operating Pressure | 11 PSI |
| Maximum Operating Temperature | 130 deg. F |
| Maximum Suction Lift | 23 ft. |
| Minimum Operating Pressure | 0 N/A |
| Minimum Operating Temperature | 34 deg. F |
| Power Cord Length | 9 ft. |
| Power Type | Electric |
| Product Height | 12.2 in. |
| Product Length | 8 in. |
| Product Weight | 10.9 lb. |
| Product Width | 9.2 in. |
| Pump Mechanism | Centrifugal |
| Motor Type | 115V PSC |
| Switch-Off Height | 2 in. |
| Switch-On Height | 6 in. |
| Voltage | 115V |
| Warranty | 1 Year Limited Warranty |
| Manufacturer Part Number | 5SPHLC |
