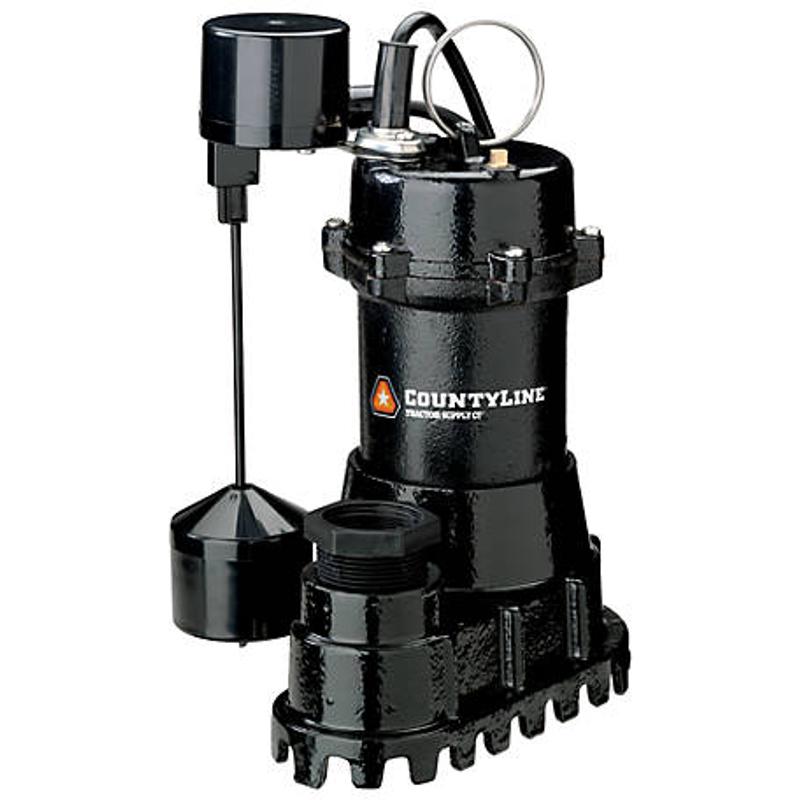

CountyLine Cast Iron Submersible Sump Pump with Vertical Switch, 1/3 HP

SKU: 102812599
CountyLine Cast Iron Submersible Sump Pump with Vertical Switch, 1/3 HP
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.4
4.4
 (111)

Quantity


2754 saratoga blvd
corpus christi, TX 78415
(361) 850-1804
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

Designed to pump 3,300 gallons per hour, this CountyLine Cast Iron Submersible Sump Pump is designed to remove drainage water that collects in the sump basin located in a basement or crawl space. Replace check valve with every installation.

  • Switch Type: Vertical
  • Switch On Level: 6-3/4 in.
  • Switch Off Level: 3-1/4 in.
  • Minimum Sump Diameter: 10 in.
  • 1/3 HP
  • Power Cord Length: 8 ft.
  • Maximum Suction Lift: 22 ft.
  • Outlet Port Size: 1-1/2 in. FNPT
  • 12 in. x 8-1/8 in. x 13 in.
  • 24 lb.
  • Cast Iron
  • CSA, CUS Approved
  • 1 year limited warranty
Tractor Supply is proud to introduce CountyLine, our brand of high quality, competitively priced agricultural products. With a full line of 3-point equipment for your tractor, as well an assortment of sub-compact pieces, our goal is to provide you with the implements you need to get the job done. Designed for durability and superior performance, all CountyLine products come with satisfaction guaranteed.

Specification Description
Power Type: Electric
GPH @ 0 ft. head: 3300 GPH
Warranty: 1-Year Limited
Product Length: 8-1/8 in.
Switch Type: Vertical
Motor Type: PSC Motor
Outlet Port Size: 1-1/2 in. FNPT
Switch On Level: 6.75 in.
Maximum Suction Lift: 22 ft.
GPH @ 15 ft. of Head: 1380 GPH
Solids Handling: 3/8 in.
Minimum Sump Diameter: 10 in.
Thermal Overload Protection: Yes
GPH @ 20 ft. of Head: 480 GPH
GPH @ 5 ft. of Head: 3120 GPH
Product Height: 13 in.
Product Width: 12 in.
Switch Off Level: 3.25 in.
GPH @ 10 ft. of Head: 2280 GPH
Agency Approvals: CSA, CUS
Brand: CountyLine
Product Weight: 24 lb.
Power Cord Length: 8 ft.
Manufacturer Part Number CLVS13C
CountyLine Cast Iron Submersible Sump Pump with Vertical Switch, 1/3 HP is rated 4.4 out of 5 by 111.
Rated 5 out of 5 by from Pump Review Pump does not easily clog up from debris. Easily pumps dirty, muddy water. Has good volume under almost all conditions.
Date published: 2020-06-07
Rated 5 out of 5 by from Good pump! Woke up to a flooded basement one weekend, sump pump was done. Called tsc. they had them in stock This one looked good for the price. So far, works Great!!
Date published: 2020-04-11
Rated 5 out of 5 by from Light work-horse pump Has good pressure and pumping power. Light and easy to work with.
Date published: 2020-03-21
Rated 4 out of 5 by from Replacement pump I bought it to replace one that went out. It work as described. But I gave it 4 stars because the true test will be how long it last.
Date published: 2020-03-12
  • y_2020, m_7, d_12, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_45, tr_66
  • loc_en_US, sid_102812599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

How many watts does this pump pull?

Asked by: Gravedigger
This unit uses 460 running watts.
Answered by: ErlindaC
Date published: 2018-02-15

Is there a way to adjust the float on this pump? It runs for five seconds and drains basin tank. Then the basin fills up in five minutes it runs again.

Asked by: Anonymous
No, there is not any adjustment on this float switch. The pump turns on when the water rises about 3-1/2 to 4”.
Answered by: jessicasm
Date published: 2020-04-17

The motor make a loud hum when there is no water to pump. Is this normal or indication the float switch is bad?

Asked by: Nysfiremedic
Few thing that it could be. 1. There may be some Debris that is in the Impeller Area that is Stopping it from Turning. If the Debris is cleared out, Good Unit. 2. The Float Switch could be Stuck, not able to Move Up and Down on the Rod. 3. Could be the Discharge Pipe has a Blockage in it. 4. Make sure that the 2 (Two) Cords are NOT Plugged into the Wall Outlet Individually. Both Cords are to be Plugged into Each Other, then Only 1 (ONE) Cord into the Wall Outlet. 5. Could be a Bad Capacitor in the Motor. 6. Last of all, Yes, it could be a Bad Float.
Answered by: ErlindaC
Date published: 2020-04-17
