SCHULZ 20Hp 3Ph 120G Horizontal 230/460V
New Arrival
Online Only
SCHULZ 20Hp 3Ph 120G Horizontal 230/460V
Item # 2592579
$6794.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
$6794.99
or
or
$143/mo.† for 48 months at 0% APR or earn $339 in Rewards+ on this purchase.
Valid 8/24/2026 - 9/7/2026
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

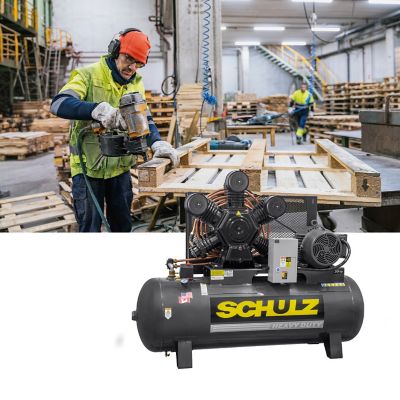

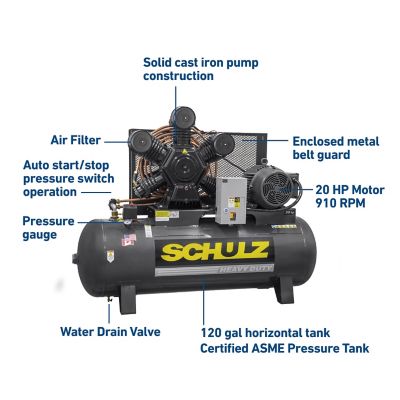

AIR COMPRESSOR - 20HP THREE PHASE - 120 GALLONS HORIZONTAL TANK - 208-230-460 VOLTS

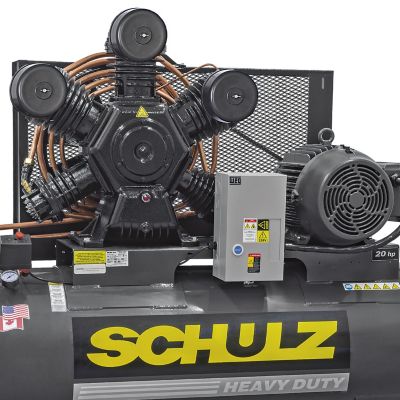

- V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the products high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor. The ASME certified safety valve and air receiver and high efficiency motors make Heavy Duty V-Series compressors the best choice for your company.
| Brand | SCHULZ |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 80 CFM |
| Air Outlet Size | 1 in. |
| Amperage | 40 Amp |
| Compressor Horsepower | 20 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | Cable |
| Drain System | Drain at the bottom of the tank |
| Drive Type | N/A |
| Features | V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated w/quality |
| Maximum RPM | 910 rpm |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Gray |
| Primary Material | Cast Iron |
| Product Height | 58 in. |
| Product Length | 79 in. |
| Product Weight | 1,083 lb. |
| Product Width | 29 in. |
| Pump Life | 5,000 hours with oil change maintenance and |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Style | Horizontal |
| Warranty | 1 YEAR WARRANTY ON THE PRODUCT AND 2 YEARS ON THE PUMP |
| Manufacturer Part Number | 932.9338-0 |
