Powermatic 5 HP Heavy-Duty Cast Iron Shaper, 3 Ph, 230/460V
Item # 152733899
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The Powermatic Heavy-Duty Cast Iron Shaper offers more features to you than any other shaper in the same class. The heavy-duty cast iron shaper features an extra large 30 in. x 40 in precision ground cast iron table with a heavy-duty miter gauge and an aluminum extruded support. This cast iron shaper also includes a built-in and omni-directional caster system that's retractable into the base.5 Year Warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

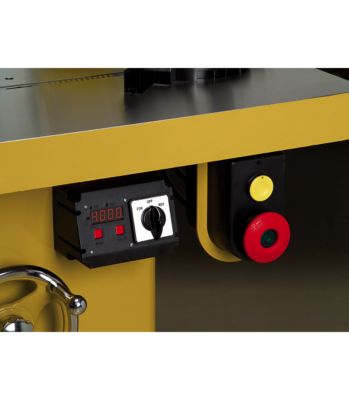

- Digital readout gives users exact spindle height and allows for .001 in. adjustments
- Micro adjust control knobs allow for precision adjustment for the fence

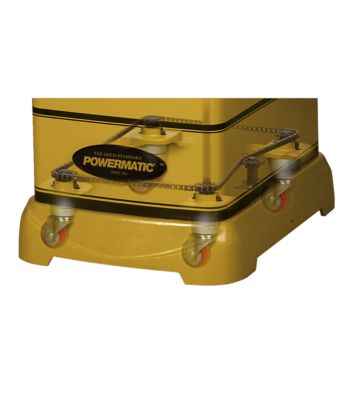

- Integrated casters can be raised and lowered to mobilize shaper
- Heavy-duty cast iron base for durability
- Two speed reversible spindle speeds for versatility
- Independently adjustable fence sides for convenience
- Heavy-duty 30 in. x 40 in. precision ground tabletop for smooth stock feeding

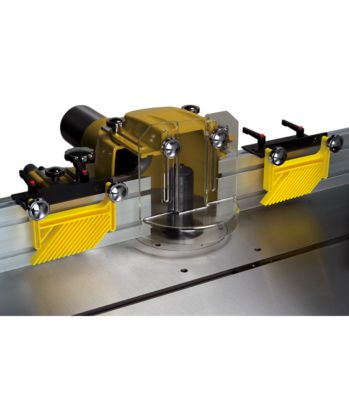

- Superior clear cutter guard promotes safety and allows observation of the entire cut
- Table comes pre-drilled and tapped for feeder mounting in two locations

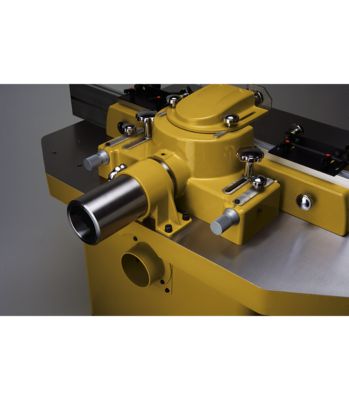

- Cast iron shaper includes 3/4 in. and 1-1/4 in. spindles
- Prewired 230V
| Brand | Powermatic |
|---|---|
| Country of Origin | Imported |
| Collet Size | 0 in. |
| Cut Through | Wood |
| Features | Heavy-Duty |
| Housing Material | Cast iron |
| Maximum Speed | 10,000 rpm |
| Minimum Speed | 7,500rpm |
| Number of Speeds | 2 |
| Peak Horsepower | 5 HP |
| Plunge Depth | 0 in. |
| Power Type | Electric |
| Product Height | 49.75 in. |
| Product Length | 87.5 in. |
| Product Weight | 664 lb. |
| Product Width | 45.5 in. |
| Variable Speed | Variable Speed |
| Voltage | 230V/460V |
| Manufacturer Part Number | 1280102C |
