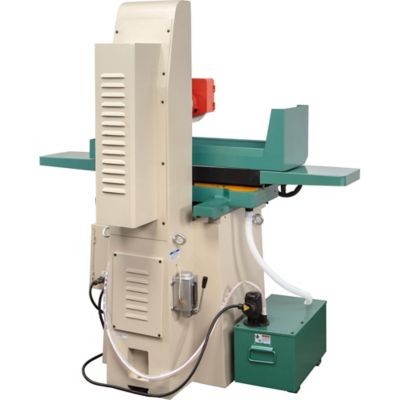

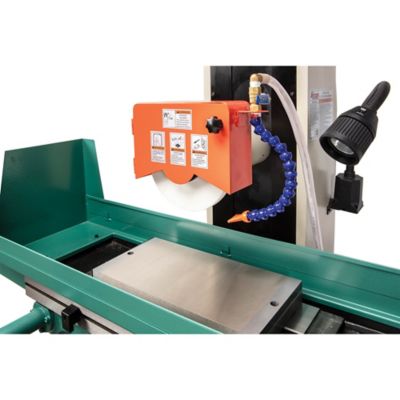

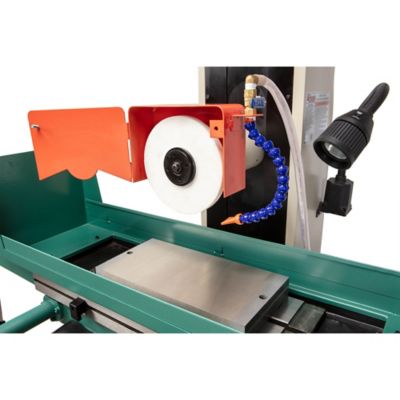

Grizzly G3104-6 in. x 18 in. Surface Grinder
$6199.99
An excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. The G3104 6" x 18" Surface Grinder features heavy cast-iron construction, quiet-running precision spindle, ball bearing longitudinal slide, coolant system and more.
Choose from our selection of grinding wheels then accurately true and balance them with the supplied kit.
This grinding machine is a must-have for precise, close tolerance work.The Grizzly Customer Service and Technical Support Teams are U.S.-based.
Parts for the surface grinder may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Motor: 2 HP, 110V/220V (prewired 110V), single-phase, 18.8A/9.4A
- Table surface: 6" x 18"
- Longitudinal travel: 20-1/2"
- Cross travel: 6-7/8"
- Maximum distance table to wheel: 10-3/4"
- T-slot and size: 1/2" stud, 7/8" head
- Grinding wheel: 7" Dia. x 1-1/4" Bore x 3/4" Wide
- Column size: 7-1/2" x 12"
- Spindle diameter: 1-1/4"
- Spindle speed: 3450 RPM
- Overall dimensions: 61" W x 42-3/4" D x 63" H
- Approximate shipping weight: 1429 lbs.
- Flood coolant system
- Column dial
- Cross feed dial
- Cast-iron cabinet
- One-shot lubrication
- Work light
- 5-7/8" x 15-3/4" magnetic chuck
- Cast-iron construction
- Splash guard
- Grinding wheel balancing kit
- Includes 24-grit grinding wheel
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 18.8 A |
| Corded or Cordless | Corded |
| Features | Flood coolant system, Column dial, Cross feed dial, Cast-iron cabinet, One-shot lubrication Work light, 5-7/8" x 15-3/4" magnetic chuck, Cast-iron construction, Splash guard, Grinding wheel balancing kit, Includes 24-grit grinding wheel |
| Maximum RPM | 3,450 rpm |
| Power Type | Electric |
| Primary Collet Size | 0.75 in. |
| Product Height | 63 in. |
| Product Length | 42.75 in. |
| Product Weight | 1,429 lb. |
| Product Width | 61 in. |
| Switch Type | Button |
| Voltage | 110v220v prewired 110V |
| Warranty | 1 Year |
| Wheel Diameter | 7 in. |
| Wheel Thickness | 0.75 in. |
| Manufacturer Part Number | G3104 |
