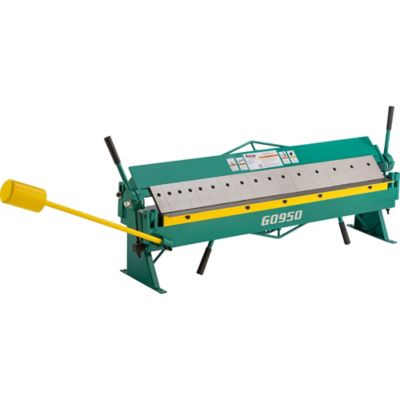

This Pan and Box Brake is suitable for many metal forming operations and includes total of 16 fingers in 2", 3", and 4" sizes that can be easily removed or repositioned. The bed and beam are precision aligned and two independent cam action levers raise the beam well above the bed. A large counter-balanced handle makes brake operations from 0° to 135° easy for all day use.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Maximum capacity: 48"
- Mild Steel Gauge: 16-gauge at half width, 18-gauge at full width
- Brake range: 0-135°
- Minimum reverse bend: 7/16"
- Maximum height of pan/box sides: 2-1/2"

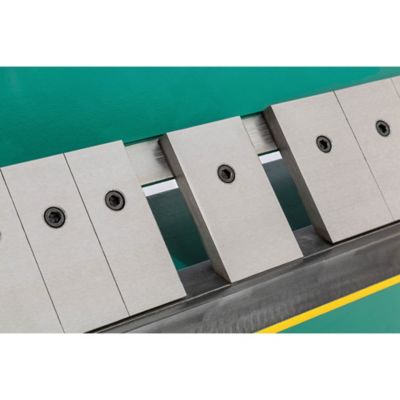

- Number of each box finger size: (5) 2", (6) 3", (5) 4"
- Footprint: 12-1/2" x 52"
- Bending leaf counterweighted for leverage
- Precision-ground steel fingers with hardened edges
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Maximum Bending Angle | 135 deg. |
| Maximum Bending Width | 48 in. |
| Maximum Metal Gauge | 20 gauge |
| Minimum Metal Gauge | 11 Gauge |
| Package Quantity | 1 |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 31 in. |
| Product Length | 18 in. |
| Product Weight | 313 lb. |
| Product Width | 78.5 in. |
| Sheet Metal Break Type | Box and Pan Breaks |
| Warranty | 1 |
| Manufacturer Part Number | G0950 |
