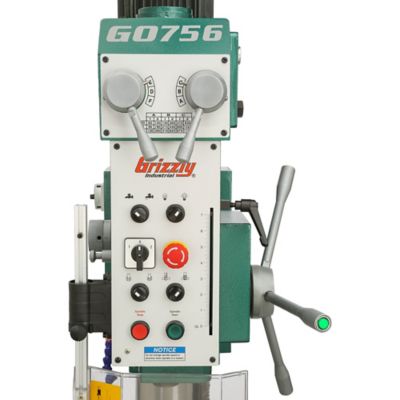

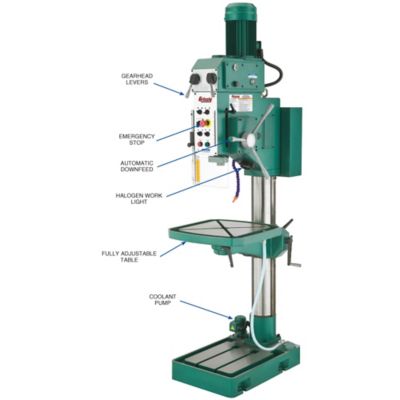

The G0756 27-1/2" Heavy-Duty Drilling Machine has a massive 6" column diameter providing the necessary rigidity to ensure repeatable accuracy-even when drilling 1-1/2" holes at high speeds! Geared drill presses are designed for drilling larger holes than belt driven machines. This machine has a 1-1/8 / 2 HP motor that provides the power for drilling and tapping. Another advantage is using convenient quick-change gearbox controls for managing spindle speed between 60 and 1740 RPM. The MT #4 spindle has 7" of travel, 2-speed automatic downfeed, power tapping with electronic clutch, an LED work light, and a tooling ejection feature for fast bit changes. This colossal workhorse also includes a built-in coolant system vital for drilling metal. It also comes with a packed toolbox to maintain your machine including an MT #4-MT #3 and MT #4-MT #2 spindle adapters, and 1/8"-5/8" drill chuck with arbor. The precision-ground cast-iron table is nearly 2" thick and features a 22" x 22" work surface, two 9/16" crossed T-slots, and coolant drainage troughs. The maximum spindle to table distance is 30-3/4" and the table rotates out of the way, so the workpiece can mount to the precision-ground base table, using its two 9/16" parallel T-slots.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
