Fimco 100 PSI High-Flo Pro Series Demand Pump, 2.2 GPM
Fimco 100 PSI High-Flo Pro Series Demand Pump, 2.2 GPM
Item # 1355564
$199.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
$199.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

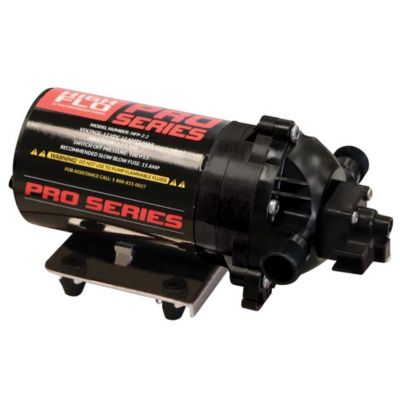

The Fimco 2.2 GPM 100 PSI High-Flo Pro Series Demand Pump sets the standard for professional-grade electric sprayer pumps. An integrated demand switch automatically shuts the pump off at 100 PSI maximum pressure. This sturdy 12V sprayer pump includes Viton valves and a Geolast diaphragm built to handle harsh and oil-based chemicals with surfactants. Combined with a heavy-duty motor and 1/2-in. male threaded ports, the Fimco High Flo Pro Series Pump is durable enough to run dry without damage and offers years of trouble-free service.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2.2 GPM electric sprayer demand pump with heavy-duty motor delivers commercial-grade performance
- Integrated demand switch automatically shuts the 12V sprayer pump off at 100 PSI maximum pressure
- Handles harsh chemicals and oil-based chemicals with surfactants
- Geolast diaphragm provides years of dependable use
- 1/2-in. MNPT Straight
- Viton valves
- Replaces pump part number 5151075
- Backed by a 1-year (consumer) and 90-day (commercial use) warranty
- Please note: Do not use the Fimco High Flo Pro Series Pump with flammable or combustible liquids
- Fluid max temperature: 170 degrees F
- Self priming
| Brand | Fimco |
|---|---|
| Country of Origin | Imported |
| Compatibility | Fimco, TSC Sprayers |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 1/2 in. |
| Maximum Flow Rate | 2.2 GPM |
| Maximum Operating Pressure | 100 PSI |
| Maximum Operating Temperature | 170 deg.F |
| OEM Replacement | 5151075 |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 4 in. |
| Product Length | 8-1/4 in. |
| Product Weight | 4 lb. 10.2 oz. |
| Product Width | 4-1/2 in. |
| Pump/Repair Product Type | Pumps |
| Warranty | 1 Year Consumer, 90 Day Commercial |
| Manufacturer Part Number | 5281325 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: I am spraying mesquite with a diesel and remedy mix and after a few tanks of spraying my pump is leaking badly where the battery contacts attach to the pump what do I need to do to stop that leak. Thanks my name is Frank
3 years ago1 Answer
- A: Hey Frank, Thanks for reaching out. Sorry your having an issue with your pump. Please call us for a quick trouble shooting session at: 800-831-0027 or visit their website at https://www.fimcoindustries.com/help/3 years agoHelpful?
Q: had to replace the pump (1.8 GPM/60PSI) on TSC sprayer.Replaced it with a High Flo Pro series (2.2/100PSI). Before i install it--want to know--How will the increase volume and PSI affect the sprayer? do i need to replace spray nozzels??
5 years ago1 Answer
- A: For assistance with this inquiry you would need to contact Fimco directly at 800-831-00275 years agoHelpful?
Q: Can this pump replace Flojet 99214033 12 volt 2.1 gal. 76 psi. For a fimco 25gal lawn sprayer
5 years ago1 Answer
- A: It replaces pump part number 5151075.5 years agoHelpful?
Q: Can this pump be used with 50/50 or less bleach solution?
5 years ago1 Answer
- A: No, do not use bleach with this product.5 years agoHelpful?
Q: CAN THIS PUMP BE USED TO SPRAY DIESEL ?
5 years ago1 Answer
- A: Hello, This sturdy 12 volt sprayer pump includes Viton valves and a Geolast diaphragm built to handle harsh and oil based chemicals with surfactants. Hope this helps! Thank you for your question!5 years agoHelpful?
Q: can the pressure be turned down on this pump
5 years ago1 Answer
- A: An integrated demand switch automatically shuts the pump off at 100 PSI maximum pressure.5 years agoHelpful?
Q: What is the power consumption of this pump? Amperage?
5 years ago1 Answer
- A: The amp average is 4AMP.5 years agoHelpful?
Q: Would this pump replace pump high flow gold series model 5275703. Thank You
6 years ago1 Answer
- A: Replaces pump part number 5151075.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: I am spraying mesquite with a diesel and remedy mix and after a few tanks of spraying my pump is leaking badly where the battery contacts attach to the pump what do I need to do to stop that leak. Thanks my name is Frank
3 years ago1 Answer
- A: Hey Frank, Thanks for reaching out. Sorry your having an issue with your pump. Please call us for a quick trouble shooting session at: 800-831-0027 or visit their website at https://www.fimcoindustries.com/help/3 years agoHelpful?
Q: had to replace the pump (1.8 GPM/60PSI) on TSC sprayer.Replaced it with a High Flo Pro series (2.2/100PSI). Before i install it--want to know--How will the increase volume and PSI affect the sprayer? do i need to replace spray nozzels??
5 years ago1 Answer
- A: For assistance with this inquiry you would need to contact Fimco directly at 800-831-00275 years agoHelpful?
Q: Can this pump replace Flojet 99214033 12 volt 2.1 gal. 76 psi. For a fimco 25gal lawn sprayer
5 years ago1 Answer
- A: It replaces pump part number 5151075.5 years agoHelpful?
Q: Can this pump be used with 50/50 or less bleach solution?
5 years ago1 Answer
- A: No, do not use bleach with this product.5 years agoHelpful?
Q: CAN THIS PUMP BE USED TO SPRAY DIESEL ?
5 years ago1 Answer
- A: Hello, This sturdy 12 volt sprayer pump includes Viton valves and a Geolast diaphragm built to handle harsh and oil based chemicals with surfactants. Hope this helps! Thank you for your question!5 years agoHelpful?
Q: can the pressure be turned down on this pump
5 years ago1 Answer
- A: An integrated demand switch automatically shuts the pump off at 100 PSI maximum pressure.5 years agoHelpful?
Q: What is the power consumption of this pump? Amperage?
5 years ago1 Answer
- A: The amp average is 4AMP.5 years agoHelpful?
Q: Would this pump replace pump high flow gold series model 5275703. Thank You
6 years ago1 Answer
- A: Replaces pump part number 5151075.5 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
Reviews
- maintenance
- satisfaction
- small
- spraying
- value
- purchase
- quality
- weight
1 to 4 of 94 Reviews .
1 – 4 of 94 Reviews
Most Recent
Oregon
Review 1
5 out of 5 stars.
Easy to replace
a year ago
Replaced original on our 40 gal boom sprayer. Easy to replace. Was in stock at our local store.
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the 2.2 GPM Pro Series pump from Tractor Supply. Glad you found it easy to replace your older pump and we hope that it handles all of your spraying needs.
Anonymous
McLean County IL
Review 1
2 out of 5 stars.
Beware! Scew on fittings instead of quick connect
2 years ago
I haven’t used this yet as the appropriate hose barb fittings were not included with the kit! I’m pretty let down by this.
SweepstakesYes
No, I do not recommend this product.
Response from Fimco Industries:
2 years ago
Fimco Industries
Cory, thank you for your purchase of the 2.2 GPM Pro Series pump from Tractor Supply. This pump does have threaded connections and there should have been a retrofit kit in the box, which would allow you to use the quick connect hose barbs that are used on our regular pumps. If that kit was not in your box, did the box look like it had been opened? Please contact our customer service team at 800-831-0027 if you're still needing the retrofit kit.
Sylvania Georgia
Reviews 6
5 out of 5 stars.
👍
2 years ago
Great little pump motor
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
2 years ago
Fimco Industries
Michael, thank you for your purchase of the 2.2 GPM Pro Series pump from Tractor Supply. We're glad that you're happy with your purchase and hope that it works great for all your spraying needs.
Anonymous
Texas
Reviews 2
1 out of 5 stars.
Rancher
2 years ago
Waste of money. Not reliable
No, I do not recommend this product.
Response from Fimco Industries:
2 years ago
Fimco Industries
Sam, sorry you have had an issue with this pump. Our 2.2 GPM Pro Series pump is a professional grade pump, not sure what the specifics are that you're having with the pump, but please contact our customer service team at 800-831-0027 and they will be more than happy to help you out.
