Fimco 45 gal. UTV Sprayer, 2.4 GPM Pump, Lever Spray Wand, Hitch Mount 3N Folding Boom
Online Only
Fimco 45 gal. UTV Sprayer, 2.4 GPM Pump, Lever Spray Wand, Hitch Mount 3N Folding Boom
Item # 2528746
$549.99
or
or
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Online Only
Fimco 45 gal. UTV Sprayer, 2.4 GPM Pump, Lever Spray Wand, Hitch Mount 3N Folding Boom
Item # 2528746
$549.99
or
or
$46/mo.† suggested payments with 12 Months Financing or earn $27 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

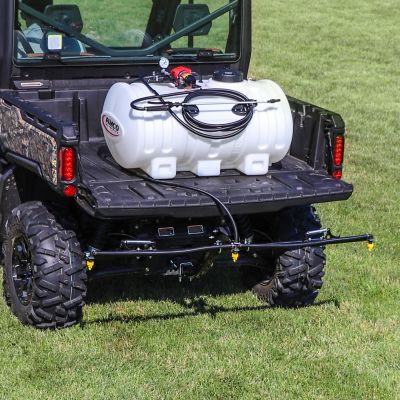

The FIMCO 45 Gallon Value UTV Sprayer 2.4 GPM Pump and 3 Nozzle Boom is designed to fit in the bed of a UTV and offers the versatility to spray tight spaces or larger areas. The UV resistant, molded polymer tank has a 5 inch tethered lid for easy access and is completely drainable. This model UTV sprayer features the High Flo High Performance 2.4 GPM 12 Volt Pump. The Lever Grip Spray Wand features an adjustable spray pattern poly tip which adjusts from a stream to cone and distributes up to 30 feet of horizontal spray, 16 feet of vertical spray and comes with 15 feet of 3/8 inch hose. The 3 Nozzle Folding Steel Boom mounts to a standard 2" receiver and offers 7.5 feet of total spray coverage with premium air induction AIXR tips that produce a flat spray pattern at a 110 degree angle to offer precise drift resistant application. FIMCO exclusive manifold places pressure control and boom operation at your fingertips to conveniently fine tune your spray pattern. This UTV sprayer is ideal for small pastures and rural applications.The 45 gallon lawn and garden sprayer allows accurate and easy application of lawn care products with the versatility and efficiency needed to spray tight areas, around buildings, fence lines, trees, bushes or other obstacles as well as open fields, pastures and ditches.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 15 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
- 2.4 GPM High Flo High Performance pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life
- 3 nozzle boom with TeeJet AIXR air induction tips covers 100 inch swath
- Durable 45 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
- Lever grip spray wand features an aluminum lance and an adjustable polymer nozzle that delivers 30 feet of horizontal spray and 16 feet of vertical spray
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 8 ft |
| Boom Nozzle Count | 3 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Weed Killer, Repellents, Fertilizer, Repellent, Insecticide, Fungicide |
| Features | Spray Wand Included |
| Hose Diameter | 0.375 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Freestanding |
| Power Type | 12 Volt |
| Product Height | 22 in. |
| Product Length | 38 in. |
| Product Weight | 45 lb. |
| Product Width | 23.75 in. |
| Pump Type | Diaphragm |
| Boom Width | 5 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303650 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Does the hitch mount to connect/elevate the boom come included? TY
14 days ago2 Answers
- A: Yes, absolutely! This model is sold as a complete kit, so the hitch mount assembly and the 3-nozzle folding boom are both included right out of the box. You will have everything needed to connect, mount, and elevate the boom on your UTV.13 days agoHelpful?
Q: The spray wand is leaking/dribbling from the nozzle while the trigger is released. Is there a repair kit I can order to replace the seals?
15 days ago1 Answer
- A: Dribbling or leaking from the nozzle while the trigger is released typically means small debris is trapped in the internal valve shut-off, or the internal seal has worn out. We do not offer a separate seal repair kit for the Standard Lever Spray Wand (#5163100). However, you can often fix this by cleaning out any trapped grit. If the internal seal is damaged, replacing it the spray wand with a new 5163100 Fimco Standard Lever Spray Wand is the best fix.13 days agoHelpful?
Q: Does the wiring harness come with the sprayer to hook up to the Utv??
6 months ago1 Answer
- A: Hello, thank you for your question. Yes, it comes with an 8 ft 12 V lead wire with on/off switch and alligator clips that you can connect directly to your battery.6 months agoHelpful?
Q: Dose the receiver hitch and bar that attaches to the boom come with this product? I don't see it the picture
Anonymous9 months ago1 Answer
- A: Yes, the receiver hitch does come with this sprayer. Due to the angle of the picture, it is hard to see, but it's there.9 months agoHelpful?
Q: Does this have a recirculating feature, which keeps the mixture consistent as you slowly work around?
a year ago2 Answers
- A: yes, you would use the bypass to recirculate back into the tank.a year agoHelpful?
Q: Say that I just want to spot spray. Is it possible to unhook the hitch boom with hose when not in use? If not, is there a quick connector which could be fitted?
a year ago1 Answer
- A: Yes, you can remove the hitch boom and disconnect from the manifold to spot spray, after you also turn the valve off on the manifold for the boom.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Does the hitch mount to connect/elevate the boom come included? TY
14 days ago2 Answers
- A: Yes, absolutely! This model is sold as a complete kit, so the hitch mount assembly and the 3-nozzle folding boom are both included right out of the box. You will have everything needed to connect, mount, and elevate the boom on your UTV.13 days agoHelpful?
Q: The spray wand is leaking/dribbling from the nozzle while the trigger is released. Is there a repair kit I can order to replace the seals?
15 days ago1 Answer
- A: Dribbling or leaking from the nozzle while the trigger is released typically means small debris is trapped in the internal valve shut-off, or the internal seal has worn out. We do not offer a separate seal repair kit for the Standard Lever Spray Wand (#5163100). However, you can often fix this by cleaning out any trapped grit. If the internal seal is damaged, replacing it the spray wand with a new 5163100 Fimco Standard Lever Spray Wand is the best fix.13 days agoHelpful?
Q: Does the wiring harness come with the sprayer to hook up to the Utv??
6 months ago1 Answer
- A: Hello, thank you for your question. Yes, it comes with an 8 ft 12 V lead wire with on/off switch and alligator clips that you can connect directly to your battery.6 months agoHelpful?
Q: Dose the receiver hitch and bar that attaches to the boom come with this product? I don't see it the picture
Anonymous9 months ago1 Answer
- A: Yes, the receiver hitch does come with this sprayer. Due to the angle of the picture, it is hard to see, but it's there.9 months agoHelpful?
Q: Does this have a recirculating feature, which keeps the mixture consistent as you slowly work around?
a year ago2 Answers
- A: yes, you would use the bypass to recirculate back into the tank.a year agoHelpful?
Q: Say that I just want to spot spray. Is it possible to unhook the hitch boom with hose when not in use? If not, is there a quick connector which could be fitted?
a year ago1 Answer
- A: Yes, you can remove the hitch boom and disconnect from the manifold to spot spray, after you also turn the valve off on the manifold for the boom.a year agoHelpful?
Similar Items
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Reviews
Customer Images and Videos
1 to 4 of 28 Reviews .
1 – 4 of 28 Reviews
Most Recent
Review 1
5 out of 5 stars.
Works Great
4 days ago
Works Great and fits my Side by Side Perfect.
SweepstakesYes
Response from Fimco Industries:
3 days ago
Fimco Industries
Thank you for the great review! We’re thrilled to hear that the 45-gallon UTV sprayer is working well and fits your side-by-side perfectly.
GreenBay Wi
Review 1
5 out of 5 stars.
Great machine
9 days ago
Great piece of equipment and works like it should
SweepstakesYes
Response from Fimco Industries:
9 days ago
Fimco Industries
Thank you for taking the time to leave a review! We're glad to hear your 45-gallon UTV sprayer is working like a charm and meeting your expectations. We appreciate your business and hope it makes quick work of all your spraying projects this season!
Anonymous
Dover, Ohio
Review 1
4 out of 5 stars.
Good for the price
3 months ago
Well made. Works great. My only concern is the plastic pressure gauge stem. Mine broke when the tank rolled over.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
3 months ago
Fimco Industries
Thank you for the review! We're glad to hear the sprayer is working great for you otherwise. Rollovers can definitely happen on tough terrain! While the gauge stem is designed to hold up to normal operating pressure, a rollover can put a lot of sudden stress on it. The good news is that we keep replacement pressure gauges readily available. Please reach out to our customer service team directly at 800-831-0027, and they'll be happy to assist you.
Iowa
Review 1
5 out of 5 stars.
Awesome sprayer!
3 months ago

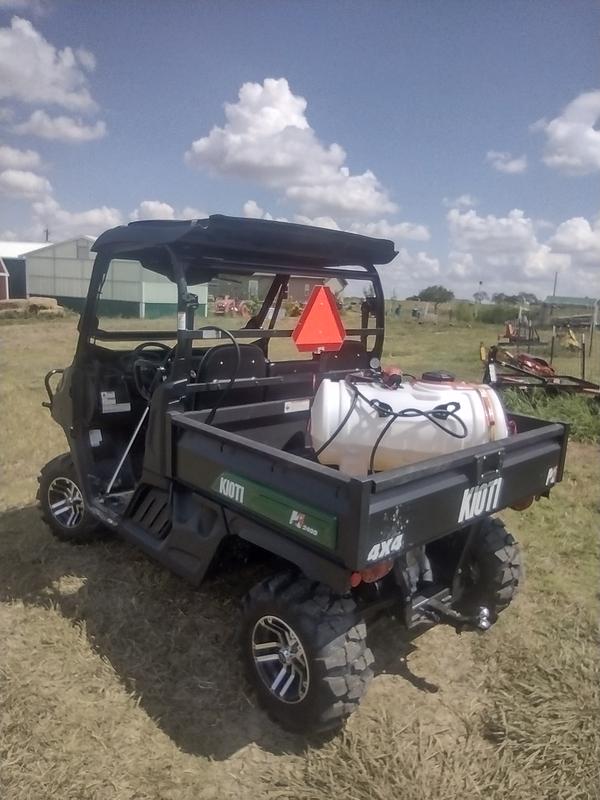

Well worth the money! Sprays a 4 acre property perfectly. Very happy with purchase. Only suggestion would be to have molded tie downs to secure tank to gator bed. With tank nearing empty, tank tends to slide around a bit. Excellent sprayer.
SweepstakesYes
Yes, I recommend this product.
