Field Tuff Universal Fast Hitch System
Field Tuff Universal Fast Hitch System
Item # 1011105
Stocked & Ready
$249.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
$249.99
or
or
$42/mo.† suggested payments with 6 Months Financing or earn $12 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

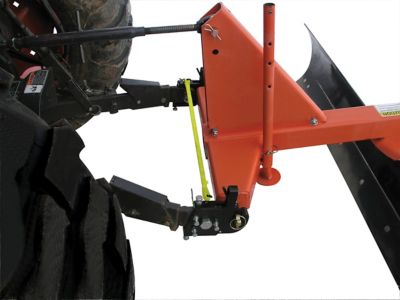

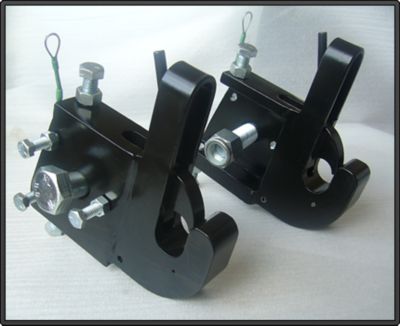

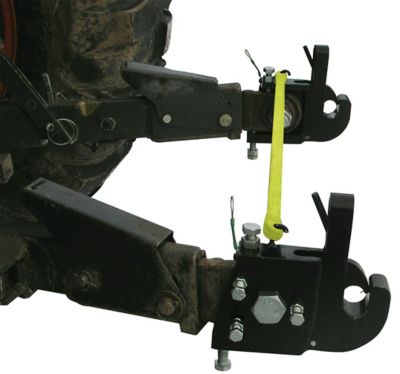

The Field Tuff Universal Fast Hitch System is the ideal way to quickly hook and unhook your 3-point implements. The hammered steel and powder coating protects the hitch accessory from the environment and heavy loads. The 3-point design is compatible with a large variety of accessories to help you easily install the hitch system. FTF-01FH
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 3-point hitch system fits both category 1 and category 2 hitches to allow fast hook up and unhooking of 3-point implements
- 3-point design easily attaches to the end of most lift arms
- Measures 9.05 in. x 7.85 in. x 4 in. and includes a green, tension strap to hold the swing arms together for your convenience
- Constructed of hammer-tone steel with a powder-coat finish that resists corrosion and adds durability
- Includes the complete hitch accessory for convenient installation
- Powder coat black finish offers a sleek appearance
- 12 months limited parts warranty
| Brand | Field Tuff |
|---|---|
| Country of Origin | Imported |
| Compatibility | Multiple |
| Features | None |
| Hitch Type | Category 1 |
| Lift Capacity | 3pt Hitch , category 1 or 2 |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 4 in. |
| Product Length | 9.05 in. |
| Product Weight | 20 lb. |
| Product Width | 7.85 in. |
| Tubing Shape | Other |
| Warranty | 12 Month Limited Parts warranty |
| Manufacturer Part Number | FTF-01FH |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Will cat 1 quick hitch hooks work on Kubota L4802 tractor
11 months ago1 Answer
- A: Hi Neighbor! Please contact the manufacturer.11 months agoHelpful?
Q: There is nothing here about the PTO. I assume the PTO still needs to be attached manually?
3 years ago1 Answer
- A: This is just a hitch system to help you hook and unhook 3pt implements. The hooking an unhooking is manual, not automatic.3 years agoHelpful?
Q: where can I get extra bushings so I can leave them on my implements?
5 years ago1 Answer
- A: Please call 218-943-6290 for parts and technical assistance. M-F 8-55 years agoHelpful?
Q: Do you have to use bushings even if your implements are cat 1
5 years ago1 Answer
- A: Please see the Instructions below. 1. Determine the category of hitch you have on your tractor. Fast Hitch includes bushings to adapt category 1 hitch arms. Fast Hitch includes bushings to adapt category 1 implements to category 2. 2. Attach the main body of the fast hitch to 3 pt. arms by using bolt # 4 and nut # 14 and tighten securely. 3. Center the hitch by using bolt # 10 on top and bolt # 15 on the bottom along with jamb nut # 11 and secure. Tighten jamb nut after adjustment. 4. Use 3 each of bolt # 2 and jamb nut # 3 for each side of the hitch assembly. Tighten the bolts against the hitch arm assembly so the Fast Hitch is tight against the 3 point arms. Tighten jamb nuts. 5. Hook strap # 20 to each side of the Fast Hitch to keep lift arms together. 6. Back up your tractor to the implement and lift the 3 point arms. The spring loaded toggle should trap the pins of your implement. Make sure you have the proper pin size for the Fast Hitch so there is no play between the pins and Fast Hitch opening. Bushings are supplied if you need to adapt to Category 2. Secure top link and you are ready to use your Fast Hitch. 7. Check to make sure bolts and jamb nut are tight after 15 minutes of use. After checking the first time, complete the same process every hour. 8. To unhook your implement, hook the cable lanyard to the rod from the spring loaded toggle. Unhook your top link and lower the 3 pt. arms. Drive away from your implement slowly.5 years agoHelpful?
Q: Is this compatible with kubota L3301
Anonymous5 years ago2 Answers
- A: Works great on my L3010 but it will more depend on your lift arms which theoretically could be a few different configurations. Still based on how universal these are they will almost certainly work.5 years agoHelpful?
Q: Will this work on my international 240 tractor cat 1hitvh
6 years ago1 Answer
- A: The Universal Fast Hitch is designed to turn a category 1 hitch into a 2 and 3 point hitch.6 years agoHelpful?
Q: how do you adjust the bolts when they will not fully hit on the arms? JD 955 they all only hit on less than half of the arm
7 years ago1 Answer
- A: This Fast Hitch is designed to be used on category 1 and 2 hitches, it also comes with long and short bushings to adapt to hitch arms if needed.7 years agoHelpful?
Q: can it be used with a 1942 ford 8n
8 years ago1 Answer
- A: The Universal Fast Hitch is designed to turn a category 1 hitch into a 2 and 3 point hitch.8 years agoHelpful?
Q: Will this work on a John Deere 1025r?
9 years ago1 Answer
- A: Yes, they should work for your Category 1 hitch.9 years agoHelpful?
Q: How about the third Link that hooks to the tractor , and the empliment . Do you have to work with the adjustable third Link manually ?
9 years ago1 Answer
- A: You do not have to mess with the third link at all.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Will cat 1 quick hitch hooks work on Kubota L4802 tractor
11 months ago1 Answer
- A: Hi Neighbor! Please contact the manufacturer.11 months agoHelpful?
Q: There is nothing here about the PTO. I assume the PTO still needs to be attached manually?
3 years ago1 Answer
- A: This is just a hitch system to help you hook and unhook 3pt implements. The hooking an unhooking is manual, not automatic.3 years agoHelpful?
Q: where can I get extra bushings so I can leave them on my implements?
5 years ago1 Answer
- A: Please call 218-943-6290 for parts and technical assistance. M-F 8-55 years agoHelpful?
Q: Do you have to use bushings even if your implements are cat 1
5 years ago1 Answer
- A: Please see the Instructions below. 1. Determine the category of hitch you have on your tractor. Fast Hitch includes bushings to adapt category 1 hitch arms. Fast Hitch includes bushings to adapt category 1 implements to category 2. 2. Attach the main body of the fast hitch to 3 pt. arms by using bolt # 4 and nut # 14 and tighten securely. 3. Center the hitch by using bolt # 10 on top and bolt # 15 on the bottom along with jamb nut # 11 and secure. Tighten jamb nut after adjustment. 4. Use 3 each of bolt # 2 and jamb nut # 3 for each side of the hitch assembly. Tighten the bolts against the hitch arm assembly so the Fast Hitch is tight against the 3 point arms. Tighten jamb nuts. 5. Hook strap # 20 to each side of the Fast Hitch to keep lift arms together. 6. Back up your tractor to the implement and lift the 3 point arms. The spring loaded toggle should trap the pins of your implement. Make sure you have the proper pin size for the Fast Hitch so there is no play between the pins and Fast Hitch opening. Bushings are supplied if you need to adapt to Category 2. Secure top link and you are ready to use your Fast Hitch. 7. Check to make sure bolts and jamb nut are tight after 15 minutes of use. After checking the first time, complete the same process every hour. 8. To unhook your implement, hook the cable lanyard to the rod from the spring loaded toggle. Unhook your top link and lower the 3 pt. arms. Drive away from your implement slowly.5 years agoHelpful?
Q: Is this compatible with kubota L3301
Anonymous5 years ago2 Answers
- A: Works great on my L3010 but it will more depend on your lift arms which theoretically could be a few different configurations. Still based on how universal these are they will almost certainly work.5 years agoHelpful?
Q: Will this work on my international 240 tractor cat 1hitvh
6 years ago1 Answer
- A: The Universal Fast Hitch is designed to turn a category 1 hitch into a 2 and 3 point hitch.6 years agoHelpful?
Q: how do you adjust the bolts when they will not fully hit on the arms? JD 955 they all only hit on less than half of the arm
7 years ago1 Answer
- A: This Fast Hitch is designed to be used on category 1 and 2 hitches, it also comes with long and short bushings to adapt to hitch arms if needed.7 years agoHelpful?
Q: can it be used with a 1942 ford 8n
8 years ago1 Answer
- A: The Universal Fast Hitch is designed to turn a category 1 hitch into a 2 and 3 point hitch.8 years agoHelpful?
Q: Will this work on a John Deere 1025r?
9 years ago1 Answer
- A: Yes, they should work for your Category 1 hitch.9 years agoHelpful?
Q: How about the third Link that hooks to the tractor , and the empliment . Do you have to work with the adjustable third Link manually ?
9 years ago1 Answer
- A: You do not have to mess with the third link at all.9 years agoHelpful?
Similar Items
-
-
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
Reviews
Summary of Reviews
The product has received mixed reviews. Some users found it to be a convenient time-saver, making it easier and faster to attach and detach 3-point implements. However, many others reported quality and compatibility issues, describing the product as flimsy and poorly designed, with parts breaking du...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
4 out of 5 stars.
Versatile Aftermarket Product
12 years ago
I bought this for my John Deere 3520 compact tractor with the intent of allowing an easier hook-up to my various mix of 3 point implements. Since I have no assitance on hitching to the implements, this system addition to my link arms allows for a quick connection to the lower link pins while I'm still sitting on the tractor! I only have to get off the tractor to connect my top link. The cheaper, non-adjust, quick 3-point hitch or JD i-match would not work for me b/c my implements have different spacing between the draw pull pins. This fast change hitch system has been working well for me due to my lower arms can still spread open/close to adjust to my different implements and to my surprise, they mount really rigid if properly installed (no slop). The only drawback is that is pushes the pick-up load point an additional 4" from the tractor frame which could be an issue if extremely heavy implements are used. Also, my tractor has telescoping adjustments w/ pins for my lower link arms, which works out well b/c this system comes with a rubber strap that "forces" the link arms closed so they do not move when backing up to an implement. I can set my pins to the correct distance while the rubber strap holds the lower links arms in position while I back up to the implement. This works well for my set-up but may be a little tricky if I had the chain adjustments for my lower link arms.
25 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
A strong attachment with the absolute worst design
12 years ago
I bought this today and it did not take long to find out it was not made for a standard lift bar. The width of the attachment is not wide enough for the bolts to engage the lift arm. After a couple hours of tweaking I finally got it installed. It worked as advertised on ease of attaching my Bush Hog. However in about 5 minutes of use it was dangling loose.
I am returning it tomorrow disappointed in not being able to use it. The designers of this device obviously did not do any testing.
22 people found this helpful
Show Reviews:
- purchase
- installation
- price
- returns
- satisfaction
- quality
- setup
- functional
1 to 4 of 157 Reviews .
1 – 4 of 157 Reviews
Most Recent
Grafton, Wv
Review 1
3 out of 5 stars.
To many adjustment parts
a year ago
Returning pruduct, This prduct has to many adjustment parts to make it work Hence ("Universal ")Do not feel safe and think it will cause more harm than good over time.
No, I do not recommend this product.
Arkansas
Reviews 2
1 out of 5 stars.
Unsafe
a year ago
These should not be on the market. These are not safe. Using 5 bolts to jamb these onto the arms defies physics. I put a 500lb mulcher on and on the first lift, the left side slipped off and bent the jamb bolts. I considered tapping the bolts into the arms so that the nuts could grab onto the arms like a set screw. However, first I wasn't willing to risk the integrity of my lower link arms and second, these probably need to move angle based on the attachment. DO NOT TRUST THESE.
No, I do not recommend this product.
Texas
Review 1
2 out of 5 stars.
Did not meet my expectations.
a year ago
I tried my best, but the fast hitch just isn’t stable. It kept slipping around.
SweepstakesYes
Central Louisiana
Reviews 5
1 out of 5 stars.
Do not purchase
a year ago
Bought this with high hopes. Was very hard to get installed correctly. Once installed it was still difficult to hook up. Used bushhog about 15 minutes and one of the bolts bent and caused it to twist. Damaged beyond use. Pure trash. Spend the extra and get a Pats quick hitch.
SweepstakesYes
No, I do not recommend this product.
