DuraVent 6 in. Diameter x 90-Degree Adjustable Elbow Double Wall
DuraVent 6 in. Diameter x 90-Degree Adjustable Elbow Double Wall
Item # 1299473
Stocked & Ready
$99.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
DuraVent 6 in. Diameter x 90-Degree Adjustable Elbow Double Wall
Item # 1299473
Stocked & Ready
$99.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The DuraVent 6 in. Diameter 90 Degree Adjustable Elbow Double Wall completes the venting system when used with one of DuraVent's chimney products such as DuraTech, DuraPlus, or DuraPlus HTC. The adjustable elbow double-wall, air-insulated design reduces clearances to combustibles from 18 in. to 6 in., the closest clearance to a wall of any connector pipe. This elbow double wall improves stove performance by maintaining high flue gas temperatures for a strong, steady draft.
- Elbow double wall required for manufactured home installations
- Adjustable lengths eliminate the need for cutting or crimping
- Stainless-steel inner walls allow flue to heat up faster, stay hot longer, minimize formation of creosote, and has same life expectancy as chimney
- Improves stove performance by maintaining high flue gas temperatures for strong and steady draft
- Double-wall and air-insulated design reduces clearances to combustibles from 18 in. to 6 in.
- Completes venting system when used with one of DuraVent's chimney products, such as DuraTech, DuraPlus, or DuraPlus HTC
| Brand | DuraVent |
|---|---|
| Country of Origin | Made in USA |
| Burner System | N/A |
| Cabinet or Housing Material | Stainless steel |
| Coverage Area | N/A |
| Features | None |
| Finish | Other |
| Fuel Flow Rate | N/A |
| Fuel Type | None |
| Heater Control | None |
| Heating Unit Type | N/A |
| Ignition Type | None |
| Indoor/Outdoor | Indoor and Outdoor |
| Intended Use Grade | Standard |
| Maximum BTU Heat Output | N/A |
| Mounting Location | Other |
| Number Of Heat Settings | N/A |
| Primary Material | Stainless Steel |
| Product Height | 9.81 in. |
| Product Length | 10 in. |
| Product Weight | 3.4 lb. |
| Product Width | 7.25 in. |
| Run Time | 0N/A |
| Manufacturer Part Number | 6DVL-E90 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Are the joints on the 90 fully able to rotate individually?the double walled 6” 90 degree stove pipe elbow, that is.
5 months ago1 Answer
- A: Hello, thank you for your question. The elbow can be adjusted during installation to set the angle, but the joints are not designed to rotate independently once assembled and secured. After positioning, the sections should be locked in place so the elbow maintains its shape and alignment.5 months agoHelpful?
Q: Does this have a black finish to match the Dura-Vent kit ?
a year ago1 Answer
- A: Hi, Yes, this does have a darker finish.a year agoHelpful?
Q: Is it interchangeable with Selkirk system
2 years ago1 Answer
- A: DVL stove pipe can be used in conjunction with Selkirk chimney, but is it is not compatible with Selkirk stove pipe.2 years agoHelpful?
Q: will double wall pipe match up with triple walll pipe?
2 years ago1 Answer
- A: Not directly, there must be a ceiling support box or wall thimble as the conversion piece. Please refer to the DuraPlus installation instructions located at www.duravent.com2 years agoHelpful?
Q: Will a double walled elbow attach to a triple wallpipe
3 years ago1 Answer
- A: Hi Nevis! Thank you for your question. Duraplus requires either a support box or wall thimble installed as we enter the room with the stove. All our adapter fit to the support box/wall thimble. Suggest a 6DVL-ADT for best adapter or a more simplistic 6DVL-ADC is included in our kits and available to order separately. Without the box or thimble installed cold air could return thru pipe into room so everything is made to join to them.3 years agoHelpful?
Q: Is there an adapter that would reduce the end down so that it can fit in the opening in the wall?
3 years ago1 Answer
- A: Hi Kingbullie, Thanks for your question. Here is what I received back from the vendor- 6dvl-adt or 6dvl-adc will extend the 6 Inch inner to attach to a chimney3 years agoHelpful?
Q: Does the angle on this pipe adjust by twisting?
4 years ago1 Answer
- A: Yes.4 years agoHelpful?
Q: Can this be used on a wood heater?
4 years ago1 Answer
- A: Our DVL Black stovepipe may be used indoors only on wood burning stoves. It should run from stove to ceiling or wall and then an insulated chimney such as the DuraPlus & DP Kits sold at TSS would travel to above the roofline.4 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Are the joints on the 90 fully able to rotate individually?the double walled 6” 90 degree stove pipe elbow, that is.
5 months ago1 Answer
- A: Hello, thank you for your question. The elbow can be adjusted during installation to set the angle, but the joints are not designed to rotate independently once assembled and secured. After positioning, the sections should be locked in place so the elbow maintains its shape and alignment.5 months agoHelpful?
Q: Does this have a black finish to match the Dura-Vent kit ?
a year ago1 Answer
- A: Hi, Yes, this does have a darker finish.a year agoHelpful?
Q: Is it interchangeable with Selkirk system
2 years ago1 Answer
- A: DVL stove pipe can be used in conjunction with Selkirk chimney, but is it is not compatible with Selkirk stove pipe.2 years agoHelpful?
Q: will double wall pipe match up with triple walll pipe?
2 years ago1 Answer
- A: Not directly, there must be a ceiling support box or wall thimble as the conversion piece. Please refer to the DuraPlus installation instructions located at www.duravent.com2 years agoHelpful?
Q: Will a double walled elbow attach to a triple wallpipe
3 years ago1 Answer
- A: Hi Nevis! Thank you for your question. Duraplus requires either a support box or wall thimble installed as we enter the room with the stove. All our adapter fit to the support box/wall thimble. Suggest a 6DVL-ADT for best adapter or a more simplistic 6DVL-ADC is included in our kits and available to order separately. Without the box or thimble installed cold air could return thru pipe into room so everything is made to join to them.3 years agoHelpful?
Q: Is there an adapter that would reduce the end down so that it can fit in the opening in the wall?
3 years ago1 Answer
- A: Hi Kingbullie, Thanks for your question. Here is what I received back from the vendor- 6dvl-adt or 6dvl-adc will extend the 6 Inch inner to attach to a chimney3 years agoHelpful?
Q: Does the angle on this pipe adjust by twisting?
4 years ago1 Answer
- A: Yes.4 years agoHelpful?
Q: Can this be used on a wood heater?
4 years ago1 Answer
- A: Our DVL Black stovepipe may be used indoors only on wood burning stoves. It should run from stove to ceiling or wall and then an insulated chimney such as the DuraPlus & DP Kits sold at TSS would travel to above the roofline.4 years agoHelpful?
Similar Items
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
Top Rated
Reviews
- satisfaction
- purchase
- ease of use
- product availability
- returns
- sturdy
- disappointing
- wood
1 to 4 of 37 Reviews .
1 – 4 of 37 Reviews
Most Recent
Hemphill, Texas
Reviews 2
5 out of 5 stars.

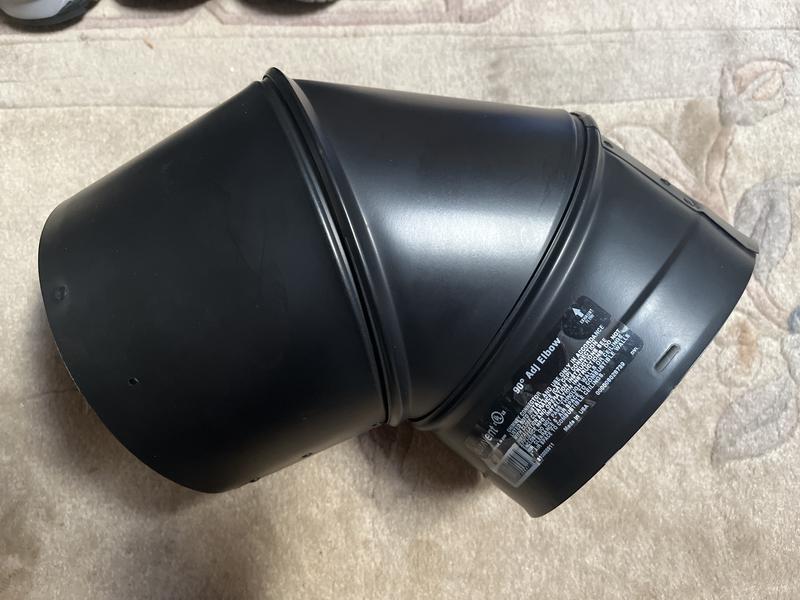

6 in. 90 degree elbow
a year ago
I purchased this 6 in. 90 degree Double Wall elbow, the price was the best when I compared to other companies. Well made and delivered to our hometown store. Great deal.
SweepstakesYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
Group E not C
a year ago
Lack of supplies in the store and lack of guidance. Disappointed and was going to return everything. It's been too long trying to hook up my stove.
Anonymous
Review 1
4 out of 5 stars.
Adjustable But Difficult to Achieve
a year ago
Dura-Vent vents seem to be well made and this ELL is difficult to adjust. I’ve tried every which way to spin the sections and finally came up with a way to accomplish it. Having a double wall certainly adds to the difficulty.
I found that if you place the ELL (elbow) with one of the open ends down on a carpeted floor and clamping the lower end with your feet (soft sneakers will avoid scratching the exterior) and twisting the desired upper section with both hands, you can manage to spin it a little at a time. It does take a bit of strength to do so though, & enlisting some additional help may be necessary.
SweepstakesYes
Maple Valley, WA
Review 1
2 out of 5 stars.
Hard to adjust
a year ago
Ended up returning as we could not get them to adjust. Very difficult to work with. Ended up buying two 45s that thankfully worked. But were also hard to adjust.
SweepstakesYes
