Cub Cadet 50 in. Maintenance-Free Lawn Mower Spindle Assembly Cub
Cub Cadet 50 in. Maintenance-Free Lawn Mower Spindle Assembly Cub
Item # 1738458
Stocked & Ready
$124.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Cub Cadet 50 in. Maintenance-Free Lawn Mower Spindle Assembly Cub
Item # 1738458
Stocked & Ready
$124.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

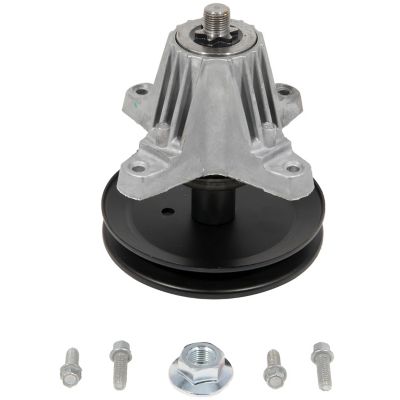

Spindles and pulleys work together to rotate the mower blades for an even cut. The triple-sealed maintenance-free bearing prevents impurities from entering the ball bearing. It does not require lubrication so the spindle is consistently working smoothly.For detailed installation instructions, please refer to your operator's manual
- Original equipment part for spindle assemblies starting with 918-06981 and 618-06981
- Spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks

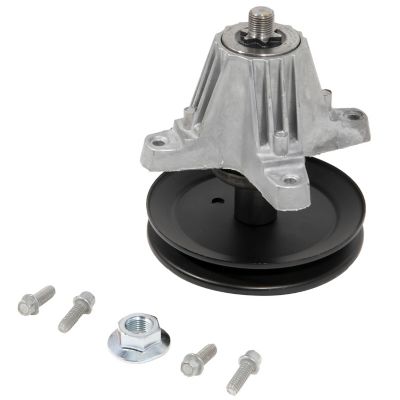

- Contents include (1) spindle assembly with pulley, (4) 710-06322 self-tapping screws and (1) 712-0417A blade nut
- 5.37 in. Dia pulley with protective coating to prevent rust with a 6 point star spindle shaft
- Maintenance-free spindle with triple sealed bearings helps your work go quickly, consistently and smoothly
- Factory tested and approved to provide the perfect fit, strength, durability and performance
- Designed by engineers using high-quality materials for superior strength and durability
- Refer to the parts list label under the rider hood for original equipment parts
| Brand | Cub Cadet |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Cub Cadet |
| Center Hole Diameter | 5.37 in. |
| Compatible Deck Size | 50 in. |
| Cutting Edge Location | Dual |
| Features | Spindles and pulleys work together to rotate the mower blades for an even cut. The triple sealed maintenance free bearing prevents impurities from entering the ball bearing |
| Model Compatibility | Spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks |
| Mower Blade Type | Other |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 7.5 in. |
| Product Length | 7.5 in. |
| Product Weight | 8 lb. |
| Product Width | 8.0 in. |
| Rolled Lift Type | Formed |
| Thickness | 0.3875 in. |
| Warranty | None |
| Manufacturer Part Number | 490-130-C016 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: does this fit a 2018 troy built super bronco w/ 50 inch deck?
10 months ago1 Answer
- A: Hello, thank you for your question. Per the vendor, "The original equipment spindles for the Super Bronco is part # 918-06981 (or its predecessor 618-06981). Bolt patterns and sizes should match this Troy Bilt unit perfectly."10 months agoHelpful?
Q: Will this fit a zero turn?
a year ago1 Answer
- A: Hello, thank you for your question. It is only designed to fit Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks.a year agoHelpful?
Q: My Cub cadet ZT1 50" high lift blade has an S center hole but the new blades have a star center hole. What needs to be done to make the star work?
a year ago1 Answer
- A: Hi, Here is the information we received from the vendor- "There are a set of blades with the “S” spindle pattern for the ZT1 50” deck – TSC item number 1612651 (our part number 490-110-C193). Replacing the spindles to the star pattern would not be as cost effective as pairing a new set of blades with the “S” pattern.”a year agoHelpful?
Q: Will this fit zero turn mowers?
a year ago1 Answer
- A: Hi, This assembly will fit the following: Spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decksa year agoHelpful?
Q: I have a LTX 1050 VT cub cadet 50”will this fit it
2 years ago1 Answer
- A: Model Compatibility: Spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks2 years agoHelpful?
Q: Will this fit a zt1 50 inch cub cadet
4 years ago1 Answer
- A: This spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks.4 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: does this fit a 2018 troy built super bronco w/ 50 inch deck?
10 months ago1 Answer
- A: Hello, thank you for your question. Per the vendor, "The original equipment spindles for the Super Bronco is part # 918-06981 (or its predecessor 618-06981). Bolt patterns and sizes should match this Troy Bilt unit perfectly."10 months agoHelpful?
Q: Will this fit a zero turn?
a year ago1 Answer
- A: Hello, thank you for your question. It is only designed to fit Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks.a year agoHelpful?
Q: My Cub cadet ZT1 50" high lift blade has an S center hole but the new blades have a star center hole. What needs to be done to make the star work?
a year ago1 Answer
- A: Hi, Here is the information we received from the vendor- "There are a set of blades with the “S” spindle pattern for the ZT1 50” deck – TSC item number 1612651 (our part number 490-110-C193). Replacing the spindles to the star pattern would not be as cost effective as pairing a new set of blades with the “S” pattern.”a year agoHelpful?
Q: Will this fit zero turn mowers?
a year ago1 Answer
- A: Hi, This assembly will fit the following: Spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decksa year agoHelpful?
Q: I have a LTX 1050 VT cub cadet 50”will this fit it
2 years ago1 Answer
- A: Model Compatibility: Spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks2 years agoHelpful?
Q: Will this fit a zt1 50 inch cub cadet
4 years ago1 Answer
- A: This spindle assembly with a 6-point star spindle shaft fits Cub Cadet XT1 and XT2 Enduro series lawn tractors with 50 in. cutting decks.4 years agoHelpful?
Similar Items
Reviews
- setup
- customer service
- cutting
- product availability
- purchase
- satisfaction
1 to 4 of 34 Reviews .
1 – 4 of 34 Reviews
Most Recent
Review 1
5 out of 5 stars.
Store stayed open a few minutes late for me
a year ago
Perfect fit / good service
Reviews 2
5 out of 5 stars.
Spindle assembly for 50 inch cub cadet
2 years ago
Easy to install works great
Yes, I recommend this product.
Reviews 3
5 out of 5 stars.
Perfect match
2 years ago
Worked great!!!
SweepstakesYes
Yes, I recommend this product.
Reviews 2
3 out of 5 stars.
Cub cadet part
3 years ago
It was thecwrong spindle. Returned it!
Sweepstakes EntryYes
No, I do not recommend this product.
