Cub Cadet 46 in. Spindle Assembly

SKU: 111685199
Cub Cadet 46 in. Spindle Assembly
Enter Zip Code for price More Info
Product price

Online Only Price
Save Up To
See price at checkout More Info
Product Rating is 4.1
4.1
 (35)

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 3 days.
This product may require up to 3 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

Keep equipment running smoothly with this Cub Cadet 46 in. Spindle Assembly.

  • Fits most Cub Cadet lawn tractors and RZT mowers with 46 in. decks, 2010 & after
  • For parts starting with 918-04865(_) / 618-04865(_)

Specification Description
Part Width: 7-1/4 in.
Brand: Cub Cadet
Package Quantity: 1
Part Length: 8 in.
Part Height: 7-3/4 in.
Manufacturer Part Number 490-130-C003
Cub Cadet 46 in. Spindle Assembly is rated 4.1 out of 5 by 35.
Rated 5 out of 5 by from Awesome Works perfect, less expensive than at cub cadet, and quicker. Very helpful Associate.
Date published: 2019-11-18
Rated 2 out of 5 by from Spindle mowing deck Part would have worked a lot better if it came the a nut for the spindle to attach the blade.I was lucky enough to figure out that the nut from the spindle was the same size, you may want to know why this was an issue is because during the installation of the new blade it got crosse threaded.
Date published: 2019-09-29

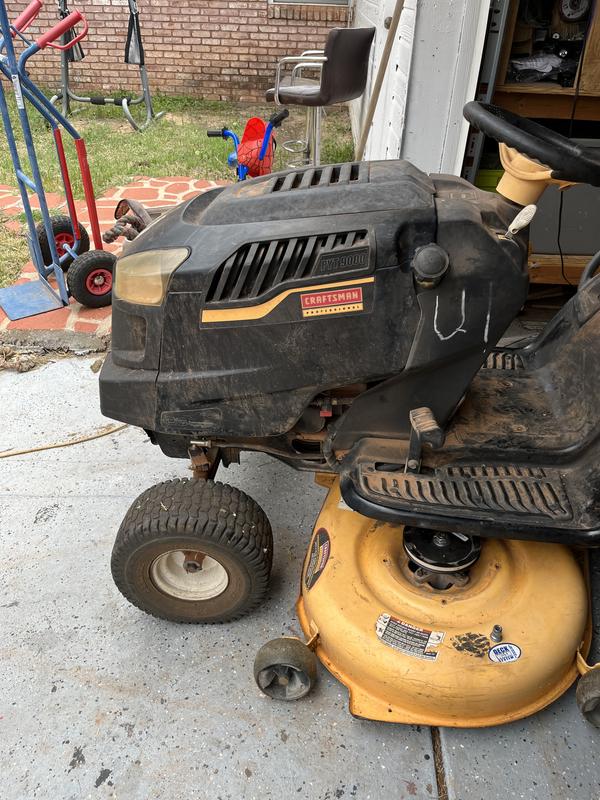

Rated 5 out of 5 by from Right Part Tractor Supply was the only local store where I could find this part. It is the correct part number part for a Craftsman Professional 46 inch deck.
Date published: 2019-09-27
Rated 5 out of 5 by from Tractor supply pulled through again Great salespeople and very knowledgeable team.!!!!
Date published: 2019-09-26
  • y_2020, m_1, d_19, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_16, tr_19
  • loc_en_US, sid_111685199, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

Need hex nut with flange that se cures blade for cub cadet ltx1045

Asked by: Jc stable
Hello Jc stable. The blade nut is part number 712-0417A. Thank you for your question.
Answered by: CubCadet
Date published: 2019-10-24

I have an XT1 LT46 that I bought last year, I was wondering if this would fit it as my manual gives a different part number (918-06977)

Asked by: Jhoglund
Hello Jhoglund. If your manual says you need spindle assembly part number 918-06977 then we suggest you use that specific part number only. The Cub Cadet 46 in. Spindle Assembly listed is not interchangeable with spindle assembly part number 918-06977. Thank you for your question.
Answered by: CubCadet
Date published: 2017-06-02

I have a LTX 1045 Hydrostatic Model Number 13WX91AT056 Will this Spindle Assembly work for my mower?

Asked by: Tango240
Hey Tango240, Yes this will fit your model (13WX91AT056). Thanks!
Answered by: CubCadet
Date published: 2018-06-12

does this assembly come with pully

Asked by: jj biscuit head
Yes it does. Actually, the picture on the package shows the assembly upside down. The black part at the bottom is the pulley. Thanks for the question.
Answered by: CubCadet
Date published: 2018-08-11

I have the LTX 1045 Hydrostatic Model Number 13WX91AT056 the DOM 04/2011. My manual says the part number for the spindle needed is 918-04636A. So my question is will this Spindle Assembly work for my mower?

Asked by: Tango240
Hello Tango240. The listed Spindle Assembly is compatible with your LTX1045 riding mower. Thank you for your question.
Answered by: CubCadet
Date published: 2019-05-01

do these oem cub cadet sealed spindles come with bearings packed with grease? i'd assume so since there is no grease fitting but just wanted to be sure before put into operation.

Asked by: Big Ed01
Hello Big Ed01. These spindle assemblies are delivered ready for installation and to be put into operation. Thank you for your question.
Answered by: CubCadet
Date published: 2019-09-12

Is this compatible with p/n 918-05078?

Asked by: Lib2018
If you mean can you replace a 918-05078 with a 918-04865, no. They are not the same or compatible. Thanks for the question.
Answered by: CubCadet
Date published: 2018-08-03

what cub cadet swindle is compatiable w 918-05078A (618-050780

Asked by: aeb01
Hello Aeb01. You will need to resubmit your question when you have the full model and serial numbers from under the seat of the mower. Thank you.
Answered by: CubCadet
Date published: 2019-07-16
