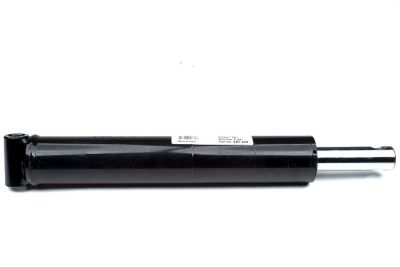

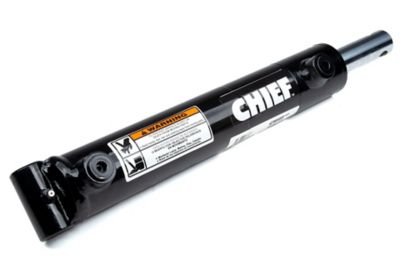

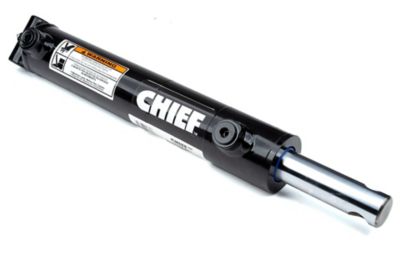

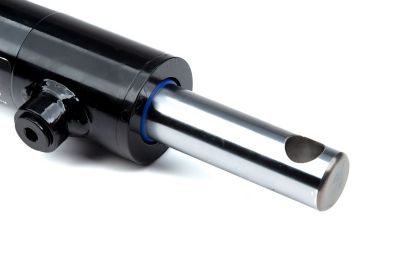

Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1.25 in. Rod Diameter, 3,000 PSI
Online Only
Item # 1307653
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1307653
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 2 in. Bore x 32 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment, you can trust this hydraulic cylinder. SAE 8 O-ring ports means easy hookup, and the cylinder comes functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
- Welded hydraulic cylinder ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
- SAE 8 O-ring ports for easy hookup
- For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
- All seals are manufactured to US specifications
- 3-year limited warranty
- Piston: ductile iron with wear ring
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision honed steel
- Rod: hard chrome plated
- Base end mount: steel cross-tube with grease zerk
- Tube seal: Buna O-ring with Polytemp hytrel backup
- Rod wiper: Urethane, snap-in
- Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
- Individually poly bagged for ease of transport
- 3,000 PSI operating range
- Measures 40 in. retracted and 72 in. extended
- Column load: 4,990 lb.
- Rod seal: deep polypak with B lip design
- Pin diameter of 0.75 in. and rod diameter of 1.25 in.
- Rod end mount: rod eye drilled
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 72 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 4,990 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 0-3/4 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.5 in. |
| Product Length | 8 in. |
| Product Weight | 29.76 lb. |
| Product Width | 1.25 in. |
| Retracted Length | 40 in. |
| Rod Diameter | 1-1/4 in. |
| Stroke Distance | 32 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 287218 |
