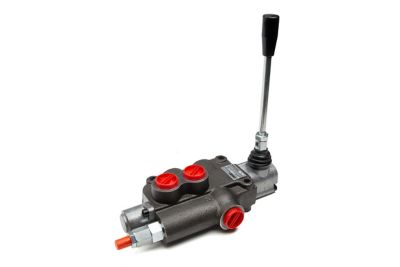

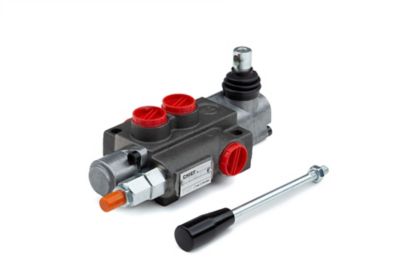

Chief 3,625 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/SAE 12 Outlet
Chief 3,625 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/SAE 12 Outlet
Item # 130735199
$179.99
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Chief 3,625 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/SAE 12 Outlet
Item # 130735199
$179.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Chief 3,625 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. Create the perfect setup with help from a Chief hydraulic valve today.Note: This product may require up to 2 additional days for order processing prior to shipping
- Directional control valve features cast iron construction for durability
- Anti-drop load check on each spool for safe operation
- Hydraulic control valve features adjustable relief up to 3,625 PSI
- Complete handle assembly included with the hydraulic valve
- Power beyond or closed center available
- See accessories for power beyond plug or closed center conversion plug
- This Chief hydraulic directional control valve is equipped with a single spool
- European design with 21 GPM, SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
- Valving: 4-way, 3-position motor center
- Action: 3-position spring center
- Max operating temperature: 176 degrees F
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | SAE 10 |
| Inlet Type | Female |
| Maximum Flow Rate | 21 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| OEM Replacement | Control valve |
| Outlet Size | SAE 12 |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 8.58 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 10 |
| Manufacturer Part Number | 220954 |
