Blazer LED Submersible Square Trailer Light Kit for Trailers Under 80 in. Wide, Pack of 2

SKU # 168317899
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
Product Rating is 3.9

Financing Available! Click here for more details...



Pickup In Store

This item will ship within 0 days.

Delivery Options for

This item will ship within 0 days.

Item Information

The Blazer LED Submersible Square Trailer Light Kit is designed to meet DOT requirements for trailers under 80 in. wide. This kit is not only ideal for boat trailers, but for any utility, camping, snowmobile, and motorcycle trailer where LED lights are desired. The life of an LED trailer light far exceeds traditional incandescent trailer lights lasting up to 100,000 hours and no bulb changes. The lens is sonically sealed to provide protection from moisture and corrosion. Additionally, all electronics are potted with water-resistant resin for a second layer of defense. The 12V stop/tail/turn lights feature universal back and side mount options. Lights are individually replaceable with Blazer model numbers C7483RTM and C7493RTM.

  • For trailers under 80 in. wide
  • Submersible- lens and housing are sonically sealed
  • Epoxy sealed electronics resist moisture and corrosion
  • Dual mounting option - mount on the back or the side of the light housing
  • Works with 12V systems

    Kit includes:
  • (2) stop/tail/turn lights
  • 20 ft. wire harness with 4-flat connector
  • Corrosion-resistant license plate bracket
  • Mounting hardware and trilingual instructions
  • Everything needed for easy installation and DOT compliance

Specification Description
Brand: Blazer International
Bulb Type: LED
Light Color: Red
Mount Method: Screw Mount
PC Rated: Not PC Rated
Product Height: 4-3/4 in.
Product Length: 1-1/2 in.
Product Weight: 0.6 lb.
Product Width: 5 in.
Shape: Square
Warranty: Limited
Product Type: Light Sets
Power Type: 12 Volt
Mount Position: Surface Mount
Manufacturer Part Number C7423
Blazer LED Submersible Square Trailer Light Kit for Trailers Under 80 in. Wide, Pack of 2 is rated 3.9 out of 5 by 10.
Rated 3 out of 5 by from Short wiring harness I bought an old trailer, 16'. It had had the lights ripped off of it. I bought these lights today at Tractor Supply and came home to find that the wiring harness is exactly 20
Date published: 2019-01-22
Rated 1 out of 5 by from TRALIER LIGHTS ARE STILL INTERMITTENT I've installed these lights properly, have sound and good continuity between the wiring and the stub ends of the lights. I have two grounds, one at the rear light white wire and one on the tongue of the trailer using newly tapped holes and screws. The LED circuit board on the passenger side is intermittent, works only when I tap on it! Ah its back to worrying about getting a ticket for improper lighting. I am not a satisfied customer.
Date published: 2018-06-01

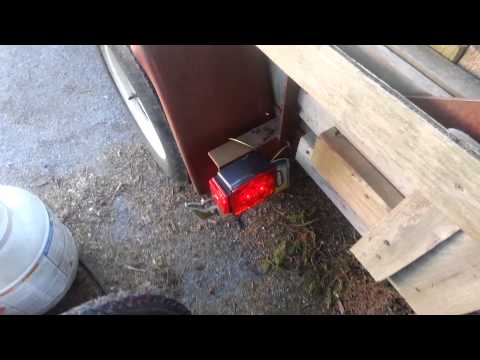

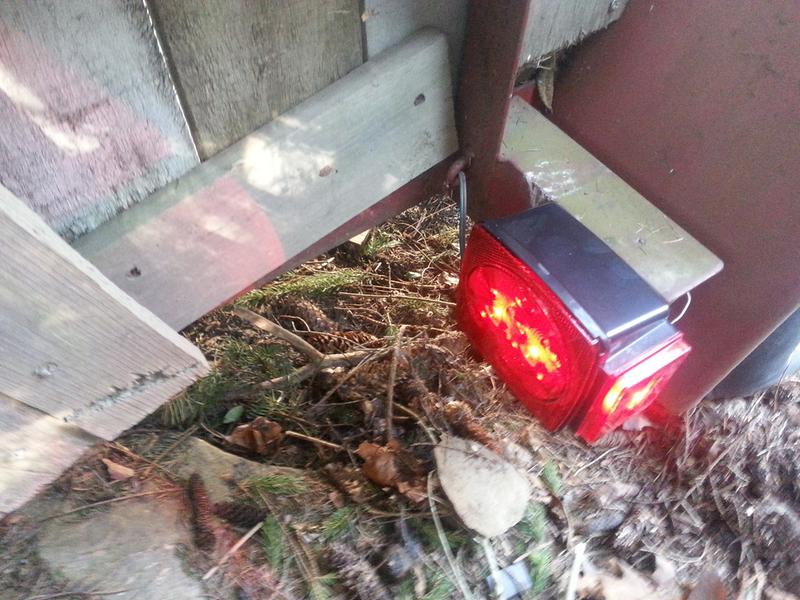

Rated 5 out of 5 by from simple install I got tired of messing with my old incandsent trailer lights every year, laying with the bulbs to get them to work. I purchased these lights. Installing them was simple. I used the existing wiring and the lights fit perfectly in the old light mounting holes. They are twice as bright as my old lights. I couldn't be happier with these and have already recommended that to friends
Date published: 2017-06-30

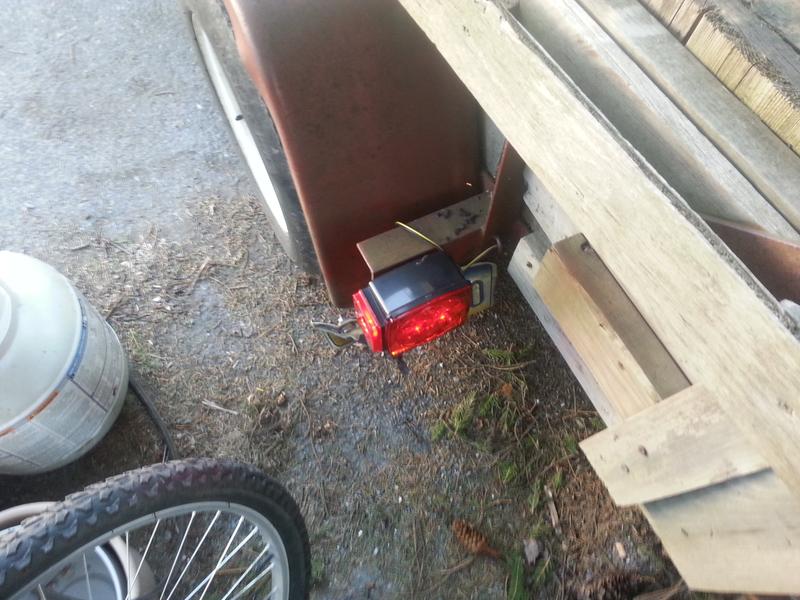

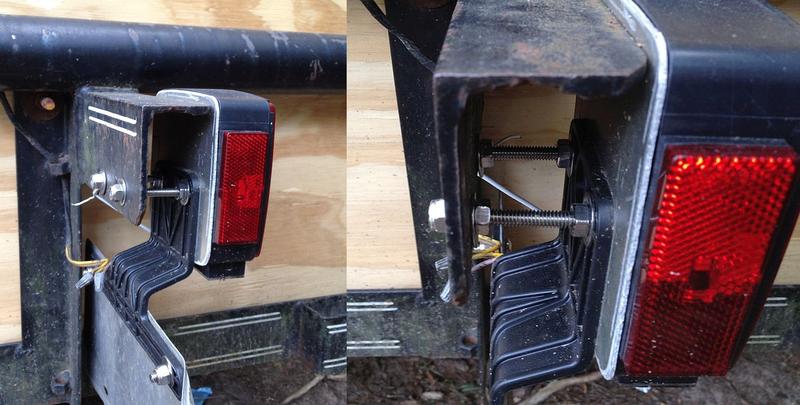

Rated 4 out of 5 by from Waterproof LED but.... Bought these to replace some standard taillights on a 10 year old trailer. The problem is they are taller, wider and thinner than the originals and did not fit in the mount holes under the angle iron on the trailer. The easiest solution was to go the closest hardware store and get some 3" stainless steel (no rust) carriage bolts (since the back of the new lights accept that type) stop nuts and washers (SS also 3 per bolt 1 to attach it to the light, 1 as a stop and a nylon nut to attach to the steel see photo) to clear the angle as the lights sat a good 1/2" above the steel angle which was a 2" x 2". Worked great and made it so you could adjust the light angle. I also made a custom back-plate out of an old sign I had to keep it clean and sturdy.
Date published: 2017-06-17
  • y_2019, m_2, d_15, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_10
  • loc_en_US, sid_168317899, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms

Does this product have an electrical plu that connects to a truck outlet?

Asked by: Donna66
Answered by: Gano
Date published: 2018-06-18
