AIMS Power 60W Monocrystalline Portable Foldable Solar Panel with Carrying Case

SKU # 131949499
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

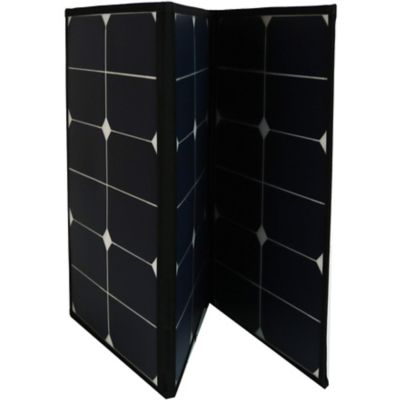

Featuring the AIMS Power 60W Monocrystalline Portable Foldable Solar Panel, made with high quality monocrystalline solar cells and a water resistant rugged case. This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage. Ideal for charging and maintaining batteries. On the front of the carrying case, there is a zipper pocket to store a small charge controller. The foldable panel also includes a built-in 6 foot charge controller wire allowing for quick connection to various size charge controllers. The carrying case is water resistant, includes a comfortable rubber handle and secures using side release plastic buckles. Backed by a 10 year warranty, this portable solar panel is a must for every remote application needing power. Easy to move between vehicles.

  • Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest

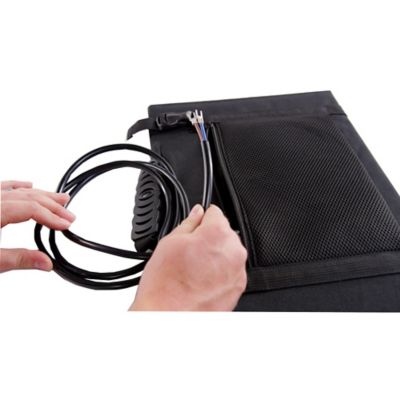

  • Built-in solar charge controller cable 6 ft.
  • Ideal for curved and uneven surfaces
  • RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
  • Portable and easily adjusts to the optimum sunlight angle
  • Accordion style fold up case
  • Weather resistant
  • Appropriate for outdoor use

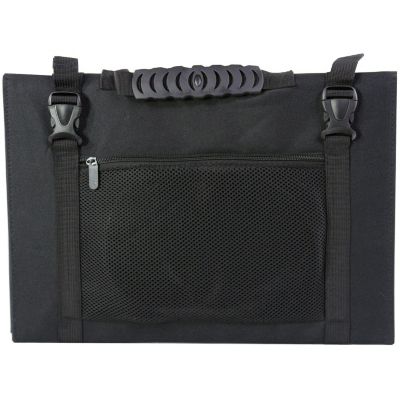

  • Durable and rugged case with convenient side zipper pocket to store wires and charge controller
  • Lightweight and super thin allowing for easy storage and set up
  • Bypass diode minimizes the power drop when shaded
  • Modules are independently tested to ensure conformance with certification and regulatory standards
  • Manufacturing facility certified to ISO 9001 quality management system standards
  • Panels capable of +/- 3% power efficiency than rated
  • 5 year warranty, 10 year 80% output.
  • High performance: light transmittance up to 93%
  • Cell Efficiency: 22.3% (one of the highest)
  • Module Efficiency: 19.2% (one of the highest)
  • Maximum Power: 60W
  • Tolerance Wattage (e.g.) +/- 5%): +/- 3W
  • Maximum System Voltage: 600V DC (UL)
  • Max Power Voltage (Vmp): 19.8 V
  • Max Power
  • Current (Imp): 3 A
  • Open-Circuit Voltage (Voc): 23.7 V
  • Short-Circuit Current (Isc): 3.6 A
  • Maximum Fuse Rating: 10 A
  • Fire Safety Class: Class A
  • Temperature Range: -40°F to 185°F
  • Number of cells: 2 in. x 6 in. x 3
  • Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers
  • Temperature Coefficients °C:
  • ISC (%): +2.6
  • Voc (%): -50.6
  • Prm (%): -.38
  • Im (%): +2.2
  • Vm (%): -60.8, dimensions: Expanded 33 in. x 15.8 in. x 0.20 in.; folded: 11.22 in. x 15.85 in. x .6 in.
  • Weight: 2.85 lb.
  • Certifications: CE, ETL, TUV and RoHS
  • Case: Water resistant
  • Durable rubber handle
  • Easy side slide buckles
  • Convenient size zipper pocket for wires and charge controller storage

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Product Type: Solar Panels
Wire Type: PV
Width: 11-3/16 in.
Power Rating: 60 W
Included: 1 Portable Panel
Wattage Rating: 60 W
Power Source: Solar
Connector Type: cut end or spade lug
Length: 15-7/8 in.
Wire Size: 10 AWG
Amperage: .5 AC/ 5 DC
Height: 1/8 in.
Warranty: 10 Years
Application: Solar Charging for Batteries
Power Type: Solar
Brand: AIMS Power
Quantity Per Pack: 1
Current Rating: 60 W
Manufacturer Part Number PV60CASE
