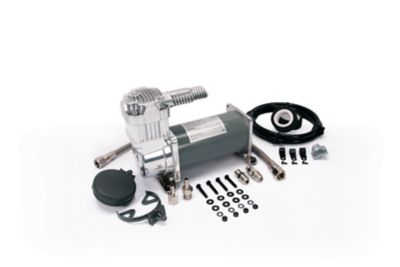

The Viair - 330C 24V IG Series Compressor Kit specifically designed to fill air reservoir tanks and features a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 150 PSI / 1.16 CFM
- 24-volt IG series compressor kit
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 gal.
- Max. 24V Amp Draw: 9 Amps
- Designed to fill air reservoir tanks
- Head assembly of compressor kit includes a newly-developed head design for better heat dissipation
- IG series compressor kit is certified CE spec.
- Sealing properties offer protection from the elements
- Separate stainless steel braided PTFE-lined leader hose included
- Check valve assembly protects the compressor kit against high amperage restarts
- Thermal Overload Protector
- Vibration Isolators
- Mounting Hardware
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- Two Replacement Air Filter Elements
- Installation Instructions
- Permanent Magnetic Motor
- Ingress Protection Rating: IP67
- Max. Ambient Temp: +158 deg F
- Min. Ambient Temp: -40 deg F
- Dimensions: 9 in. L x 4 in. W x 6.75 in. H
- Net Weight: 8.25 lb.
