TMB 3 hp V-Type Twin Cylinder Air Compressor Pump 115PSI
New Arrival
Item # 610572999
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

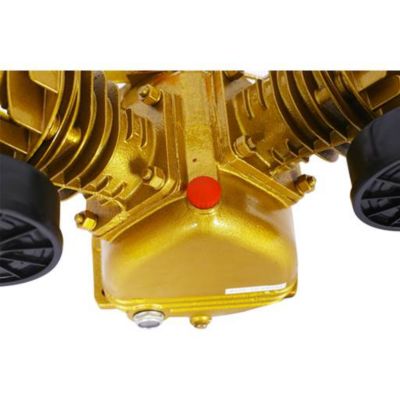

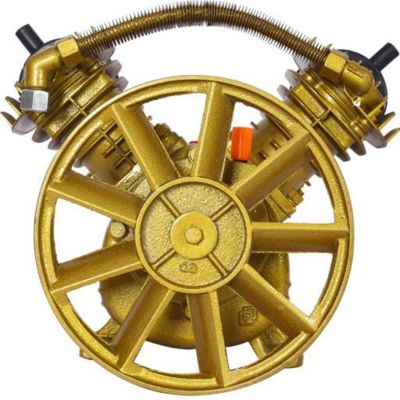

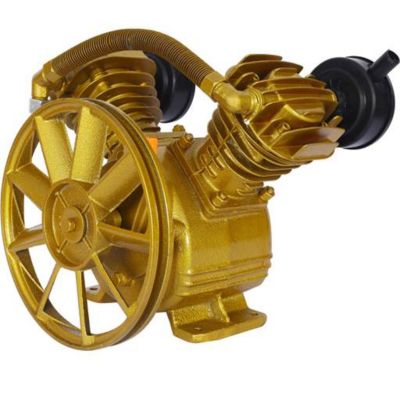

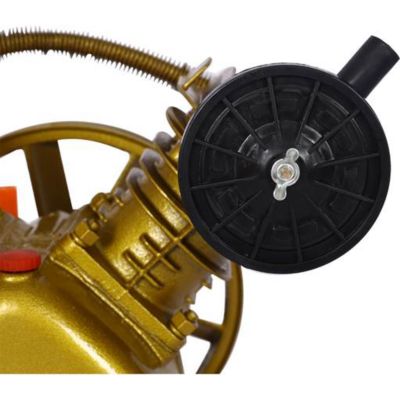

The BAC-W46541457 3HP (2.2KW) Air Compressor Pump Head delivers reliable and efficient performance, operating on 120V at 1050RPM to produce up to 8.8CFM at 115 PSI. Built with a durable cast iron crankcase and cylinder body, it offers excellent strength, wear resistance, and long life, with a net weight of 32.6 lbs. for stable operation. The V-type twin cylinder, dual piston design improves airflow and cooling efficiency, while high-quality valve steel components provide superior strength and toughness under high-temperature conditions. Its belt-driven piston system ensures smooth, operation with low-noise and consistent compression, supported by strong cooling blades for effective heat dissipation during long use. Designed for versatility, this compressor pump head is ideal for applications in chemical processing, machinery, construction, and scientific research, delivering dependable, high-quality compressed air.
- EFFICIENT 3HP PERFORMANCE - 3HP (2.2KW) motor, 120V, 1050RPM, delivering up to 8.8CFM at 115 PSI for consistent, reliable air compression.
- HEAVY-DUTY CAST IRON BUILD - Durable cast iron crankcase and cylinder for long-lasting strength and wear resistance with a net weight of 32.6 lbs. for stable operation.
- V-TYPE TWIN CYLINDER DESIGN - Dual piston, V-style configuration enhances airflow and cooling for improved efficiency and extended life.
- HIGH-TEMPERATURE VALVE STEEL - Premium valve components provide excellent strength and toughness, for high performance under tough conditions.
- SMOOTH & LOW-NOISE OPERATION - Belt-driven piston design ensures steady compression with reduced vibration and quieter operation.
- ENHANCED COOLING SYSTEM - Equipped with cooling blades and optimized airflow for efficient heat dissipation during continuous use.
- VERSATILE APPLICATIONS - Ideal for chemical, machinery, construction, and scientific uses requiring high-quality compressed air.
- 12 months limited parts warranty
| Brand | TMB |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 8.8 CFM |
| Air Outlet Size | 0.625 in. |
| Amperage | 0 NA |
| Compressor Horsepower | 3 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 115 PSI |
| Compressor Tank Capacity | No Tank |
| Compressor Voltage | 120V |
| Drain System | NA |
| Drive Type | Belt |
| Features | Dual piston, V-style configuration enhances airflow and cooling for improved efficiency and extended life. Premium valve components provide excellent strength and toughness, for high performance under tough conditions. |
| Number Of Power Speeds | Single |
| Power Type | None |
| Primary Color | Gold |
| Primary Material | Cast Iron |
| Product Height | 11.8 in. |
| Product Length | 14.2 in. |
| Product Weight | 32.6 lb. |
| Product Width | 6.7 in. |
| Pump Material | Steel |
| Tank Style | Tankless |
| Warranty | 12 months limited parts |
| Manufacturer Part Number | BAC-W46541457 |
Q: Does the TMB 3 hp V-Type Twin Cylinder Air Compressor Pump 115PSI come with motor or not.
a month ago- A: Hi Buckoo, No, this product is an air compressor pump head and does not include a motor. It is designed to be belt-driven by a 3HP (2.2KW) motor.a month agoHelpful?
Q&As
Q: Does the TMB 3 hp V-Type Twin Cylinder Air Compressor Pump 115PSI come with motor or not.
a month ago- A: Hi Buckoo, No, this product is an air compressor pump head and does not include a motor. It is designed to be belt-driven by a 3HP (2.2KW) motor.a month agoHelpful?
