Chief 12VDC Electro-Hydraulic Third Function Tractor Kit
Online Only
Chief 12VDC Electro-Hydraulic Third Function Tractor Kit
Item # 1935579
$499.99
or
or
Neighbor’s Club Members earn points with purchases.
$499.99
or
or
$42/mo.† suggested payments with 12 Months Financing or earn $24 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

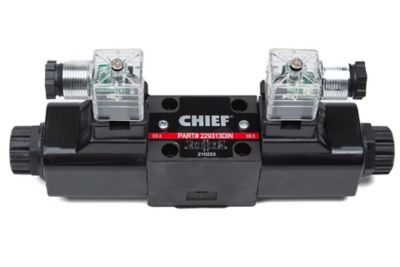

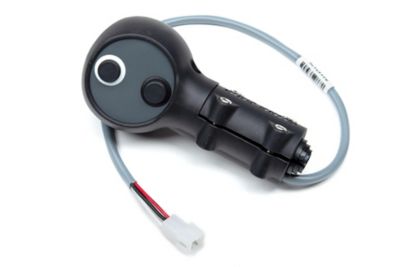

A third function kit is used to add functionality to a front or rear mounted skid-steer style attachment, such as a backhoe, grapple, auger, forks, broom, or blade. It adds functionality by utilizing the existing power beyond function on your tractor's valving. This kit comes with a D03 solenoid valve, manifold, and mounting plate, as well as the diodes, wiring harness, Sure Grip AU series control handle, and quick-connect hose adapters. This kit includes installation and wiring information, but does not include hoses.
- Add functionality to a front or rear mounted skid-steer style attachment, such as a backhoe, grapple, auger, forks, broom, or blade.
- Comes with a D03 solenoid valve, manifold, and mounting plate, as well as the diodes, wiring harness, Sure Grip AU series control handle, and quick-connect hose adapters.
- Hoses not included.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements. - Enhances functionality by using the existing power beyond function on your tractor's valving
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 N/A |
| Compatibility | Universal |
| Hertz | 0 N/A |
| Horsepower | 3,600 PSI |
| Maximum RPM | 0 N/A |
| Minimum RPM | 12 GPM |
| Frame Type | 0 N/A |
| Phase | Single |
| Mounting Type | Other |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 13.32 lb. |
| Product Width | 0 N/A |
| Rotation Direction | No Rotation |
| Shank Diameter | 0 N/A |
| Stage Type | N/A |
| Voltage | 12 V DC |
| Warranty | No Warranty |
| Manufacturer Part Number | TSC KIT-TFK3T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: My Tractor (New Holland TC30) hydro flow is 15GPM, based on product specifications if should work; however response to some questions below indicate it will not work given flow rate. Please clarify?
3 months ago1 Answer
- A: Hello, thank you for your question. Please reach out to Chief directly for assistance with this specific inquiry. ***CHIEF*** https://www.baileyhydraulics.com/contact-us/ 800-800-1810 | 8:00 am - 5:30 pm EST (M-F)3 months agoHelpful?
Q: With this operate a bushhog?
10 months ago1 Answer
- A: This can run the attachment as long as the pump flow from the tractor it is attached to stays within our product standards of under 13 GPM.9 months agoHelpful?
Q: will this fit my John Deere 553 loader on a John Deere 5075E tractor with no cab?
a year ago1 Answer
- A: Hi, Here is the information we received from our vendor- " Unfortunately it will not work for him, Our third function kit maxes out at 8 GPM and his tractor has 11.4 GPM."a year agoHelpful?
Q: Are the photos of the red tractor an MF 1725?
2 years ago1 Answer
- A: Compatibility Most application2 years agoHelpful?
Q: Where do you get the hoses?
2 years ago1 Answer
- A: We do not sell hoses by this manufacturer, but a quick search for "hydraulic hoses" on our web page brought up these results: https://www.tractorsupply.com/tsc/catalog/hydraulic-hoses?&srch=hydraulic%20hose2 years agoHelpful?
Q: Will this work on a Cub cadet yanmar ex 3200
3 years ago1 Answer
- A: This is a universal product so it should work, please follow the installation guide and reach out to the manufacturer for any questions about installation.3 years agoHelpful?
Q: Will this work on Mahindra tractor for grapple
3 years ago1 Answer
- A: This is a universal product so it should work, please follow the installation guide and reach out to the manufacturer for any questions about installation.3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: My Tractor (New Holland TC30) hydro flow is 15GPM, based on product specifications if should work; however response to some questions below indicate it will not work given flow rate. Please clarify?
3 months ago1 Answer
- A: Hello, thank you for your question. Please reach out to Chief directly for assistance with this specific inquiry. ***CHIEF*** https://www.baileyhydraulics.com/contact-us/ 800-800-1810 | 8:00 am - 5:30 pm EST (M-F)3 months agoHelpful?
Q: With this operate a bushhog?
10 months ago1 Answer
- A: This can run the attachment as long as the pump flow from the tractor it is attached to stays within our product standards of under 13 GPM.9 months agoHelpful?
Q: will this fit my John Deere 553 loader on a John Deere 5075E tractor with no cab?
a year ago1 Answer
- A: Hi, Here is the information we received from our vendor- " Unfortunately it will not work for him, Our third function kit maxes out at 8 GPM and his tractor has 11.4 GPM."a year agoHelpful?
Q: Are the photos of the red tractor an MF 1725?
2 years ago1 Answer
- A: Compatibility Most application2 years agoHelpful?
Q: Where do you get the hoses?
2 years ago1 Answer
- A: We do not sell hoses by this manufacturer, but a quick search for "hydraulic hoses" on our web page brought up these results: https://www.tractorsupply.com/tsc/catalog/hydraulic-hoses?&srch=hydraulic%20hose2 years agoHelpful?
Q: Will this work on a Cub cadet yanmar ex 3200
3 years ago1 Answer
- A: This is a universal product so it should work, please follow the installation guide and reach out to the manufacturer for any questions about installation.3 years agoHelpful?
Q: Will this work on Mahindra tractor for grapple
3 years ago1 Answer
- A: This is a universal product so it should work, please follow the installation guide and reach out to the manufacturer for any questions about installation.3 years agoHelpful?
