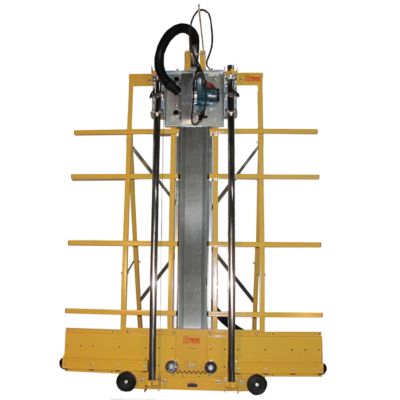

Saw Trax 7-1/4 in. Compact 64 in. Cross Cut Vertical Panel Saw, C64VP
Saw Trax 7-1/4 in. Compact 64 in. Cross Cut Vertical Panel Saw, C64VP
Item # 1980368
$3200.55
Saw Trax 7-1/4 in. Compact 64 in. Cross Cut Vertical Panel Saw, C64VP
Item # 1980368
$3200.55
Varsity Series vertical panel saw with precision cuts of 1/64 in. Vertical Cut Height of 64 in. The five ft. frame never goes out of square. Utilizes a Makita 5007F saw motor.Cut accuracy of 1/64 in.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

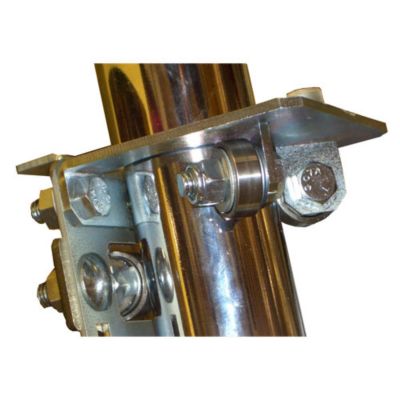

- Accu-Glide Sealed Steel Bearings

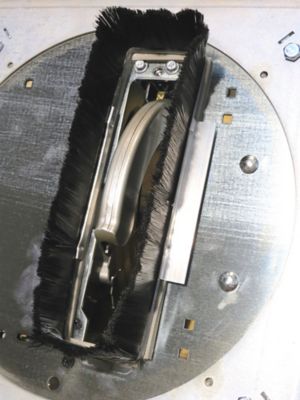

- Spinning Saw Insert Plate

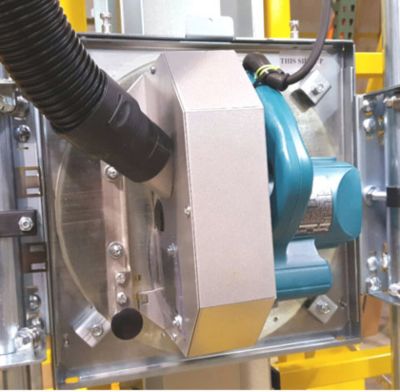

- Dust hood, hose, brush
- Folding Stand and Wheels
- Dual Rip Gauge

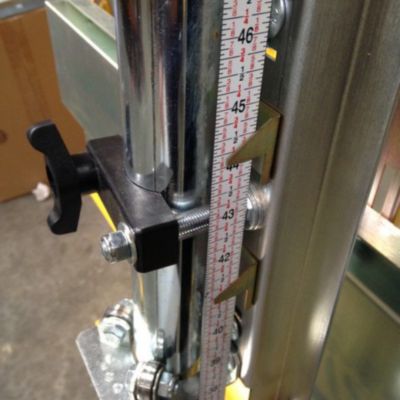

- Stop Block with Bar, and Measuring Tapes
- Patented Accu-Square System
| Brand | Saw Trax |
|---|---|
| Country of Origin | Made in USA |
| Arbor Size | 0.625 in. |
| Blade Change Type | Spindle Lock |
| Blade Diameter | 7.25 in. |
| Cord Length | 10 ft. |
| Cut Through | Wood |
| Features | Accu-Glide Sealed Steel Bearings for smooth repetitive carriage movement Spinning Saw Insert Plate Dust hood, hose, brush Folding Stand and Wheels Dual Rip Gauge Stop Block with Bar and Measuring Tapes Patented Accu-Square System |
| Housing Material | Steel |
| Maximum Bevel Cuts (Left) | 0 N/A |
| Maximum Bevel Cuts (Right) | 0 N/A |
| Maximum Cut Depth at 45 Degrees | 1.75 in. |
| Maximum Cut Depth at 90 Degrees | 1.75 in. |
| Maximum RPM | 5,800 RPM |
| Portable or Stationary | Portable |
| Power Type | Electric |
| Product Height | 90 in. |
| Product Length | 66 in. |
| Product Weight | 307 lb. |
| Product Width | 40 ft. |
| Rip Capacity (Left) | Unlimited |
| Rip Capacity (Right) | Unlimited |
| Table Length | 0 N/A |
| Table Width | 0 N/A |
| Variable Speed | Single Speed |
| Voltage | 120 V |
| Warranty | Saw Trax Mfg., Inc. warrants every product it sells against manufacturers' defects and each product is designed to give years of dependable service. Your new Vertical Panel Saw was built from the finest components available by our trained craftsmen. |
| Manufacturer Part Number | C64VP |
