Powermatic Panel Saw, 3 HP, 115V, 1 Ph
Item # 152735399
Neighbor’s Club Members earn points with purchases.
If you work with sheet goods, this Powermatic Panel Saw has plenty of power for the most demanding cuts. The heavy-duty panel saw carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the polished stainless-steel rails. This panel saw features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. Discover more convenient features, including the dual dust collection ports and true counterweight system.5 year
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

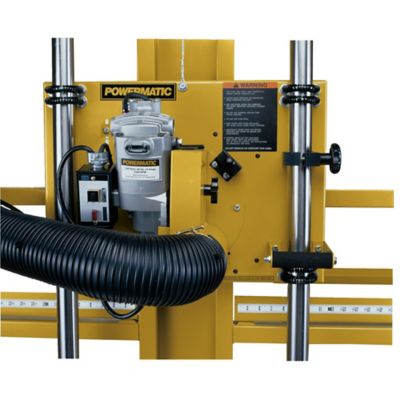

- 3 HP worm drive saw motor rotates in carriage to perform rip cuts
- Heavy-duty welded one-piece steel frame prevents vibration and ensures solid support

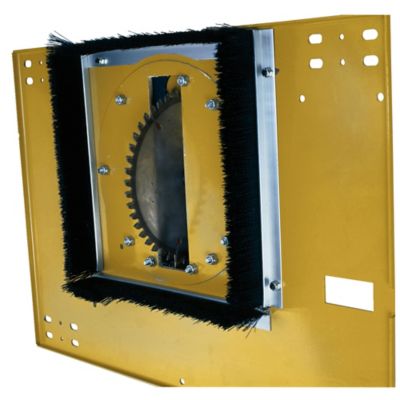

- Dual 4 in. dust ports with nylon brush surrounding blade for front and rear dust exhaust
- True counterweight system keeps the carriage where you position it while loading stock
- Solid aluminum rollers with outside support brackets for square cuts

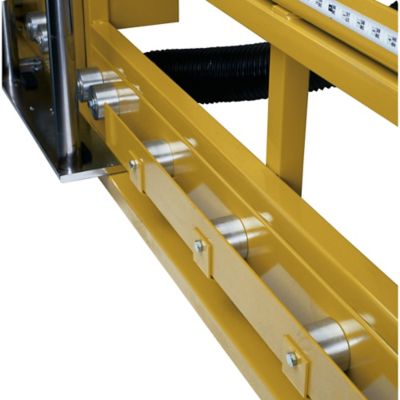

- Polished stainless-steel guide tubes with eight guide roller assemblies provide smooth carriage glide
- Panel saw with casters for easy mobility
- Handles panels up to 5 ft. tall
- Innovative dual dust collection ports and nylon brush surrounding blade provides superior dust collection from front and rear side of the panel
| Brand | Powermatic |
|---|---|
| Country of Origin | Imported |
| Amperage | 13A |
| Arbor Size | 5/8 in. |
| Blade Change Type | Spindle Lock |
| Blade Diameter | 8 in. |
| Cord Length | 8 ft. |
| Cut Through | Wood, Plastic |
| Decibel Rating | 95 dB |
| Dust Collection Method | 4 in. dust port |
| Features | Blade Guard, Depth Control, Guide Included, Tool Free Adjustments |
| Horsepower | 3 HP |
| Housing Material | Cast iron |
| Maximum Bevel Cuts (Left) | 0 in. |
| Maximum Bevel Cuts (Right) | 0 in. |
| Maximum Cut Depth at 45 Degrees | 0 in. |
| Maximum Cut Depth at 90 Degrees | 1.5 in. |
| Maximum RPM | 4,500 RPM |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 90 in. |
| Product Length | 120 in. |
| Product Weight | 435 lb. |
| Product Width | 39 in. |
| Rip Capacity (Left) | 99 in. |
| Rip Capacity (Right) | 99 in. |
| Table Height From Floor | 0 in. |
| Table Length | 120 in. |
| Table Width | 62 in. |
| Variable Speed | Single Speed |
| Voltage | 115V |
| Warranty | 5 Year |
| Manufacturer Part Number | 1510007 |
