Brave Diaphragm Pump 3 in. Honda GX120
Brave Diaphragm Pump 3 in. Honda GX120
Item # 606800199
$2,809.99
or
or
Neighbor’s Club Members earn points with purchases.
$2,809.99
or
or
$59/mo.† for 48 months at 0% APR or earn $140 in Rewards+ on this purchase.
Valid 5/11/2026 - 7/5/2026
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.

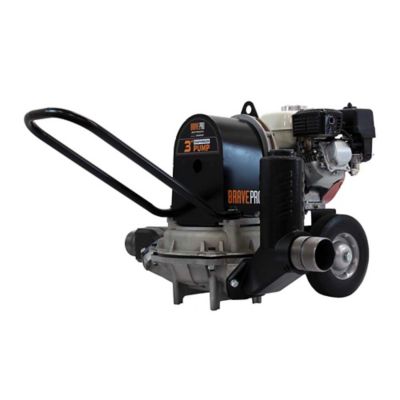

The Brave 3-in. diaphragm pump is ideal for moving mud, slurry and other thick and abrasive liquids. This pump uses a diaphragm that is pushed up and down, creating a vacuum effect instead of using centrifugal force. The diaphragm pump is perfect for moving swamps and dirty ponds, making it great for farmers. Hose kits are available. With a modular component design, this pump allows for simple clean-out and maintenance. Adjust the pump with the 90 deg. rotatable base for convenience.
- 3-in. NPT suction and discharge ports
- Self-priming to 25-ft. lift
- Max solids handling up to 1-5/8 in.

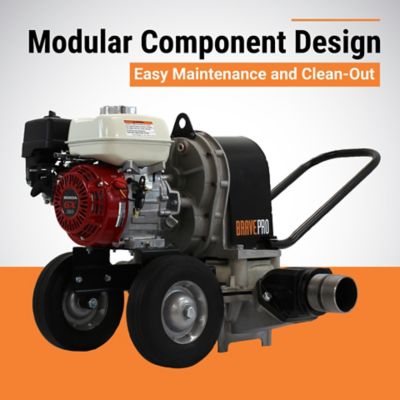

- Modular component design permits easy maintenance and clean-out
- 90 deg. rotatable base
- Max temperature of 180 deg. F
- 25-ft. total head lift, 7.5-ft. total suction head
- Wheel kit included
| Brand | Brave |
|---|---|
| Country of Origin | Made in USA |
| Amperage | 0 amp |
| Body Material | Cast aluminum |
| Compatible Pipe Material | Polyethylene, Black malleable iron, Steel, Copper type L hard temper, Brass, Copper type M hard temper, Polypropylene, Poly, Galvanized malleable iron, Copper type K soft temper, Carbon steel, Galvanized, Stainless Steel, Galvanized steel, Copper type M soft temper, Copper, ABS, Copper type K hard temper, CPVC, Copper type L soft temper, PVC |
| Discharge Connection | MNPT |
| Discharge Diameter | 3 in. |
| Discharge Rate at 0 ft. | 89 GPM |
| Discharge Rate at 10 ft. | 89 GPM |
| Engine Brand | Honda |
| Engine Displacement | 122cc |
| Features | Thermoplastic Santoprene diaphragm |
| Fuel Capacity | 67 oz. |
| Horsepower | 3.5 HP |
| Hose Diameter | 3 in. |
| Impeller Material | Cast Iron |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 3 in. |
| Maximum Flow Rate | 88 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Pressure | 11 PSI |
| Maximum Operating Temperature | 104deg. |
| Maximum Solids Diameter | 1-5/8 in |
| Maximum Suction Lift | 7.5 ft. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | 14deg. |
| Oil Capacity | 20.3 oz. |
| Power Type | Gas |
| Product Height | 33 in. |
| Product Length | 33 in. |
| Product Weight | 175 lb. |
| Product Width | 22 in. |
| Pump Mechanism | Diaphragm |
| Motor Type | Honda GX120 |
| Warranty | 2 Years |
| Manufacturer Part Number | BRP750DP3 |
