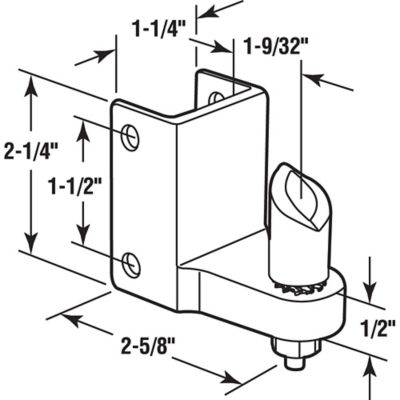

This bottom hinge kit includes components constructed of various materials, and the main hinge bracket comes in a chrome plated finish. The post-mounted gravity pivot hinge bracket fits on 1-1/4 in. thick posts and panels that have square cut edges. This bracket features a 1-9/32 in. key dimension, and its pintle has an outside diameter of 1/2 in. This hardware is designed for use with partition hardware by General and American Sanitary.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
