Phoenix 5 in. x 1 in. General Purpose V-Groove Drive Pulley for Power Transmission
Phoenix 5 in. x 1 in. General Purpose V-Groove Drive Pulley for Power Transmission
Item # 1185170
Stocked & Ready
$26.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Phoenix 5 in. x 1 in. General Purpose V-Groove Drive Pulley for Power Transmission
Item # 1185170
Stocked & Ready
$26.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at HENDERSONVILLE TN(25.8) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Elevate the performance of your power transmission systems with our robust V-Groove Drive Pulley, a versatile and durable component perfect for a wide range of applications. Tailored for a wide range of power transmission applications including compressors, industrial fans, lawnmowers, snowblowers, and electrical motors. Whether you're maintaining existing equipment or building a new system, our V-Groove Drive Pulley offers the quality, durability, and versatility you need to keep your operations running smoothly.
- Outside Diameter: 5", Inside Diameter: 5/8", Width: .85", Belts That Fit: 4L/A and 5L/B, Groove Angle: 34 Degrees, Keyway: .188", Material: Steel
- Wide Application Range: Specially designed for general purpose use in power transmission. Ideal for various machines including compressors, industrial fans, lawnmowers, snowblowers, and electrical motors.
- Set Screws: Equipped with 2 set screws, factory inserted to ensure maximum strength and durability.
- Material: Made of heavy-duty steel, stamped construction built to withstand rigorous use in various environments.
- Belt Compatibility: Designed to work efficiently with 4L/A and 5L/B belts, providing a secure and stable operation. Engineered to minimize friction and wear on belts, extending the lifespan of both the belt and the pulley.
- Rust-Resistant Coating: Zinc-coated for superior rust prevention, ensuring long-term resilience and reliability even in harsh conditions.
| Brand | Phoenix |
|---|---|
| Country of Origin | Imported |
| Belt Type | A/B Type Belt |
| Bore Diameter | 1 in. |
| Compatibility | General Purpose Pulley for Power Transmission Applications |
| Groove Type | V-groove |
| Maximum Belt Width | 0.625 in. |
| Minimum Belt Width | 0.5 in. |
| Number Of Grooves | 1 |
| Primary Material | Steel |
| Product Diameter | 5 in. |
| Product Height | 5 in. |
| Product Length | 5 in. |
| Product Weight | 1.05 lb. |
| Product Width | 5 in. |
| Warranty | No |
| Manufacturer Part Number | 250058 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: Will this pulley work as a replacement to the 5/8 bore torque converter driven drive pulley for minibikes and go karts?
Anonymous5 years ago1 Answer
- A: For additional product support, please contact the manufacture.5 years agoHelpful?
Q: What is the key way? Is it 3/16?
5 years ago1 Answer
- A: PN 250058 has an exact keyway of 0.188" or 3/16”.5 years agoHelpful?
Q: Is that pulley good for a 1in wide Belt? My motor is a 56C frame, 5/8bore, 3/16 key,
9 years ago1 Answer
- A: No, the maximum size belt is 5/8".9 years agoHelpful?
Q: Hello, will this pulley work with the type B (5/8") belts? Thank you
9 years ago1 Answer
- A: Yes it will.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: Will this pulley work as a replacement to the 5/8 bore torque converter driven drive pulley for minibikes and go karts?
Anonymous5 years ago1 Answer
- A: For additional product support, please contact the manufacture.5 years agoHelpful?
Q: What is the key way? Is it 3/16?
5 years ago1 Answer
- A: PN 250058 has an exact keyway of 0.188" or 3/16”.5 years agoHelpful?
Q: Is that pulley good for a 1in wide Belt? My motor is a 56C frame, 5/8bore, 3/16 key,
9 years ago1 Answer
- A: No, the maximum size belt is 5/8".9 years agoHelpful?
Q: Hello, will this pulley work with the type B (5/8") belts? Thank you
9 years ago1 Answer
- A: Yes it will.9 years agoHelpful?
Similar Items
-
Top Rated
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
Reviews
Customer Images and Videos
- purchase
- price
- quality
- satisfaction
- wood
1 to 4 of 9 Reviews .
1 – 4 of 9 Reviews
Most Recent
Grand forks nd
Review 1
1 out of 5 stars.
a month ago

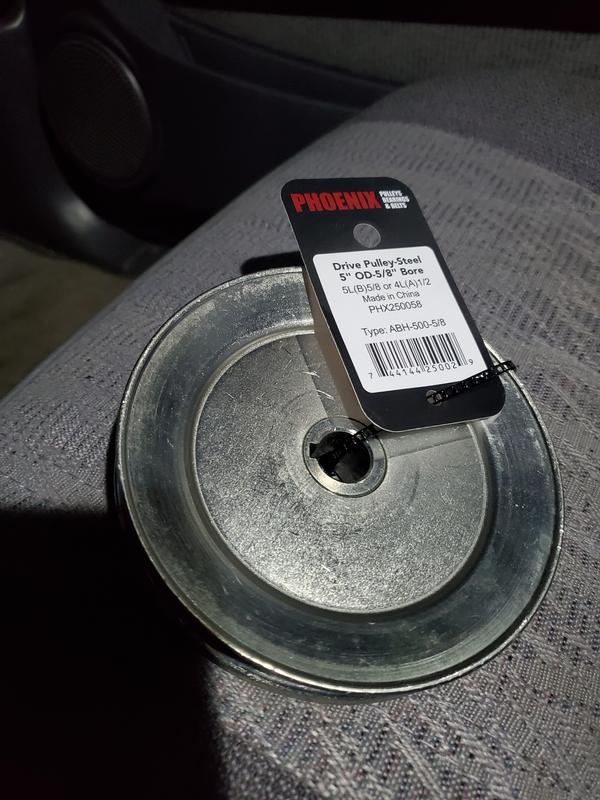

Drove an extra hour to get this pulley and it is a 5/8 bore...not the 1" bore it lists in the description. Fairly irritated
No, I do not recommend this product.
Review 1
5 out of 5 stars.
Great store
3 years ago
Easy online ordering.
Yes, I recommend this product.
CT
Review 1
4 out of 5 stars.

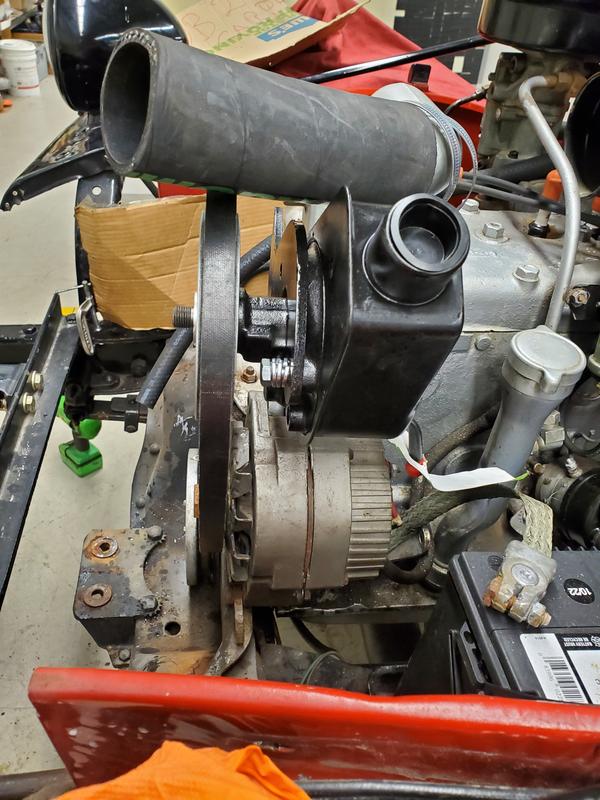

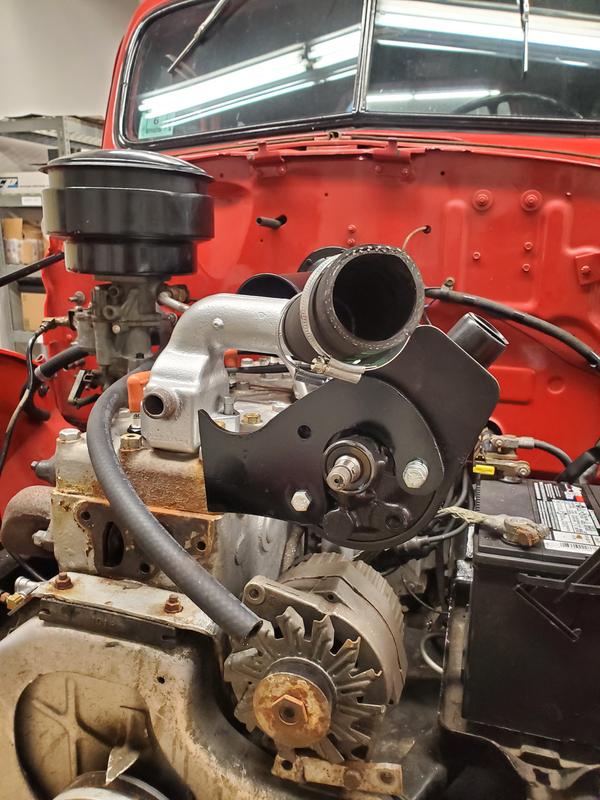

Worked for a power steering pulley...
3 years ago
Needed a pulley for a custom power steering set-up on a '47 Dodge Power wagon. Worked in a pinch!
Run-out is a little excessive and wobbles a bit, but worked the same
Yes, I recommend this product.
Shannon NC
Review 1
5 out of 5 stars.
Perfect
7 years ago
When I ordered this I was needing it really fast anf it to be the right part. It is perfect.
Yes, I recommend this product.
