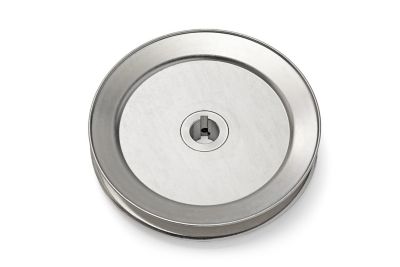

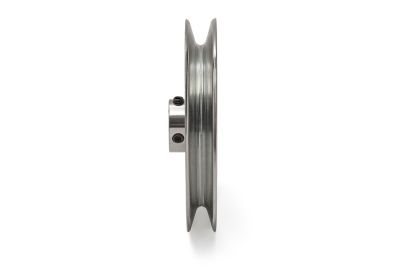

Phoenix 6 in. x 3/4 in. General Purpose V-Groove Drive Pulley for Power Transmission
Phoenix 6 in. x 3/4 in. General Purpose V-Groove Drive Pulley for Power Transmission
Item # 118520199
$31.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Phoenix 6 in. x 3/4 in. General Purpose V-Groove Drive Pulley for Power Transmission
Item # 118520199
$31.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Elevate the performance of your power transmission systems with our robust V-Groove Drive Pulley, a versatile and durable component perfect for a wide range of applications. Tailored for a wide range of power transmission applications including compressors, industrial fans, lawnmowers, snowblowers, and electrical motors. Whether you're maintaining existing equipment or building a new system, our V-Groove Drive Pulley offers the quality, durability, and versatility you need to keep your operations running smoothly.
- Outside Diameter: 6", Inside Diameter: 3/4", Width: .85", Belts That Fit: 4L/A and 5L/B, Groove Angle: 34 Degrees, Keyway: .188", Material: Steel
- Wide Application Range: Specially designed for general purpose use in power transmission. Ideal for various machines including compressors, industrial fans, lawnmowers, snowblowers, and electrical motors.
- Set Screws: Equipped with 2 set screws, factory inserted to ensure maximum strength and durability.
- Material: Made of heavy-duty steel, stamped construction built to withstand rigorous use in various environments.
- Belt Compatibility: Designed to work efficiently with 4L/A and 5L/B belts, providing a secure and stable operation. Engineered to minimize friction and wear on belts, extending the lifespan of both the belt and the pulley.
- Rust-Resistant Coating: Zinc-coated for superior rust prevention, ensuring long-term resilience and reliability even in harsh conditions.
| Brand | Phoenix |
|---|---|
| Country of Origin | Imported |
| Belt Type | A/B Type Belt |
| Bore Diameter | 3/4 in. |
| Compatibility | General Purpose Pulley for Power Transmission Applications |
| Groove Type | V-groove |
| Maximum Belt Width | 0.625 in. |
| Minimum Belt Width | 0.5 in. |
| Number Of Grooves | 1 |
| Primary Material | Steel |
| Product Diameter | 6 in. |
| Product Height | 6 in. |
| Product Length | 6 in. |
| Product Weight | 1.55 lb. |
| Product Width | 6 in. |
| Warranty | TERRE warrants to the original user that any products supplied by TERRE to be free from defects in material and workmanship under normal use or service for a period of one year from the date of purchase. This excludes normal wear and routine maintenance. |
| Manufacturer Part Number | 260034 |
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: I need a 6 in with a5/8 bore that will take a 5/8 belt
2 months ago1 Answer
- A: Hi Neighbor- Please see our website for all available inventory that will fit your belt2 months agoHelpful?
Q: Do you have a 7” OD steel drive pulley with a 3/4” bore and uses a 5/8” belt ?
6 years ago1 Answer
- A: There are three pulley options that meet your specifications of 7" OD, 3/4" bore, and use a 5/8" belt (see below). Part number 270034A, 270034B, and 6270034. We do not carry these in store or online, so we recommend making a visit to your local store and let them know you wish to place a special order for this particular product. Since this is a special order, payment is required at time of order placement.6 years agoHelpful?
Q: Is the keyway width .1875?
7 years ago1 Answer
- A: The keyway width is 0.188”.7 years agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: I need a 6 in with a5/8 bore that will take a 5/8 belt
2 months ago1 Answer
- A: Hi Neighbor- Please see our website for all available inventory that will fit your belt2 months agoHelpful?
Q: Do you have a 7” OD steel drive pulley with a 3/4” bore and uses a 5/8” belt ?
6 years ago1 Answer
- A: There are three pulley options that meet your specifications of 7" OD, 3/4" bore, and use a 5/8" belt (see below). Part number 270034A, 270034B, and 6270034. We do not carry these in store or online, so we recommend making a visit to your local store and let them know you wish to place a special order for this particular product. Since this is a special order, payment is required at time of order placement.6 years agoHelpful?
Q: Is the keyway width .1875?
7 years ago1 Answer
- A: The keyway width is 0.188”.7 years agoHelpful?
