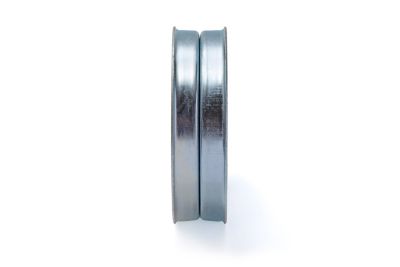

Phoenix Flat Idler Pulley, General Purpose Pulley for Power Transmission, Outside Diameter 5-1/4 in., Inside Diameter 5/8 in.
Phoenix Flat Idler Pulley, General Purpose Pulley for Power Transmission, Outside Diameter 5-1/4 in., Inside Diameter 5/8 in.
Item # 118002399
Stocked & Ready
$29.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Phoenix Flat Idler Pulley, General Purpose Pulley for Power Transmission, Outside Diameter 5-1/4 in., Inside Diameter 5/8 in.
Item # 118002399
Stocked & Ready
$29.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at HENDERSONVILLE TN(25.8) miles Free
Ship to store at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Upgrade your machinery with our versatile Flat Idler Pulley, tailored for a wide range of power transmission applications including compressors, industrial fans, lawnmowers, snowblowers, and electrical motors. This pulley is crafted to deliver not only efficiency and reliability but also the flexibility to suit various machinery needs. This Flat Idler Pulley is not just a component; it's a performance enhancer for your power transmission needs.

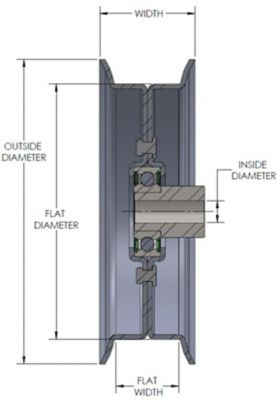

- Outside Diameter: 5-1/4" Inside Diameter: 5/8" Flat Diameter: 5" Flat Width: 1-1/4" Width: 1.44" Number of Flanges: 2 Multiple Bore Options
- Wide Application Range: Ideal for use in diverse power transmission scenarios, from heavy-duty industrial equipment to everyday garden machinery.
- Customizable Bore Adapter: Comes with a standard 5/8" inside diameter, matching the bearing diameter. Terre offers a wide range of bore adapter for enhanced compatibility.
- Heavy-Duty Sealed Bearing: Features a robust sealed radial single-row bearing, ensuring smooth operation and increased durability.
- Rust-Resistant Coating: Zinc-coated for superior rust prevention, ensuring long-term resilience and reliability even in harsh conditions.
- Robust Steel Construction: Made with thick steel, this pulley is designed for enhanced strength and longevity in demanding environments.
- Friction Reduction: Engineered to minimize friction and wear on belts, extending the lifespan of both the belt and the pulley.
- Easy Installation and Maintenance: Simple to install and maintain, this pulley is user-friendly, saving time and reducing maintenance costs.
- Bearings are precision ground types 99502H or 6203
| Brand | Phoenix |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Features | Heavy-duty sealed radial single-row bearing. Zinc-coated for long-term rust prevention. |
| Model Compatibility | General purpose pulley for power transmission equipment such as compressors, industrial fans, lawnmowers, snowblowers, and electrical motors. |
| Product Type | Pulleys |
| Primary Material | Steel |
| Product Height | 5.25 in. |
| Product Length | 5.25 in. |
| Product Weight | 1.25 lb. |
| Product Width | 1.44 in. |
| Warranty | TERRE warrants to the original user any products to be free from defects in material and workmanship under normal use or service for a period of one (1) year from the date of purchase. |
| Manufacturer Part Number | 31500125 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Will it work on a bad boy?Six p m more deck
3 months ago1 Answer
- A: Hi Mike 71! This product will only fit a Bad Boy mower if the OEM pulley matches these specific 5-1/4" OD dimensions and 5/8" bore size.3 months agoHelpful?
Q: Will it work on 52 inch hustler zero turn
a year ago1 Answer
- A: Outside Diameter: 5-1/4" Inside Diameter: 5/8" Flat Diameter: 5" Flat Width: 1-1/4" Width: 1.44" Number of Flanges: 2 Multiple Bore Options Wide Application Range: Ideal for use in diverse power transmission scenarios, from heavy-duty industrial equipment to everyday garden machinery. Customizable Bore Adapter: Comes with a standard 5/8" inside diameter, matching the bearing diameter. Terre offers a wide range of bore adapter for enhanced compatibility.a year agoHelpful?
Q: What size bearing is in this idler, is it a 6203? If so it should be 17mm bore, is that the bore size for this idler?
8 years ago1 Answer
- A: This does have a 6203 beating, but it's 6203 5/8" so the inside diameter is not 17mm.8 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Will it work on a bad boy?Six p m more deck
3 months ago1 Answer
- A: Hi Mike 71! This product will only fit a Bad Boy mower if the OEM pulley matches these specific 5-1/4" OD dimensions and 5/8" bore size.3 months agoHelpful?
Q: Will it work on 52 inch hustler zero turn
a year ago1 Answer
- A: Outside Diameter: 5-1/4" Inside Diameter: 5/8" Flat Diameter: 5" Flat Width: 1-1/4" Width: 1.44" Number of Flanges: 2 Multiple Bore Options Wide Application Range: Ideal for use in diverse power transmission scenarios, from heavy-duty industrial equipment to everyday garden machinery. Customizable Bore Adapter: Comes with a standard 5/8" inside diameter, matching the bearing diameter. Terre offers a wide range of bore adapter for enhanced compatibility.a year agoHelpful?
Q: What size bearing is in this idler, is it a 6203? If so it should be 17mm bore, is that the bore size for this idler?
8 years ago1 Answer
- A: This does have a 6203 beating, but it's 6203 5/8" so the inside diameter is not 17mm.8 years agoHelpful?
