MaxxAir Heavy-Duty Exhaust Fan with Integrated Shutter, 18 in. Blade

SKU # 324060999
Product price

Save Up To
See Price in Store
Why?
Product Rating is 3.4
3.4
(7)

Financing Available! Click here for more details...

Quantity

Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

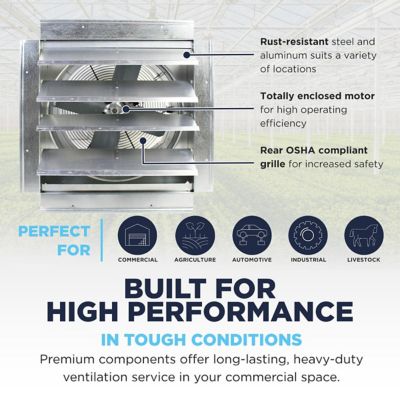

The MaxxAir Heavy-Duty Exhaust Fan with Integrated Shutter is well suited to ventilate many types of substances from dust to humidity, excluding hazardous chemicals or fumes. For use in Barns, Greenhouses or a variety of other locations.

  • Thermally protected 5.34 A enclosed PSC motor
  • 3,000 CFM, single speed
  • 20 ga. galvanized steel housing

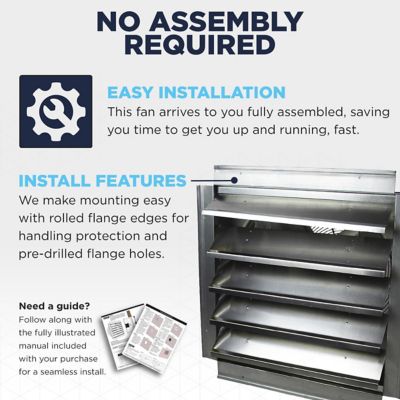

  • Pre-drilled holes for easy installation

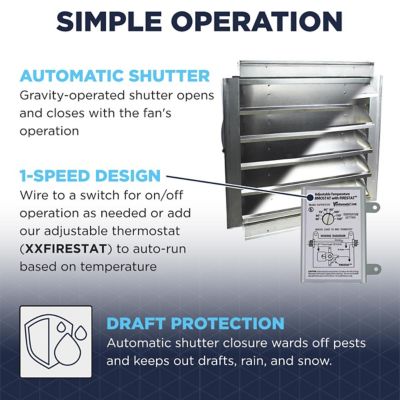

  • 28 ga. galvanized gravity operated shutters
  • Requires minimum 7 sq. ft. intake ventilation area (NFA)
  • 1 year limited warranty

Specification Description
Product Type: Exhaust Fans
Power Type: Electric
Overall Width: 13 in.
Warranty: 1-Year Limited
Brand: MaxxAir
Stand Type: Wall Mount
Overall Length: 21 in.
Case Material: Galvanized Steel
Air Flow: 3,000 CFM
Number of Speeds: 1
Overall Height: 21 in.
Fan Blade Diameter: 18 in.
Manufacturer Part Number IF18
MaxxAir Heavy-Duty Exhaust Fan with Integrated Shutter, 18 in. Blade is rated 3.4 out of 5 by 7.
Rated 3 out of 5 by from 18 inch shutter fan I purchased two of these for a home paint booth, they were an upgrade to the ones I had and work very well. The construction seemed pretty solid for only a few hundred bucks. Have only had them a month or so but so far no issues. Only cons so far are the shutters are very basic and flimsy, when off and shut their are many gaps to allow bugs and critters in but not a deal breaker, also wish it came with a cutout template since you have to cut out the round circle for the inner and a square for the outter wall can be tricky. Also right off the bat I paid for the two year warranty so if I have any issues just take it back get another. Hope this helps take care
Date published: 2018-03-30
Rated 5 out of 5 by from Works better than expected!! I recently built a 30' x 48' metal building and put the epoxy on the floor which caused a serious moisture issue. I purchased the IF18 fan and installed it in the gable on my building. I turned it on at 7pm and by 7am the interior of the shop was completely dry! My floors looked like someone sprayed them with a water hose and this fan completely removed all the moisture within 12 hours, I would highly recommend this fan to anyone. The product was assembled very well, runs quiet and performs flawlessly. I'm going to add the Duostat that Ventamatic offers to accent the fan as I live in Jacksonville Florida where both temperature and humidity can be a challenge.
Date published: 2018-01-22
Rated 5 out of 5 by from Good Quiet fan This fan is doing just what it's supposed to. Make some noise but at least you can talk normally around it. It is a good value for moving some air in the barn.
Date published: 2016-01-18
Rated 3 out of 5 by from Good, but not great. Fan works, is reasonably quiet, but I had some issues with the documentation. For one, the specs call for a rough in installation hole of 20.75"x20.75" and if I hadn't been diligent enough to actually measure the fan box I would have cut the hole too large. It is actually 20.25" square. Also the fan does not work well with a triac speed control even though it is documented to be a PSC motor.
Date published: 2014-12-01
  • y_2018, m_7, d_15, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_324060999, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

What is the current rating of the motor?

Asked by: smd75jr
Hello smd75jr, the rating for the motor in our 18" exhaust fan is 120v at 60hz.
Answered by: CustomerService
Date published: 2018-05-12

I need an exhaust fan for fine dust in my wood working shop, about 1200 sf. Will this fan work?

Asked by: Frank W
Hello Frank W, yes our heavy duty exhaust fans are perfect for using in a woodworking shop. Our exhaust fans feature totally enclosed motors to be used in applications such as this.
Answered by: CustomerService
Date published: 2017-10-25

What's the rough opening?

Asked by: Chuck60
Hello Chuck60, the rough opening for our 18" exhaust fan is 20 3/4" by 20 3/4".
Answered by: CustomerService
Date published: 2017-09-19

How loud is the fan while running? Dose it have a decibel rating?

Asked by: Bige 23
Hello Bige 23, we unfortunately do not have decibel ratings for our industrial exhaust fan line at this time.
Answered by: CustomerService
Date published: 2017-08-08

Is it 120 or 240 volts

Asked by: Frankdollison
Hello Frank Dollison, the motor on the 18" exhaust fan is 120 volts.
Answered by: CustomerService
Date published: 2017-07-26
