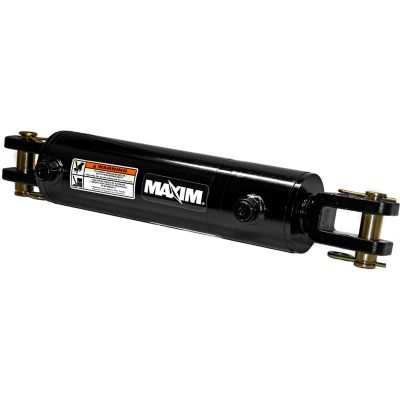

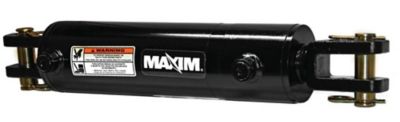

Maxim 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter

5.02 Reviews

Item # 1307762

Image showing 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
$449.99

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Maxim 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter

5.02 Reviews

Item # 1307762

Image showing 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
Image showing 4 in. Bore x 30 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
$449.99

See 2 deals for this item

This item is available online only

Delivering to

20147

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Maxim 4 in. Bore x 30 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. You can rely on this hydraulic cylinder; it's been designed for demanding applications and built to ensure maximum reliability and performance. This welded cylinder is intended to be used in double-acting applications, and it has cast female clevises with pins and clips included as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Welded hydraulic cylinder intended to be used in double-acting applications
  • Painted black for a simple and effective hydraulic cylinder design
  • Piston: ductile iron ASTM A536 65-45-12 for excellent life
  • Piston lock nut: grade 8, high-tensile zinc-plated
  • Gland: ductile iron ASTM A536 65-45-12
  • Tube: high-tensile cold drawn tube, precision-honed for extended seal life
  • Tube seal: nitrile O-ring with polytemp hytrel back-up
  • Rod: high-tensile ground and polished hard chrome-plated rod
  • Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
  • Wiper: polyurethane
  • End mounts: cast female clevises with pins and clips included
  • Pin and pin clip: high-tensile zinc-plated steel
  • Piston ID seal: O-ring
  • Piston OD seal: Hallite 755 piston seal
  • Ports: SAE O-rings
  • Measures 40.25 in. retracted and 70.25 in. extended
  • Column load: 36,430 lb.
  • Pin diameter of 1 in. and rod diameter of 2 in.
  • 1 year warranty
  • Maximum PSI: 3,000 PSI
