Magister Hydraulics Lift Gate Hydraulic Power Unit Single Acting 24V DC with 8 qt. Steel Tank
New Arrival
Online Only
Item # 6111363
Neighbor’s Club Members earn points with purchases.
New Arrival
Online Only
Item # 6111363
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

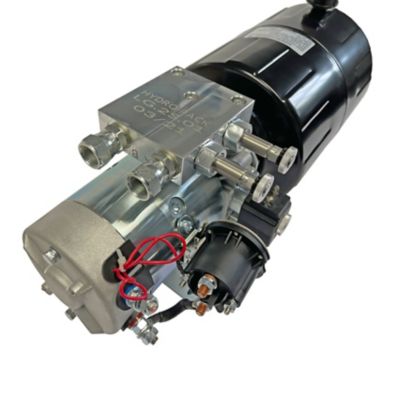

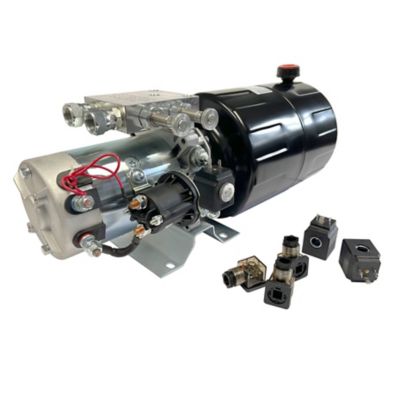

This single-acting hydraulic power unit is built for lift gates that require power up and gravity down operation. Designed with an 8-quart steel reservoir, the system offers durability and stability even in demanding commercial environments. Powered by a strong 2.2 kW 24V DC motor and a precision gear pump, the unit delivers a consistent 1.3 GPM at 2500 PSI with a displacement of 0.13 ci/rev. The adjustable 2900 PSI pressure relief valve allows precise control of lifting force. Suitable for lift gate systems that use two single-acting cylinders, this unit is assembled horizontally and engineered for smooth, efficient operation. Remote: Not included. BenefitsReliable 24V DC single-acting hydraulic lift gate power unit with 8 quart steel reservoir. Adjustable 2900 PSI relief valve, 2.2 kW motor, and 1.3 GPM @ 2500 PSI. Power up / gravity down operation. Ideal for lift gates with two single-acting cylinders. Made in Europe. Free US Ground Shipping.
- - Single Acting operation
- - Rated for 2900 PSI
- - Maximum flow rate: 1.3 GPM
- - 24 V power
- - Reservoir capacity: 8 QTs
- - Housing material: Steel
- - Port size: SAE 8
- - Remote control: NOT Included
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | Steel |
| Discharge Port | 0.5 in. |
| Engine Displacement | 2.13 cc |
| Features | Single Acting; 1.3 GPM; 2900 PSI; 24 V; Steel tank; 0.13 ci/rev |
| Hose Diameter | 0.5 in. |
| Housing Material | Steel |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 1.3 GPM |
| Maximum Operating Pressure | 2900 PSI |
| Minimum Operating Pressure | 0 PSI |
| Motor Type | Other |
| Oil Capacity | 8 QTs |
| Outlet Diameter | 0.5 in. |
| Power Type | Electric |
| Product Height | 10 in. |
| Product Length | 20 in. |
| Product Weight | 40 lb. |
| Product Width | 8 in. |
| Suction Port | 0.5 in. |
| Switch Type | NOT Included |
| Valve Inlet Diameter | 0.5 in. |
| Valve Inlet Type | SAE |
| Valve Outlet Diameter | 0.5 in. |
| Valve Outlet Type | SAE |
| Voltage | 24 V |
| Warranty | 1 |
| Manufacturer Part Number | HPU-LG-24VDC |
