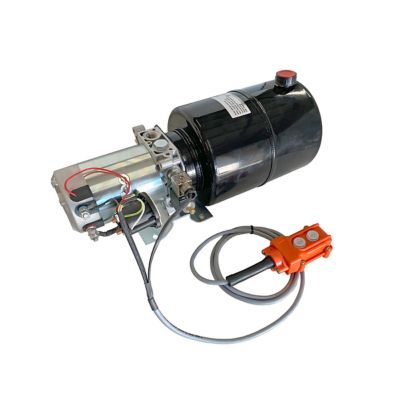

Magister Hydraulics 12 V DC Single Acting Hydraulic Power Unit, 12 qt. Steel Tank, 2600 PSI
Magister Hydraulics 12 V DC Single Acting Hydraulic Power Unit, 12 qt. Steel Tank, 2600 PSI
Item # 6111358
$439.99
Magister Hydraulics 12 V DC Single Acting Hydraulic Power Unit, 12 qt. Steel Tank, 2600 PSI
Item # 6111358
$439.99
Power your hydraulic systems efficiently with Magister Hydraulics 12 V DC Single Acting Power Unit, engineered for reliable performance in demanding mobile, agricultural, and industrial applications. Built with a heavy-duty 12-quart steel reservoir and a 1.6 kW motor, this compact unit delivers 1.1 GPM flow at 2500 PSI, providing smooth lifting performance and gravity-powered lowering for precise control. Benefits:12V DC Single Acting hydraulic power unit, 12 qt steel reservoir, up/down actuation, compact and reliable. Ideal for mobile, agricultural, or industrial equipment. Same Day Free Shipping, 1 year warranty, Made in Europe
- - Single Acting operation
- - Rated for 2600 PSI
- - Maximum flow rate: 1.1 GPM
- - 12 V power
- - Reservoir capacity: 12 QTs
- - Housing material: Steel
- - Port size: SAE 8
- - Remote control: Included
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | Steel |
| Discharge Port | 0.5 in. |
| Engine Displacement | 1.64 cc |
| Features | Single Acting; 1.1 GPM; 2600 PSI; 12 V; Steel tank; 0.10 ci/rev |
| Hose Diameter | 0.5 in. |
| Housing Material | Steel |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 1.1 GPM |
| Maximum Operating Pressure | 2600 PSI |
| Minimum Operating Pressure | 0 PSI |
| Motor Type | 12V DC, S3 duty |
| Oil Capacity | 12 QTs |
| Outlet Diameter | 0.5 in. |
| Power Type | 12 Volt |
| Product Height | 13 in. |
| Product Length | 36 in. |
| Product Weight | 35 lb. |
| Product Width | 13 in. |
| Suction Port | 0.5 in. |
| Switch Type | Included |
| Valve Inlet Diameter | 0.5 in. |
| Valve Inlet Type | SAE |
| Valve Outlet Diameter | 0.5 in. |
| Valve Outlet Type | SAE |
| Voltage | 12 V |
| Warranty | 1 |
| Manufacturer Part Number | HPU-SR-12VDC-SA-12 |
