Magister Hydraulics Snow Plow Hydraulic Power Unit 12V DC Double Acting 8 qt. Steel Tank
New Arrival
Item # 611136299
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 611136299
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

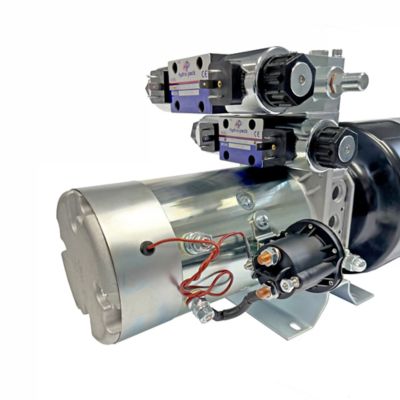

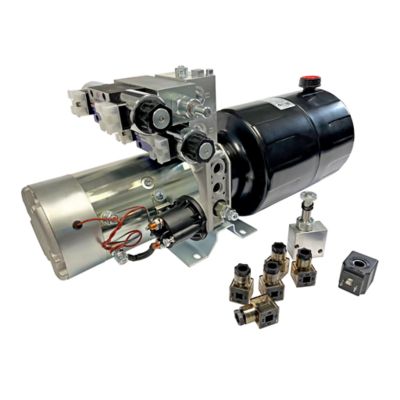

This commercial-grade hydraulic power unit is engineered specifically for snow plow applications requiring reliable power up / power down operation. Built with a durable 8-quart steel reservoir and a high-efficiency 3 kW 12V DC motor, it delivers the performance needed for demanding winter conditions. The system includes two solenoid valves:Reliable 12V DC double-acting hydraulic power unit for snow plows with 8-quart steel reservoir. Adjustable 2900 PSI relief valve, 3 kW motor, 1.8 GPM @ 2500 PSI. Power up/power down operation. Over-center protection valve included. Made in Europe. Free US Ground Shipping.
- - Double Acting operation
- - Rated for 2900 PSI
- - Maximum flow rate: 1.8 GPM
- - 12 V power
- - Reservoir capacity: 8 QTs
- - Housing material: Steel
- - Port size: SAE 8
- - Remote control: NOT Included
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | Steel |
| Discharge Port | 0.5 in. |
| Engine Displacement | 2.13 cc |
| Features | Double Acting; 1.8 GPM; 2900 PSI; 12 V; Steel tank; 0.13 ci/rev |
| Hose Diameter | 0.5 in. |
| Housing Material | Steel |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 1.8 GPM |
| Maximum Operating Pressure | 2900 PSI |
| Minimum Operating Pressure | 0 PSI |
| Motor Type | 12V DC, S3 duty |
| Oil Capacity | 8 QTs |
| Outlet Diameter | 0.5 in. |
| Power Type | 12 Volt |
| Product Height | 10 in. |
| Product Length | 24 in. |
| Product Weight | 55 lb. |
| Product Width | 8 in. |
| Suction Port | 0.5 in. |
| Switch Type | NOT Included |
| Valve Inlet Diameter | 0.5 in. |
| Valve Inlet Type | SAE |
| Valve Outlet Diameter | 0.5 in. |
| Valve Outlet Type | SAE |
| Voltage | 12 V |
| Warranty | 1 |
| Manufacturer Part Number | HPU-SP-12VDC |
