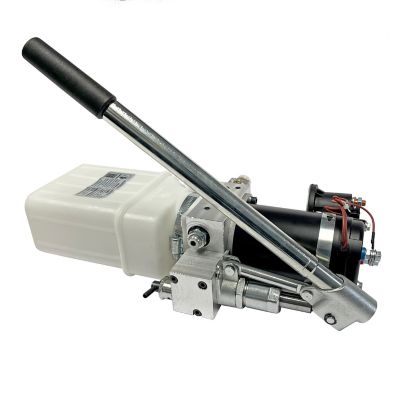

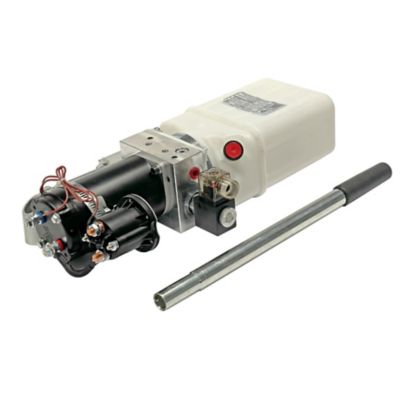

This compact hydraulic power unit is engineered specifically for wheelchair lifts and personal mobility systems requiring power up and gravity down operation. Designed for reliability and smooth performance, it features a 1.5-quart plastic reservoir that is lightweight, durable, and resistant to corrosion. Powered by a 0.8 kW 12V DC motor, the unit delivers a consistent 0.45 GPM at 2500 PSI through a precision gear pump with 0.03 ci/rev displacement. The adjustable 3190 PSI pressure relief valve ensures safe and accurate lifting performance tailored to your system. This model comes in a horizontal assembly, making it easy to integrate into compact wheelchair lift housings, vans, buses, and mobility vehicle platforms. Remote: Not included. BenefitsCompact 12V DC single-acting hydraulic power unit for wheelchair lifts with 1.5-quart plastic reservoir. Adjustable 3190 PSI relief valve, 0.8 kW motor, and 0.45 GPM @ 2500 PSI flow. Power up / gravity down operation. Made in Europe. Free US Ground Shipping. 1-year warranty.
- - Single Acting operation
- - Rated for 3190 PSI
- - Maximum flow rate: 0.46 GPM
- - 12 V power
- - Reservoir capacity: 1.58 QTs
- - Housing material: Plastic
- - Port size: SAE 8
- - Remote control: NOT Included
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | Plastic |
| Discharge Port | 0.5 in. |
| Engine Displacement | 0.49 cc |
| Features | Single Acting; 0.46 GPM; 3190 PSI; 12 V; Plastic tank; 0.03 ci/rev |
| Hose Diameter | 0.5 in. |
| Housing Material | Plastic |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 0.46 GPM |
| Maximum Operating Pressure | 3190 PSI |
| Minimum Operating Pressure | 0 PSI |
| Motor Type | 12V DC, S3 duty |
| Oil Capacity | 1.58 QTs |
| Outlet Diameter | 0.5 in. |
| Power Type | 12 Volt |
| Product Height | 10 in. |
| Product Length | 24 in. |
| Product Weight | 17 lb. |
| Product Width | 10 in. |
| Suction Port | 0.5 in. |
| Switch Type | NOT Included |
| Valve Inlet Diameter | 0.5 in. |
| Valve Inlet Type | SAE |
| Valve Outlet Diameter | 0.5 in. |
| Valve Outlet Type | SAE |
| Voltage | 12 V |
| Warranty | 1 |
| Manufacturer Part Number | HPU-WC-12VDC |
