Magister Hydraulics Bi-Directional Hydraulic Power Unit 12 V DC Double Acting
New Arrival
Online Only
Item # 6111361
Neighbor’s Club Members earn points with purchases.
New Arrival
Online Only
Item # 6111361
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

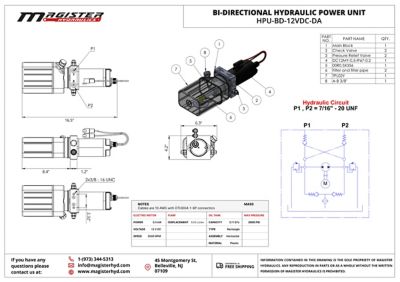

This high-performance bi-directional hydraulic power unit is engineered for systems requiring double-acting control-providing consistent power up and power down operation. With a durable 2-quart plastic tank, corrosion-resistant housing, and a precision-built European gear pump, it offers strong performance in a compact form. The integrated 2900 PSI adjustable pressure relief valve allows you to fine-tune system performance. A reliable 0.5 kW 12V DC motor delivers steady flow at 0.4 GPM @ 2500 PSI, supporting a wide range of residential, mobile, and industrial hydraulic applications. This unit comes equipped with 10 AWG power cables and DTHD04-1-8P connectors, making electrical installation fast and secure. Benefits12V DC bi-directional double-acting hydraulic power unit with 2-quart plastic reservoir. Adjustable 2900 PSI relief valve, 0.5 kW motor, 0.4 GPM @ 2500 PSI, and 10 AWG cables with DTHD04-1-8P connectors. Power up / power down operation. Made in Europe. Free Continental US shipping, 1-year warranty.
- - Double Acting operation
- - Rated for 2900 PSI
- - Maximum flow rate: 0.4 GPM
- - 12 V power
- - Reservoir capacity: 2 QTs
- - Housing material: Plastic
- - Port size: SAE 4
- - Remote control: NOT Included
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | Plastic |
| Discharge Port | 0.5 in. |
| Engine Displacement | 0.49 cc |
| Features | Double Acting; 0.4 GPM; 2900 PSI; 12 V; Plastic tank; 0.03 ci/rev |
| Hose Diameter | 0.5 in. |
| Housing Material | Plastic |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 0.4 GPM |
| Maximum Operating Pressure | 2900 PSI |
| Minimum Operating Pressure | 0 PSI |
| Motor Type | 12V DC, S3 duty |
| Oil Capacity | 2 QTs |
| Outlet Diameter | 0.5 in. |
| Power Type | 12 Volt |
| Product Height | 10 in. |
| Product Length | 24 in. |
| Product Weight | 15 lb. |
| Product Width | 10 in. |
| Suction Port | 0.5 in. |
| Switch Type | NOT Included |
| Valve Inlet Diameter | 0.5 in. |
| Valve Inlet Type | SAE |
| Valve Outlet Diameter | 0.5 in. |
| Valve Outlet Type | SAE |
| Voltage | 12 V |
| Warranty | 1 |
| Manufacturer Part Number | HPU-BD-12VDC-DA |
