Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine
$1349.99
Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine
Online Only
Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine
Item # 2539490
Highlights
- Maximum Log Diameter:40 in.
- Log Splitter Maximum Log Length:22 in
- Cycle Time:6 sec.
$1349.99
or
or
Add this item to unlock free delivery!
Notice:
This Item cannot be shipped to CA.
Neighbor’s Club Members earn points with purchases.
Online Only
Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine
Item # 2539490
Highlights
- Maximum Log Diameter:40 in.
- Log Splitter Maximum Log Length:22 in
- Cycle Time:6 sec.
$1349.99
or
or
$75/mo.† suggested payments with 18 Months Financing or earn $67 in Rewards+ on this purchase.
Valid 8/24/2026 - 9/7/2026
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Notice:
This Item cannot be shipped to CA.Neighbor’s Club Members earn points with purchases.
Boasting a 6-second cycle time, the 22-ton Hyper Split splits logs twice as fast as other hydraulic log splitters. Designed for speed and power, Hyper Split combines top-tier specifications with an industry-leading residential warranty: steel components are covered for 5 years and hydraulics for 3 years. Premium features include double-thick log cradles, robust stripper plates, dual log catchers, and the ability to split logs both horizontally and vertically. It also rolls on highway-rated tires. Hyper Split log splitters are the fastest, strongest hydraulic log splitters in their class.
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section.
- Optimized pump-to-engine pairing for the industry's fastest cycle time
- 3/4" hoses and fittings for better flow (compared to standard 1/2" fittings)
- Double-sealed cylinder for extended service life

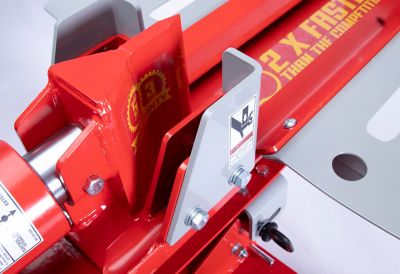

- Double-thick steel in the cradle and stripper plates
- Dual log catchers
- Highway-rated tires
- Industry-leading warranty
| Brand | Hyper Split |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Cycle Time | 6 sec. |
| Engine Displacement | 196 cc |
| Fuel Tank Capacity | 3.5 qt |
| Horsepower | 6.5 HP |
| Hydraulic Capacity | 22 Ton |
| Log Splitter Features | DOT Approved, Hydraulic, Automatic Return, Portable |
| Log Splitter Maximum Log Length | 22 in |
| Log Splitting Force | 22 ton |
| Maximum Log Diameter | 40 in. |
| Maximum PSI | 4,000 PSI |
| Engine Brand | Kohler |

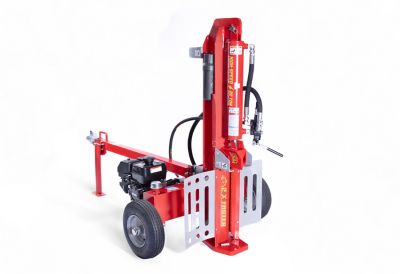

| Operational Orientation | Horizontal and Vertical |
| Power Type | Gas |
| Primary Material | Steel |
| Product Height | 40 in. |
| Product Length | 90.25 in. |
| Product Weight | 500 lb. |
| Product Width | 50 in. |
| Pump Rating | 16 gpm |
| Recommended Oil Type | AW68 |
| Splitter Type | Gas |
| Start Type | Manual |
| Tire Size | 16 in. |
| Torque | 10 ft. lb. |
| Warranty | Steel components are covered for 5 years and hydraulics for 3 years |
| Manufacturer Part Number | 33-132 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 19 Questions
Newest questions
Q: What are the dimensions of the shipped package?
19 days ago1 Answer
- A: Hi Bcole! This product ships on a standard 48"x40" pallet.16 days agoHelpful?
Q: Does the hyper split splitter need to be put together?
25 days ago1 Answer
- A: Hi Neal! The level of assembly is not mentioned, we recommend contacting the product manufacturer to have any specific questions you have answered by emailing customerservice@tooltuffdirect.com.24 days agoHelpful?
Q: What size cylinder? What size is the shaft?
6 months ago1 Answer
- A: Hi Philly! This product has a 4-inch bore hydraulic cylinder, and a standard 3/4-inch (0.75") diameter horizontal shaft.6 months agoHelpful?
Q: What size is trailer hitch?
8 months ago1 Answer
- A: Hi Neighbor- The Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine is a robust, towable unit with dimensions around 87-89 inches long, 50-52 inches wide, and 40-41 inches high (horizontal), handling logs up to 24-26 inches long, and featuring a 2-stage pump, 4-inch cylinder, 7-inch wedge, and DOT-approved tires for portability, weighing roughly 400-500 lbs.8 months agoHelpful?
Q: What accessories are available for the Hyper Split 22-ton splitter with the Koler engine?
9 months ago1 Answer
- A: Hi Neighbor! We do not currently carry accessories for this product. We encourage reaching out to the manufacturer to see if they offer any accessories directly.9 months agoHelpful?
Q: Is hydraulic fluid and motor oil included in the splitter purchase price?
9 months ago1 Answer
- A: Hi Neighbor! No, the hydraulic fluid and motor oil are not included with the purchase of the Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine.9 months agoHelpful?
Q: Does this have automatic return?
9 months ago1 Answer
- A: Hi Neighbor- Yes, the Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine has an auto-return valve9 months agoHelpful?
Q: Can you get it in the 32 ton of the hyper splitr
9 months ago1 Answer
- A: Hello Neighbor, TSC currently does not offer the 32 ton Hyper Split. Please contact your local TSC store to inquire about potentially special ordering through the manufacturer.9 months agoHelpful?
Q: Est.pickup time from Omaha Council Bluffs area
Anonymous9 months ago1 Answer
- A: Hi Neighbor! To get the most accurate shipping info, simply add the product to your cart. It will show you an estimated ship date. If you need more information, please call us at (877)718-6750.9 months agoHelpful?
Q: is it a two stage pump?
9 months ago1 Answer
- A: Hi Neighbor! Yes. This product uses a two-stage pump.9 months agoHelpful?
1 - 10 of 19 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 19 Questions
Newest questions
Q: What are the dimensions of the shipped package?
19 days ago1 Answer
- A: Hi Bcole! This product ships on a standard 48"x40" pallet.16 days agoHelpful?
Q: Does the hyper split splitter need to be put together?
25 days ago1 Answer
- A: Hi Neal! The level of assembly is not mentioned, we recommend contacting the product manufacturer to have any specific questions you have answered by emailing customerservice@tooltuffdirect.com.24 days agoHelpful?
Q: What size cylinder? What size is the shaft?
6 months ago1 Answer
- A: Hi Philly! This product has a 4-inch bore hydraulic cylinder, and a standard 3/4-inch (0.75") diameter horizontal shaft.6 months agoHelpful?
Q: What size is trailer hitch?
8 months ago1 Answer
- A: Hi Neighbor- The Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine is a robust, towable unit with dimensions around 87-89 inches long, 50-52 inches wide, and 40-41 inches high (horizontal), handling logs up to 24-26 inches long, and featuring a 2-stage pump, 4-inch cylinder, 7-inch wedge, and DOT-approved tires for portability, weighing roughly 400-500 lbs.8 months agoHelpful?
Q: What accessories are available for the Hyper Split 22-ton splitter with the Koler engine?
9 months ago1 Answer
- A: Hi Neighbor! We do not currently carry accessories for this product. We encourage reaching out to the manufacturer to see if they offer any accessories directly.9 months agoHelpful?
Q: Is hydraulic fluid and motor oil included in the splitter purchase price?
9 months ago1 Answer
- A: Hi Neighbor! No, the hydraulic fluid and motor oil are not included with the purchase of the Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine.9 months agoHelpful?
Q: Does this have automatic return?
9 months ago1 Answer
- A: Hi Neighbor- Yes, the Hyper Split 22 Ton Log Splitter with Kohler 196cc Engine has an auto-return valve9 months agoHelpful?
Q: Can you get it in the 32 ton of the hyper splitr
9 months ago1 Answer
- A: Hello Neighbor, TSC currently does not offer the 32 ton Hyper Split. Please contact your local TSC store to inquire about potentially special ordering through the manufacturer.9 months agoHelpful?
Q: Est.pickup time from Omaha Council Bluffs area
Anonymous9 months ago1 Answer
- A: Hi Neighbor! To get the most accurate shipping info, simply add the product to your cart. It will show you an estimated ship date. If you need more information, please call us at (877)718-6750.9 months agoHelpful?
Q: is it a two stage pump?
9 months ago1 Answer
- A: Hi Neighbor! Yes. This product uses a two-stage pump.9 months agoHelpful?
1 - 10 of 19 Questions
Similar Items
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
-
Reviews
1 to 4 of 19 Reviews .
1 – 4 of 19 Reviews
Most Recent
Blairsville, GA
Reviews 2
5 out of 5 stars.
Love this machine.
10 days ago
Works great! Cycle time is fantastic, now I am the slow part of the process.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Rural Missouri
Review 1
5 out of 5 stars.
Log Splitter
8 months ago
One of the best investments I ever made.
I have always tried to stay away from using a log splitter as I felt the old fashion manual way was better for keeping me in shape. Now that I am getting older and do not have the stamina I once had and some of the notty wood I decided to take advantage of the sale they had. I am glad I chose the one I did for a couple reasons. Speed of the ram and the log catchers on the side. Only wish I wouldn't have had to pay freight. What would take me a day or more to do before I now get done in 1-2 hrs.
SweepstakesYes
Yes, I recommend this product.
Review 1
4 out of 5 stars.
Very powerful
8 months ago
Split everything I had, up to 2’ wide. Very fast. Started first pull after assembly, however the kohler engine was very difficult to start at 20F. Would definitely buy again.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Western North Carolina
Review 1
4 out of 5 stars.
22 ton hypersplit
8 months ago
Pros: Everything seems well built. I love the speed of this splitter. Engine fired right up.
Cons: The clear hydraulic hose form tank to pump kinked during install but still works. The control handle could be clocked up towards 12 o'clock some more. Maybe 2 to 5 degrees. The splitting wedge needs to be an inch or 2 taller. Overall satisfied.
SweepstakesYes
Yes, I recommend this product.
