Hayrite Drive Kit

SKU: 121540499
Hayrite Drive Kit
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.5
4.5
 (16)

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

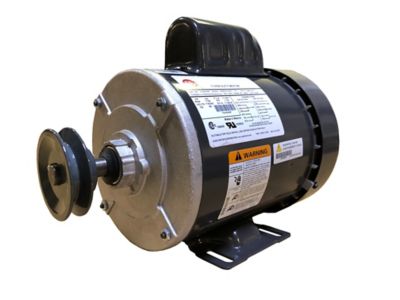

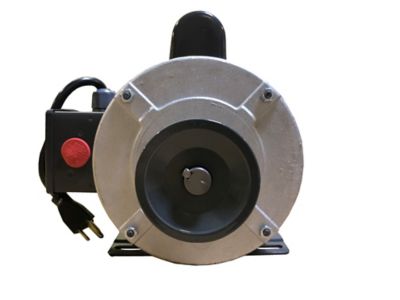

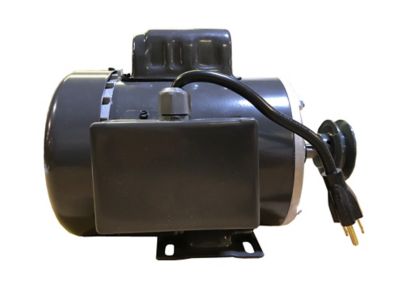

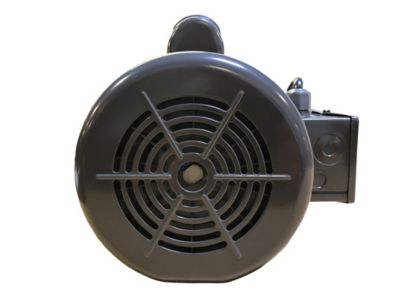

The Hayrite Drive Kit comes with motor with pulley, cord & plug.

  • Prewired - save hiring a certified electrician.
  • Use with Hayrite Bale Handling Systems up to 40 ft.
  • Rated: Farm Duty (totally enclosed, fan cooled with manual reset overload protector)
  • Horsepower: 3/4 HP
  • Shaft Diameter: 5/8 in.
  • Frame Type: 56
  • Voltage: 115/230V (wired for 115V)
  • Amperage: 10.6/5.3A
  • Motor Phase: Single
  • RPM: 1,745
  • Cord: 14 GA x 7 in. L
  • Pulley: AK28 x 5/8 in., Cast-Iron

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Package Quantity: 1
Product Weight: 29 lb.
Product Length: 12 in.
Product Width: 8-1/2 in.
Product Height: 7-1/2 in.
OEM Replacement #: N/A
Model: HEC-16M
Brand: Hayrite
Warranty: 1 Year
Manufacturer Part Number HST-51A
Hayrite Drive Kit is rated 4.5 out of 5 by 16.
Rated 5 out of 5 by from Worked well with the matching hay elevator. Designed to work with the matching hay elevator, performed as intended.
Date published: 2019-12-07
Rated 5 out of 5 by from New motor with new elevator The motor is easy to mount after you get the elevator assembled, if you are buying them together. The elevator does not come with a motor. This one sounds strong and moves the bales at a good speed.
Date published: 2019-10-28
Rated 5 out of 5 by from Hay stacking made easy Absolutely anyone that has to handle hay will benefit from using the hay ladder in conjunction with this powerful little motor. 100% recommend.
Date published: 2019-08-28
Rated 4 out of 5 by from Strong motor Strong motor. Only reason for not giving 5 stars would be that there is no switch and it looks like they just spray painted the whole thing.
Date published: 2019-07-17
  • y_2020, m_6, d_1, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_9, tr_7
  • loc_en_US, sid_121540499, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

Does this come with a switch? Can the motor be run in the oposite direction? Is there a switch option for On-Off-Reverse?

Asked by: Capng
You can reverse the motor, however, there is no motor switch only a cord.
Answered by: JasmineH
Date published: 2019-06-21
