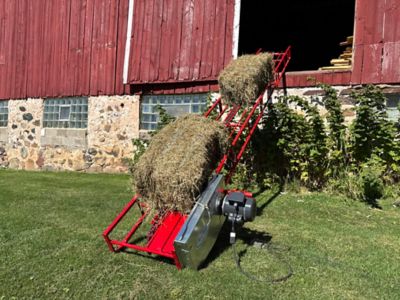

Hayrite 16 ft. Bale Elevator, No. 55 Chain, 3/4 HP Motor
$1,699.99
Sale
Save(22%)
Hayrite 16 ft. Bale Elevator, No. 55 Chain, 3/4 HP Motor
Limited Time Deal
Hayrite 16 ft. Bale Elevator, No. 55 Chain, 3/4 HP Motor
Item # 146036599
$1,699.99
Sale
Save(22%)
or
or
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Hayrite 16 ft. Bale Elevator, No. 55 Chain, 3/4 HP Motor
Item # 146036599
$1,699.99
Sale
Save(22%)
or
or
$36/mo.† for 48 months at 0% APR or earn $84 in Rewards+ on this purchase.
Valid 8/24/2026 - 9/7/2026
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Get everything you need
Neighbor’s Club Members earn points with purchases.

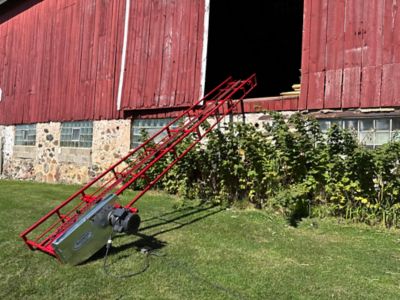

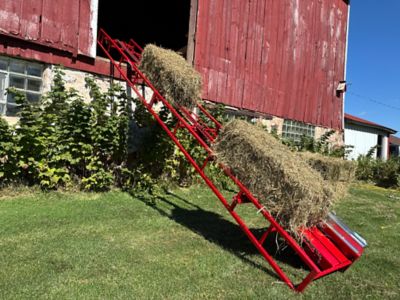

Support your farming operation with the Hayrite 16 ft. Bale Elevator. The sturdy construction with angle-iron joints protects the bale elevator from everyday use for long-lasting functionality. The universal motor mount and self-aligning bearings give the hay elevator smooth movement to prevent loss of material.
- Bale elevator makes storing bales a smooth, quick and simple, one-person operation
- Sturdy design can be used as inclined conveyor, mow conveyor or both
- High-strength, 1 in. square tubing is 70 percent more rigid than round tubing
- Heavier, 1/8 in. angle-iron connecting joints to prevent stretching

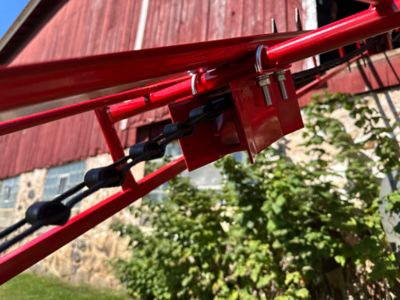

- Heavy-duty, No. 55 detachable conveyor chain with raised links every 24 in. for more positive movement
- Specially-engineered return-chain guides to prevent catching
- Bronze pillow-block bearings on drive unit is self-aligning with grease zerks
- Full 1 in. solid head and jack shafts support the hay elevator
- Grease-able, bronze-bushing idler sprockets
- Stronger, No. 40 roller-chain final drive
- Sturdy, universal motor mount for electric motors is adjustable for leveling, belt take-up and "stop and go" operation
- Mount is quickly detachable for inside storage of the motor (drive-belt included)
- Compatible with other square-tube hay elevators
- Included Hayrite drive kit includes a 3/4 HP motor with pulley, cord and plug
- Frame type is 56
- Voltage of 115/230V (wired for 115V)
- Amperage is 10.6/5.3A
- Single motor phase
- Cord is 14 gauge x 7 in. L
| Brand | Hayrite |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | Universal |
| Harvesting Equipment Type | Other |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 15.5 in. |
| Product Length | 16 ft. |
| Product Weight | 182 lb. |
| Product Width | 36.5 in. |
| Manufacturer Part Number | HEC-16MDK34 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 24 Questions
Newest questions
Q: How is the assembled unit moved around on the farm?
3 months ago1 Answer
- A: Hi Neighbor! The unit can be moved and positioned by two people, sometimes with the assistance of a rope block and tackle or a tractor front-end loader.3 months agoHelpful?
Q: WHAT IS THE IDEAL SLOPE FOR THIS HAY ELEVATOR TO WORK PROPERLY? I'M TRYING TO DETERMINE IF IT IS LONG ENOUGH FOR MY BARN LOFT.
6 months ago1 Answer
- A: Hi Neighbor- Maximum Angle: 45 degrees Max Lift Height: Approximately 11' 3" for the 16 ft. base unit.6 months agoHelpful?
Q: do you stock hay elevator #55 chain repair links ?
9 months ago1 Answer
- A: Hello Neighbor, Replacement parts will need to be special ordered directly from the vendor through your local TSC store.9 months agoHelpful?
Q: what is the width of this unit without the motor
a year ago1 Answer
- A: Hi Neighbor! The width is 36.5 in.a year agoHelpful?
Q: Does it come assembled
a year ago1 Answer
- A: Hi Neighbor! This product does require some assembly.a year agoHelpful?
Q: can elevator be extended to 20'?
a year ago1 Answer
- A: Hi extender this has a max height of 16Fta year agoHelpful?
Q: what is the total width at the bottom including the motor assembly? 23" + ?
a year ago1 Answer
- A: Hi Neighbor! The width is 23-1/2” on either bottom or top. The bottom contains the motor mount on a pipe which takes up more room on the ground. For further assistance you are welcome to contact the manufacturer: 1-800-842-5349a year agoHelpful?
Q: What square tube elevators are compatible with this?
a year ago1 Answer
- A: Hi Char, this item is Compatible with other square-tube hay elevators. For more specifications, please see your owners manuala year agoHelpful?
Q: where can i find a maintenance procedure for the Hayrite elevator? something that shows the lubrication points and types of lube to use. thanks
2 years ago1 Answer
- A: Please see the link for a PDF of the owner's manual: https://www.farmco.com/pdf/hayrite%20elevator%20lr.pdf For further assistance, please contact the manufacturer: 1-800-842-53492 years agoHelpful?
Q: Can i use this for split firewood as well?
2 years ago1 Answer
- A: No this has not been rated for that use.2 years agoHelpful?
1 - 10 of 24 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 24 Questions
Newest questions
Q: How is the assembled unit moved around on the farm?
3 months ago1 Answer
- A: Hi Neighbor! The unit can be moved and positioned by two people, sometimes with the assistance of a rope block and tackle or a tractor front-end loader.3 months agoHelpful?
Q: WHAT IS THE IDEAL SLOPE FOR THIS HAY ELEVATOR TO WORK PROPERLY? I'M TRYING TO DETERMINE IF IT IS LONG ENOUGH FOR MY BARN LOFT.
6 months ago1 Answer
- A: Hi Neighbor- Maximum Angle: 45 degrees Max Lift Height: Approximately 11' 3" for the 16 ft. base unit.6 months agoHelpful?
Q: do you stock hay elevator #55 chain repair links ?
9 months ago1 Answer
- A: Hello Neighbor, Replacement parts will need to be special ordered directly from the vendor through your local TSC store.9 months agoHelpful?
Q: what is the width of this unit without the motor
a year ago1 Answer
- A: Hi Neighbor! The width is 36.5 in.a year agoHelpful?
Q: Does it come assembled
a year ago1 Answer
- A: Hi Neighbor! This product does require some assembly.a year agoHelpful?
Q: can elevator be extended to 20'?
a year ago1 Answer
- A: Hi extender this has a max height of 16Fta year agoHelpful?
Q: what is the total width at the bottom including the motor assembly? 23" + ?
a year ago1 Answer
- A: Hi Neighbor! The width is 23-1/2” on either bottom or top. The bottom contains the motor mount on a pipe which takes up more room on the ground. For further assistance you are welcome to contact the manufacturer: 1-800-842-5349a year agoHelpful?
Q: What square tube elevators are compatible with this?
a year ago1 Answer
- A: Hi Char, this item is Compatible with other square-tube hay elevators. For more specifications, please see your owners manuala year agoHelpful?
Q: where can i find a maintenance procedure for the Hayrite elevator? something that shows the lubrication points and types of lube to use. thanks
2 years ago1 Answer
- A: Please see the link for a PDF of the owner's manual: https://www.farmco.com/pdf/hayrite%20elevator%20lr.pdf For further assistance, please contact the manufacturer: 1-800-842-53492 years agoHelpful?
Q: Can i use this for split firewood as well?
2 years ago1 Answer
- A: No this has not been rated for that use.2 years agoHelpful?
1 - 10 of 24 Questions
Similar Items
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
Items You May Like
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
-
-
Customers Also Bought
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
Reviews
Summary of Reviews
The product is generally well-received, with users praising its effectiveness, ease of use, speed, and durability. Many find it to be a time and labor-saving device that helps with moving hay bales. However, some users reported minor issues with the assembly process, and a few mentioned the product'...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- setup
- instructions
- purchase
- satisfaction
- quality
- weight
- mounting
- opening
1 to 4 of 102 Reviews .
1 – 4 of 102 Reviews
Most Recent
Stonewall, LA
Reviews 2
3 out of 5 stars.
Hay elevator
20 days ago
The item had obviously been dropped as the gear housing was bent in several places and one side of the frame was also bent. As I didn’t want to wait for a replacement, I was able to bend the pieces back into decent shape. For the cost of the item I would have expected it delivered in perfect condition.
SweepstakesYes
No, I do not recommend this product.
Reviews 3
5 out of 5 stars.
Happy grandson !
2 months ago
Works well has plenty of power sure made life easier
Yes, I recommend this product.
Ludington MI
Review 1
5 out of 5 stars.
Customer Service was very helpful
2 months ago
Karai managed to retrieve a missed TSC promotion and I was very satisfied with her help and final solution. She was professional and waited on the line to place my order. I was able to also use my Visa 48 month free credit promo too.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Upstate NY
Review 1
5 out of 5 stars.
Hay elevator, a must if you have square bales.
8 months ago
I looked around for a long time for a used hay elevator in fair condition with little luck... they were either way too long or beat up and asking way too much money. I'm happy we pulled the trigger on this unit. It is built like a tank and works perfectly. It was a pain in the butt to put together, thank God for the YouTube video otherwise I'd still be cursing in the barn trying to assemble it! If you have the need for a hay elevator, this will do the job.
SweepstakesYes
Yes, I recommend this product.
