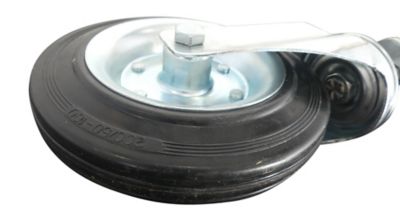

EZ Open 8 in. Swivel Gate Cster Set With Universal Mounting Bracket

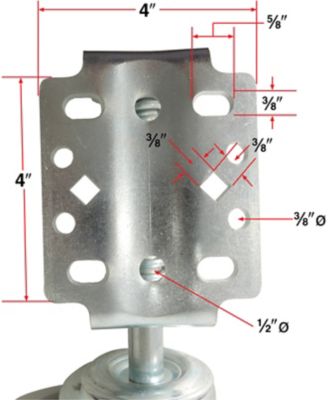

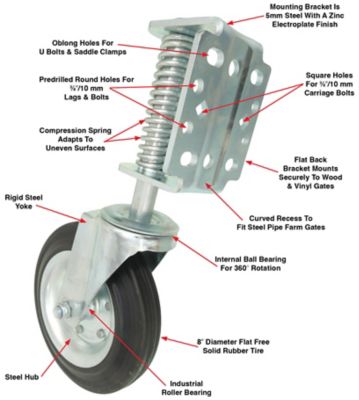

If you have had experience with 8 swivel gate casters, you would know that they usually have a narrow mounting bracket with only 2 holes that are about 1 from the spring which limits clearance and can make installation problematic. We have reengineered the bracket so that there are 4 mounting holes conveniently located and we have included 2 square 10.1 x 10.1mm holes that will accept M10 or 38 carriage bolts. To top it off and make it a great option for 1 58 up to 2 diameter tubular steel farm / cattle gates, we have made a curved slot down the back of the bracket and included slotted holes that can accommodate clamps. Since we know that farm / cattle gates and pipe frame gates will be a primary application for this caster we have included 2 special flat back clamps. Unfortunately, since the range of other applications is large, and varied, you will need to furnish the necessary nuts, bolts, screws, or lags for attachment to wood and vinyl gates.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
