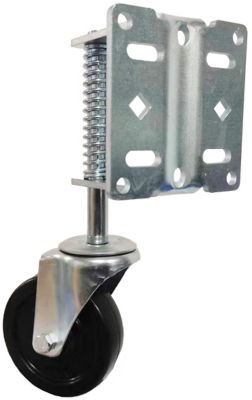

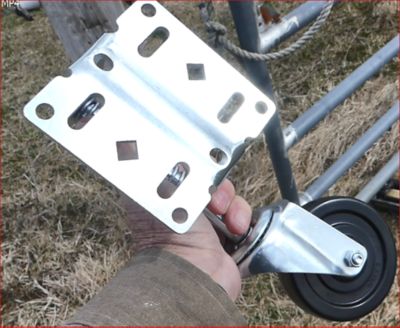

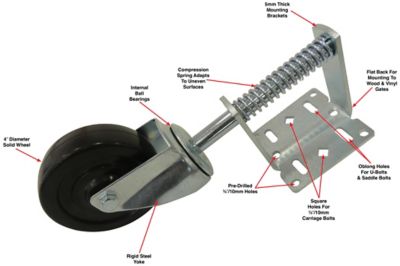

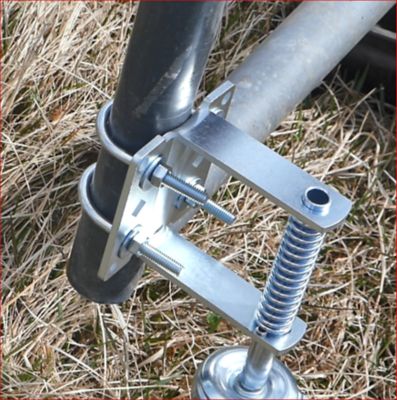

If you have had experience with 4 swivel gate casters, you would know that they usually have a narrow mounting bracket with only 2 holes which limits options and can make installation problematic. We have reengineered the bracket so that there are 4 mounting holes for lags, screws or hex bolts conveniently located and we've included 2 square 10.1 x 10.1mm holes that will accept M10 or 38 carriage bolts. To top it off and make it a great option for tubular steel chain link fence gates, we have made a curved slot down the back of the bracket and included slotted holes that can accommodate U bolt style bolts. Since the range of applications is large, and varied, we do not supply any hardware and you will need to furnish the necessary nuts, bolts, screws, etc.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
