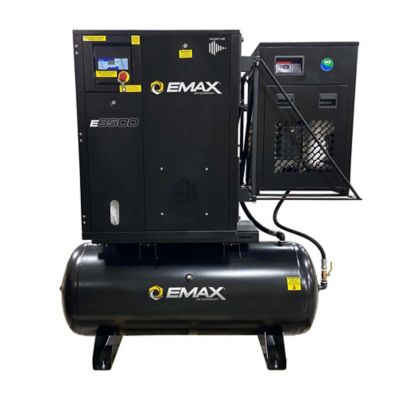

EMAX 20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003

  • Online Only

EMAX 20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003

Item # 2343362

Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
$14,659.99
or
or

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • Online Only

EMAX 20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003

Item # 2343362

Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
Image showing  20HP 3PH 77CFM 100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK200003
$14,659.99
or
or
financeCard Logo
$307/mo.†  for 48 months at 0% APR or earn $732 in Rewards+ on this purchase.
Valid 5/11/2026 - 5/25/2026
Apply now

This item is available online only

Out of stock delivering to

37027

This is a Big & Bulky item.

Oversize Items Shipped To Store may incur freight charge.
Notice:
This Item cannot be shipped to AK, HI.

This item is not available

Search Stores

Temporarily unavailable


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

EMAX Compressors 20HP 3ph 208/230V new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a 120 gallon horizontal receiving tank with a patented swingarm mounted & refrigerated air dryer for small foot print and easy maintenance. 1 Year Standard, extended 5 Year with maintenance kit

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.

  • Pump life: 60,000 hours

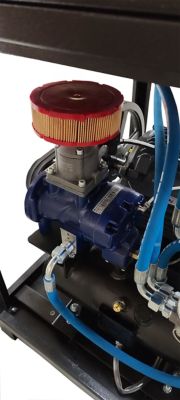

  • RotorComp rotary screw pump - Made in Germany
  • Cabinet: Made in Italy
  • 24.01 CFM @100 PSI, 20.48 CFM @145 PSI Maximum
  • Start type: Wye/Delta
  • Drive type: V Belt Drive
  • Controller type: Logik 9
  • Inlet Valve type: Poppet valve
  • Outlet connection: 1 inch NPT
  • Industrial electric Motor with Slow 1750 RPM
  • Automatic start/stop operation
  • Weight: 1000 lbs
  • Drain type: Ball valve
  • Dryer: 115CFM 115V refrigerated air dryer, Environmentally friendly 134A refrigerant, Built in coalescing filter, Dew point: 37-50, pipe size: 1.5 in., Max rated inlet temp:122
  • Tank: Solid steel 120 gallon horizontal, ASME certified in all 50 states, Max PSI 200
