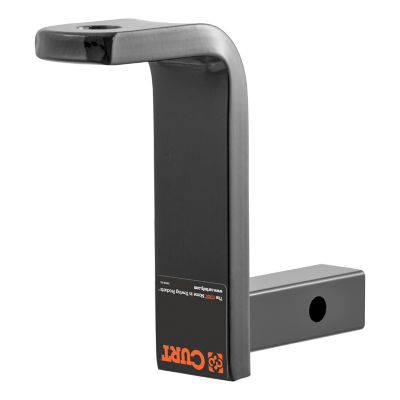

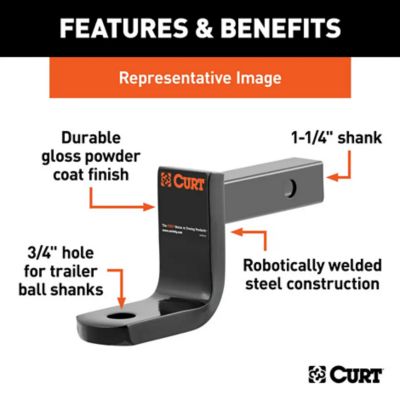

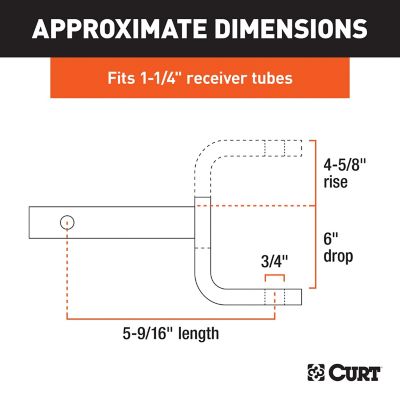

CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 5-9/16", a drop of 6" and a rise of 4-5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on ball mounts and hitches? Check out our ball mount and hitch FAQs in the product documents section.
