Culvert HDPE 24 in. x 20 ft. Corrugated Pipe, HDPE 2420

SKU: 133085799
Enter Zip Code for price
Product price

Save Up To
See price at checkout
No ratings found

Quantity

TSC of russellville #2218
14001 hwy 43 ste 14
russellville, AL 35653
(256) 332-5550
TSC of russellville #2218
14001 hwy 43 ste 14
russellville, AL 35653
(256) 332-5550
Check Availability at Other Stores
Standard Delivery Not Available to
This item will ship within 4 days.
Change Delivery Location
Note: This product cannot be shipped to AZ,CA,CO,ID,MT,NV,NM,OR,UT,WA,WY

Item Information

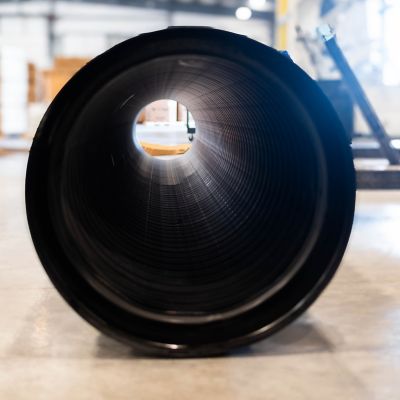

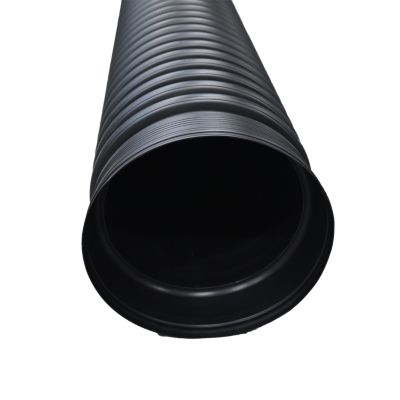

Culvert HDPE 24 in. x 20 ft. Corrugated Pipe

  • Manufactured with smooth interior allowing for more efficient flow
  • Designed with a bell and spigot with a gasket for a water tight joint
  • Excellent abrasion and corrosion resistance
  • Long term drainage solution
  • High Density Polyethylene
  • Our culverts are DOT approved. They will support the weight of any DOT approved vehicle when installed correctly. If unsure of how to properly install, please seek professional advice.
Meets or exceeds AASHTO M252 and AASHTO M294 Type S

Specification Description
CountryofOrigin: Made in USA
Number of Walls: 1
Application/Use: Used in driveway and roadway culverts
Wall Thickness: 2.75 in.
Operating Temperature Range: N/A
Type: HDPE Culvert
Material: High Density Polyethylene
Product Inner Diameter: 24 in.
Product Width: 26.75 in.
Special Feature(s): N/A
Product Length: 20 ft.
Product Outer Diameter: 26.75 in.
Product Weight: 231 lb.
Maximum Operating Pressure: N/A
Part Number: HDPE 2420
Manufacturer Part Number HDPE 2420

Is there a way to cap both ends to make a water tight pontoon?

Asked by: AbelmannT
These products are designed specifically for drainage. We do not recommend using as a pontoon.
Answered by: CodyP
Date published: 2019-06-18

Can these be cut into 10' sections?

Asked by: RandalWildcat
Yes, a reciprocating saw can be used.
Answered by: MatthewL
Date published: 2019-05-21

Does the bell and spigot allow you to literally screw these lengths together to join them for added length?

Asked by: COL T
The HDPE pipe actually slide together. The spigot is equipped with a rubber gasket.
Answered by: Alicia M
Date published: 2019-01-23

Is there any way to install a valve inside of pipe to control water flow?

Asked by: Beaver Man
There is no recommended way to install a valve inside of the HDPE pipe. However, gate valves can be installed on a concrete headwall at the end of the HDPE pipe. This is a very in depth process, professional installation is highly recommended.
Answered by: AshleyBe
Date published: 2018-11-06

Can you drive over these? What’s the weight load that these can take?

Asked by: Wanttoknow33
These culverts are DOT approved, so they will technically support the weight of any DOT approved vehicle when installed correctly. We recommend seeking professional advice when installing if you are unsure om how to properly install.
Answered by: JasmineH
Date published: 2018-11-05

can these be used as a protective casing for an underground bore

Asked by: const123
The vendor says the item should act as a protective casing as long as the pipe is installed correctly.
Answered by: richardm
Date published: 2019-08-19

Is there a prescribed manner to join two lengths at a 45° or 90° angle, or is there such a manufactured joint? If not, what is the flex (in inches over a 20' length)?

Asked by: Homestead001
We would suggest seeking professional installation advice for this type of question.
Answered by: NRoberts
Date published: 2019-04-12

I need 24 inch gate out let, 24inch tee for irrgation cost of these items thanks.

Asked by: Charles Blanton
