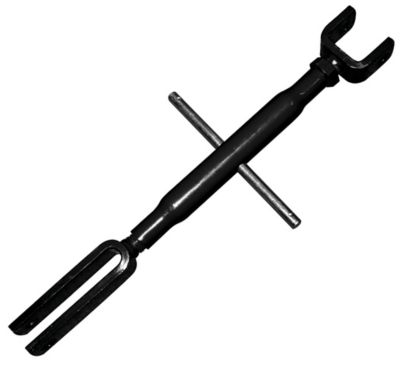

CountyLine Lift Arm Leveling Assembly

SKU: 26774199
CountyLine Lift Arm Leveling Assembly
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 3.1
3.1
 (9)

Quantity


850 symphony ln
tupelo, MS 38804
(662) 844-7081
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

CountyLine Lift Arm Leveling Assembly fits most full-sized Ford tractors, 1939 to date (replaces Ford NCA577A and 8N569B).

  • Adjusts height of lift arms on either side with convenient handle
  • Adjusts from 18-1/2 in. closed to 25 in. open with locknut, 7/8 in. NF threads and clevis at each end
  • Also a replacement for Category 1, 3 pt. hitches
  • 1 year limited warranty

Specification Description
Warranty: 1-Year Limited
Product Weight: 6 lb.
Brand: CountyLine
Model: Ford
Manufacturer Part Number S010502TSC
CountyLine Lift Arm Leveling Assembly is rated 3.1 out of 5 by 9.

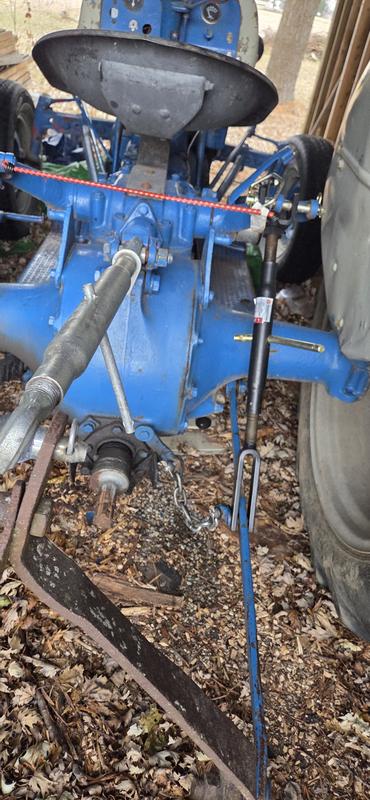

Rated 5 out of 5 by from worked for me This worked great with no adjustments on my FarmTrac 45 tractor. Had a hard time finding a replacement part for the original. Brought it home, took the top part off the original lift arm assembly, added it to the new one, inserted pens, did the adjustment to the mower deck and off I went to mow, mow, mow
Date published: 2019-09-07
Rated 5 out of 5 by from Exactly what I was looking for. Road maintenance was stopped due to the failure of my Ford tractors leveling link. I needed another ASAP to be able to grade my dirt road following some major damage due to some severe rain. Tractor Supply had a leveling link that fit my tractor and I was able to finish the job.
Date published: 2018-07-14
Rated 1 out of 5 by from Broke first use I had to modify this by cutting the top bracket off and welding on an eye swivel in order to fit an older kubota. That worked fine, but first time I used it, the bottom bracket broke off the threaded rod at the factory weld. Upon inspection, there's obvious rust around 3 quarters of the welded area (inside), and only 1/4 of the weld was holding it together to begin with. The weld had almost no penetration even in this area. I'll have to re-weld the very poor factory weld myself.
Date published: 2018-06-07
Rated 4 out of 5 by from Seems like well made part - it won't fit a Kubota It won't fit a Kubota L3710 CAT1 hitch - slightly different design and I couldn't make it work. It appears to be a well made part at a fair price however.
Date published: 2018-05-25
  • y_2020, m_7, d_9, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_8
  • loc_en_US, sid_26774199, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

Will this fit a Ford 4630? Thanks

Asked by: CMC44
Please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST), so we can better assist you.
Answered by: ErlindaC
Date published: 2020-04-13

How can this be labelled Category 1 when lift arm pins for category 1 are 7/8" and the holes in the short fork on this assembly are barely larger than category 0?

Asked by: AceKQJT
The classification refers to the application of this leveling assembly which is designed to replace Cat 1 tractors. One replacement example is a Ford NCA577A.
Answered by: ErlindaC
Date published: 2019-08-17

Will this work on a new Holland tn70?

Asked by: David_72023
No, this will not fit this unit has a category 2 3-point hitch, this assembly is designed for a C1 hitch.
Answered by: ErlindaC
Date published: 2019-05-21

Will this fita Ford 5000

Asked by: Just answer the question2
This tractor could have a cat 1 hitch or a cat 2 hitch depending on actual tractor. If it has a cat 1 hitch, then the leveling assembly will fit. If it has a cat 2 hitch, the leveling assembly will not fit.
Answered by: jessicasm
Date published: 2020-03-13

what is the bottom opening width? need a 1 inch to fit jdeere 870, why not show all dimensions?

Asked by: wizard concord
The dimension is 3/4”. Please check your email for requested information.
Answered by: jessicasm
Date published: 2019-11-05

Will it replace lift arm on John Deere 4710?

Asked by: Bbcoop
No, this model is not compatible with your unit.
Answered by: jessicasm
Date published: 2019-10-07
