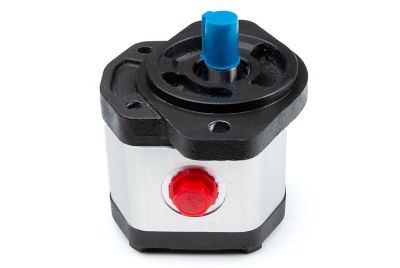

Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation

Shop all Chief
Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation

Item # 1307391

Chief Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation
Chief Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation
$179.99
Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation

Item # 1307391

Chief Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation
Chief Chief 2-Bolt Hydraulic Gear Pump, 5/8 Shaft, 0.73 CID, 6.32 at 2,000 RPM, 3,626 PSI, CW Rotation
$179.99

The Chief Hydraulic Gear Pump offers aluminum body with cast-iron end plate construction. This high pressure hydraulic gear pump comes with 11 displacement sizes from 0.24 to 1.95 in3/rev. (4 to 32 cm3/rev). The gear pump's standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 in. diameter straight with 5/32 in. straight key.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Aluminum body with cast iron end plate construction for a durable gear pump
  • Filtration: 25 micron or better
  • Oil viscosity: 6 to 200 CST
  • Inlet pressure: 12 to 32 PSI ABS
  • Oil temperature: -25 to 80 degrees C (-12 to 175 degrees F)
  • Ambient: -22 to 55 degrees C (-8 to 130 degrees F)
  • 0.73 CID
  • CW rotation
  • 3,626 PSI
  • 6.32 at 2,000 RPM
  • Hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
  • Standard mounting flange on the pump is SAE A-2 bolt
  • Standard drive shaft is a 5/8 in. diameter straight shaft with 5/32 in. straight key
