Torin Big Red Manual Geared Hand Winch, Zinc-Plated, Single Speed, 600 lb. Capacity
Torin Big Red Manual Geared Hand Winch, Zinc-Plated, Single Speed, 600 lb. Capacity
3.932 Reviews
Item # 183026299
$69.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Torin Big Red Manual Geared Hand Winch, Zinc-Plated, Single Speed, 600 lb. Capacity
3.932 Reviews
Item # 183026299
$69.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.Apply now
Shopping at
Grassland (franklin) TN
Delivery to
37027
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Pickup Later at Franklin TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Torin Big Red TRT1061 600 lb. Single-Speed Manual Geared Hand Winch is a great tool that offers quality lifting and towing aid up to 600 pounds. This winch is a must have utility to make short pulling distances easier and lifting large or heavy items. Designed for easy mounting on pickup trucks, ATV's, boats, trailers, lifting grain augers, and general use for multipurpose hauling or lifting/pulling of light loads such as volleyball nets. A manual-automatic locking brake system gives you security for load transport and stability. This winch also features a comfortable nylon handle for turning the Single-speed planetary gear for efficient, easy cranking for rotating fast or slow on heavy loads. Zinc-plated finish for superior corrosion resistance is applied to ensure a long-lasting finish and to help prevent rust, helping resistant bad weather and outdoor elements. Tested for reliability and safety.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Single-speed planetary gear for efficient, easy cranking for rotating fast or slow for those heavy loads
- Comfort grip nylon handle allows for a positive hold while cranking and reversible gearing changes
- Manual/Automatic brake
- Heat-treated high carbon steel gears to resist wear and last longer
- Free spooling clutch
- Fairlead roller guide
- Gear Ratio: 3:1:1
- Handle Length: 6.5 in.
- Drum Capacity: 26 ft. strap
- Drum Capacity: 32 ft. of 3/16 in. rope
- Permitted Strap Width: 2 in.
- Maximum Working Load: 600 lb.
- Easy-to-use one-way ratchet Base plates fit BIA Standard mounting bolt pattern for easy installation.
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Zinc-plated finish for superior corrosion resistance is applied to ensure a long-lasting finish and to help prevent rust, helping resistant bad weather and outdoor elements
- Built-in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
- Designed for use with cable, rope or strap (not included)
- 1 year limited warranty
- What's Included:
- (1) Hand Winch

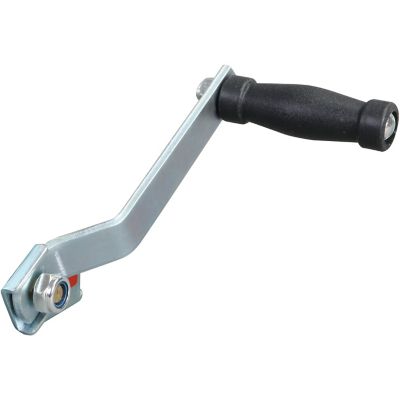

- (1) Handle
- Choosing the Winch for you:
- Minimum winch pulling capacity = maximum weight of vehicle including motor, fuel, and gear divided by 2
- For example, ATV, fuel, gear = 800 pounds; 800 pounds/2 = 400 pounds; select the winch rated at least 500 lb.
| Brand | Torin |
|---|---|
| Country of Origin | Imported |
| Braking Mechanism | Automatic |
| Capacity | 26 ft. strap drum capacity |
| Clutch Type | Manual Geared Hand Winch |
| Compatibility | Manual/Automatic brake |
| Engine Brand | N/A |
| Engine Displacement | 0 L |
| Engine Type | None |
| Fairlead Included | Yes |
| Fairlead Type | Roller |
| Features | Ideal use on pickup trucks, trailers and other mobile applications. |
| Gear Ratios | 3:1:1 |
| Handle Length | 6-1/2 in. |
| Horsepower | 0 Horsepower |
| Line Diameter | 2 in. |
| Line Length | 26 ft. |
| Line Pull Capacity | 600 lb. |
| Line Speed | 1-speed |
| Mounting Bolt Length | 5.5 in. |
| Mounting Bolt Width | 3.25 in. |
| Number of Speeds | 1 |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 7 in. |
| Product Length | 7 in. |
| Product Weight | 4.7 lb. |
| Product Width | 9-1/2 in. |
| Line Type | Rope |
| Voltage | 0 V |
| Warranty | 1 Year Limited |
| Motor Type | None |
| Manufacturer Part Number | TRT1061 |
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: I purchased this item and there was a parts bag on the inside. Nowhere does it state what these items are or where they go. any insight would be appreciated.
3 years ago1 Answer
- A: Hi, I've included the link to the online owners manual to assist you. There is a parts list on page two. If the parts and list do not match, please reach out to Torin directly at 1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/83/02/62/1830262_Man1.pdf2 years agoHelpful?
Q: Can the handle be switched to the other side
3 years ago1 Answer
- A: Handle Switch, The handle on this item can not be switched, you would need to be able to switch the gear mechanism as well and it can not be switched.3 years agoHelpful?
Q: Does the witch have a brake system on it so it doesn't free spool with a load on it
7 years ago1 Answer
- A: No. This winch does not have a brake.7 years agoHelpful?
Q: Does the winch have a brake so that when lowering items, it does not "free wheel"
7 years ago1 Answer
- A: No. This winch does not have a brake.7 years agoHelpful?
Q: How do you attach cable? There is no bolt with clamp included?
9 years ago1 Answer
- A: A cable fastener can be inserted into one of the holes on the side of the cable drum.8 years agoHelpful?
Q: what material is the base made out of?
9 years ago1 Answer
- A: Hello ! The base is made of metal. I hope this will help you! Thank you have a great day!9 years agoHelpful?
Similar Items
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Items You May Like
-
-
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
Customers Also Bought
-
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Reviews
- purchase
- weight
- packaging
- straps
- price
- holding
- large
- instructions
1 to 4 of 32 Reviews .
1 – 4 of 32 Reviews
Most Recent
Amissville, VA
Review 1
4 out of 5 stars.
Geared Hand Winch Review
5 months ago
In truth, I have not implemented this winch, yet, but I do have the following to state:

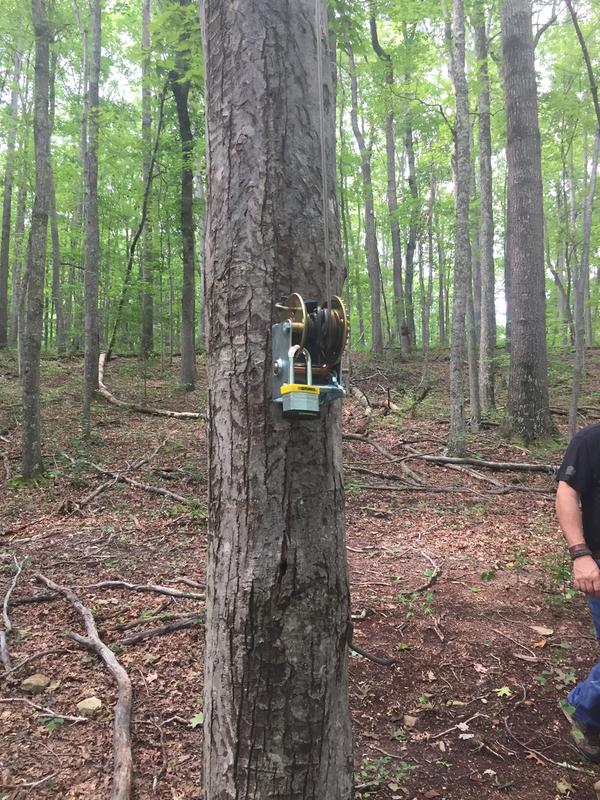

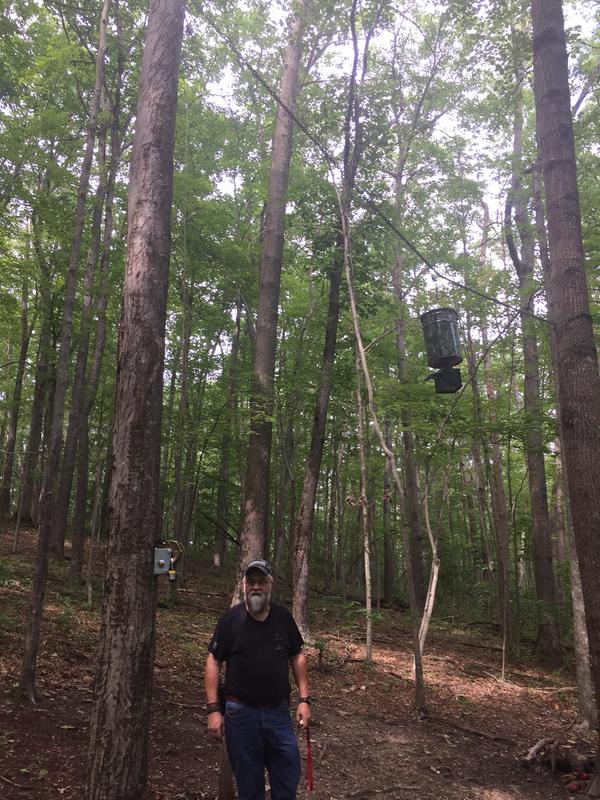

1) Instructions that came with winch say this is not a lifting device--but a pulling device only. Did not see this on the web for this item. Don't think I missed this. I plan on using it to lift and lower a bird feeder, so I am nowhere close to the load rating on device, so not worried I am using it for a purpose it was not designed for--even if that had been listed on the web.
2) There are several items included in the box with winch that are NOT depicted nor described in instructions. Specifically, two cotter pins, a sleeve and a pin. Presumably, the pin is held in place by the 2 cotter pins, and the larger pin goes through the sleeve. The absence of these items in the instructions, however, forces this to be an educated guess. I'd rather know than guess. Fix the instructions.
Yes, I recommend this product.
Reviews 2
5 out of 5 stars.
Xxxxx
2 years ago
Good price for the quality
SweepstakesYes
Review 1
1 out of 5 stars.
Cheap but didn't last.
2 years ago
Cheap yes, built to last even a little while...no. I bought and installed this winch on my little aluminum boat's trailer, the boat weighs 350 Lbs, if I used the boat eight times since the new winch was put on that's a lot. The last time I went to retrieve it from the water the directional switch/lock stopped working altogether, luckily I have a chain to lock down the front of the boat.
Fishkill, NY
Reviews 2
5 out of 5 stars.
Nice winch
4 years ago
This is very well built and easy to install. It is making my life easier.
SweepstakesYes
Yes, I recommend this product.
