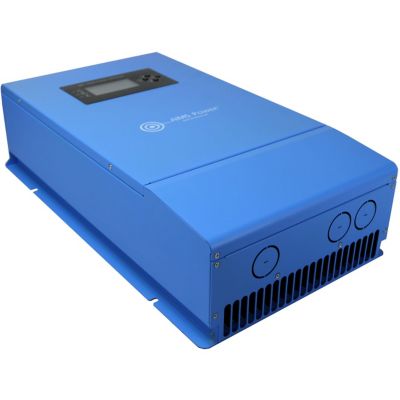

AIMS Power 60A Solar Charge Controller, 12/24/36/48 VDC MPPT

Prod Image
zoom in zoom out reset zoom
Product price
See Price at Check Out Why Can't I See the Price Click to know more about Mapp Price
Save Up To
SKU #131945499
No ratings found
Financing Available! Click here for more details...
Financing options available for qualified shoppers using a TSC branded credit card. Details and credit card application available at checkout.
Online Only
seperator line

Note:


Due to Department of Transportation regulations, this item can only be shipped by ground to the contiguous United States. This item cannot be shipped by either ground or air to Alaska or Hawaii.


This applies to certain items that ship with batteries.

Qty:
decrease quantity
increase quantity
power plus

Protect Your Purchase

If your covered product fails, we fix it, replace it, or reimburse you for it. Learn More

Power Plus Protection Plan

We’ll fix it, replace it, or reimburse you for it.
Add a plan today to protect your new product from costly repairs.

The plan provides the following benefits and more:

  • 24/7 support
  • Parts and labor coverage
  • Repair, replacement or reimbursement for covered products
  • No deductible or hidden fees

Your protection plan documents and instructions for filing claims will be sent to you in a welcome email.

Terms and Conditions

Item Shipping Option
Save to Wishlist
display or hide wishlist

The AIMS Power Solar Battery Charge Controller product line provides quality and reliable voltage regulation for your solar panel array. The AIMS MPPT charge controller uses an efficient algorithm to fully adjust with weather conditions to ensure that maximum power is harvested from the solar panel array throughout the day at 97.5-99% efficiency. With several size options, AIMS has a charge controller for every solar panel array. This 60A charge controller works with 12, 24, 36 & 48V DC battery systems and provides real-time self diagnostics that reports Fault and Alarm conditions as they occur. An easy to use LCD display allows the user to quickly and easily navigate through the screens and also includes unique LED sequences. A battery temperature sensor, added protections, RS 485 communications port and stackable design makes the AIMS Solar Charge Controller one of the best in the industry.

  • MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
  • Quality heatsink cooling - no fans needed and no thermal derating
  • Battery type selector and user defined charging voltage
  • 4 stage charging
  • Includes battery temperature sensor
  • PV input, battery output and load control ports
  • Stackable
  • Reliable electronics, over engineered components generating less heat
  • Very efficient up to 99%
  • Low self consumption
  • Thermal design rugged case
  • Over temp protection
  • Overload, short circuit, high and low voltage protection
  • RS485 port for computer monitoring
  • CE, ETL to UL1471 and RoHS compliant
  • Marine coated
  • Mounting holes
  • PV Operating Voltage: 15-150VDC@12V
  • 34-150VDC@24V
  • 50-150 VDC@36V and 60-150VDC@48V
  • Rated PV input: 12V - 800 Watts
  • 24V - 1700W
  • 36V - 2400 watt
  • 48V - 3400W
  • Maximum battery current: 60 amps
  • Max PV open circuit voltage: 150VDC
  • Self power consumption: <4W
  • Efficiency: 98.5%
  • Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
  • Optimal cooling case design - built for extreme conditions
  • Charging: battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
  • 4 Stage charging: bulk, absorption, float and equalize
  • Bulk charge voltage: sealed 14.4V, AGM/Gel 14.2V, flooded 14.6V, user defined 10-15V
  • Float charge voltage: sealed/AGM/Gel 13.7V, flooded 13.6V, user defined 10-15V
  • Equalize charge voltage: sealed 14.6V, AGM/Gel 14.8V, flooded 14.8V, user defined 10-15V
  • Low voltage reconnection: 12.5V
  • Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
  • Enclosure: IP43 protection, metal
  • Cooling: heatsink
  • Humidity: 100% non-condensing
  • Temperature compensation: -5mV°C/2V with BTS
  • Temperature range: -25°C to 60°C or -13°F to 140°F
  • Conformal coated for marine environments
  • Wire knockouts: 1.25 in.
  • Unit weight: 15.5 lb.
  • Boxed weight: 17.5 lb.
  • Dimensions: 14.5 in. L x 10.5 in. W x 4.5 in. H
  • Warranty: 2 years
  • Certifications: ETL to UL1471, CE, RoHS

Note: This product may require up to 2 additional days for order processing prior to shipping
