Zeeline by Milton Preset Oil Meter with Rigid Auto Tip, Premium Series
Zeeline by Milton Preset Oil Meter with Rigid Auto Tip, Premium Series
Item # 6140893
$1219.99
Zeeline by Milton Preset Oil Meter with Rigid Auto Tip, Premium Series
Item # 6140893
$1219.99

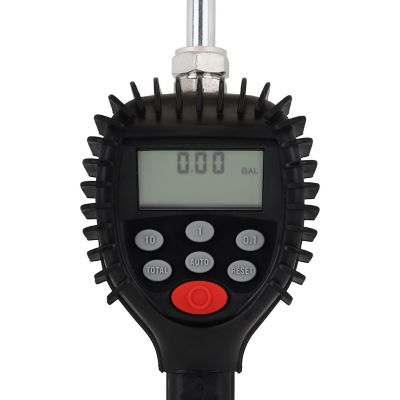

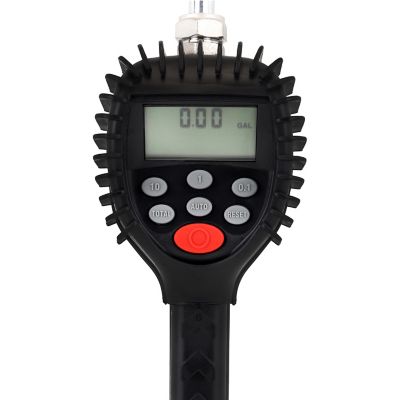

This preset digital control valve was built with professionals in mind and was designed for use with motor oils, gear oils, synthetic hydraulic oils, and transmission fluids. This control valve features a backlit LCD screen that is clear and easy to read, allowing the user to clearly identify the amount of fluid dispensed into their application from the valve. The ZE2603P features an auto-nozzle with rigid outlet, can be used with 1/2 in. NPT hoses and runs on a 9-volt battery. Made in USA.
- Comfort Handle: Built in ergonomic rubber grip that protects the operator from sudden impact shocks.
- Precise Oil Measurement: Accuracy rating of +/- 0.5%, stops dispensing at desired preset mode.
- Fast and Efficient delivery: 1-10 GPM delivery rate with a maximum working pressure of 1000 PSI.
- Built to Last: Crafted with aircraft grade aluminum components and enclosed in a polypropylene shell for protection against sudden impacts.
- Use with a variety of applications: For use with motor oils, gear oils, synthetic hydraulic oils, transmission oils.
- Made in USA.
- Temperature range: -14 degrees F to 140 degrees F. ( -10 C to 60 C)
- Pressure rating: 7-1000 PSI. (0.5-50 BAR)
- Flow Rate: 1-10 GPM (1-35 LPM)
- Thread size: 1/2 in. NPT (female)
| Brand | Zeeline by Milton |
|---|---|
| Country of Origin | Made in USA |
| Compatible Fluids | Motor Oils, Heavy Oils, Hydraulic Oils, Light Oils, Gear Oil, Medium Oils, Oils |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.5 in. |
| Features | Precise Oil Measurement: Accuracy rating of +/- 0.5%, stops dispensing at desired preset mode. |
| Hose Diameter | 0.5 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.5 in. |
| Maximum Flow Rate | 10 GPM |
| Power Type | Manual |
| Primary Material | Aluminum |
| Product Height | 8 in. |
| Product Length | 14 in. |
| Product Weight | 5 lb. |
| Product Width | 10 in. |
| Motor Type | Manual. |
| Warranty | 2-year |
| Manufacturer Part Number | ZE2603P |
