Traveller LED Light Installation Harness

SKU # 116955599
Product price

Save Up To
See Price at Check Out
Why?
Product Rating is 4.3
4.3
(18)

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

Add auxiliary lighting systems with the Traveller LED Light Installation Harness.

  • Easy-to-install wiring harness
  • Heavy-duty 40A relay for multi-light installation
  • Weatherproof Deutsch-style connector

Specification Description
Product Type: Wires
Power Type: Electric
Product Finish: N/A
Warranty: 1 Year Limited
Product Thickness: N/A
Product Diameter: N/A
Package Quantity: 1
Product Height: N/A
Application: N/A
Product Width: N/A
Brand: Traveller
Product Weight: 1.36 lb.
Product Length: N/A
Material: PVC
Handle Material: N/A
Manufacturer Part Number EDT-A-005
Traveller LED Light Installation Harness is rated 4.3 out of 5 by 18.
Rated 5 out of 5 by from Traveller Harness and 13.25" LED Light Bar This wiring harness made installation of my Traveller 13" LED light bar very quick and simple on my John Deere 2320. Light bar is mounted on the underside of the rollbar and the harness just fit, none to spare, but ample. The supplied matching plugs were a great benefit. Left enough leeway to drop rollbar when needed. Excellent light and hookup...far outshines the headlights.
Date published: 2018-01-16
Rated 5 out of 5 by from Perfect Store was out of wiring harness. I went to auto store for genaric wiring harness with relay. Long story short it wouldn't work. Bought this, simple plug and play. A must have for Traveller lights!
Date published: 2017-12-20

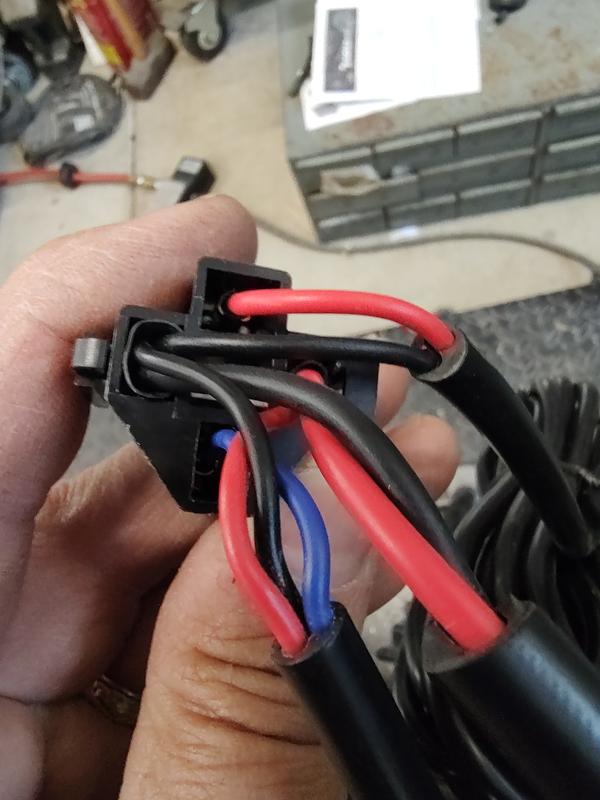

Rated 2 out of 5 by from Reversed wires Returned first set , wouldn't work. Second set same problem. Reversed wires. Red to negative terminal, black to positive. Works. But now on switch does not light up. Otherwise would have been so easy.
Date published: 2017-12-17

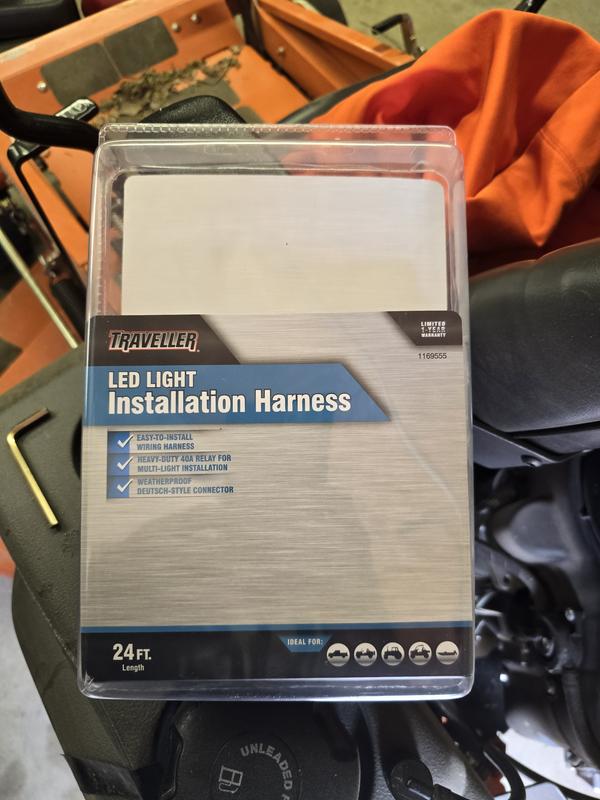

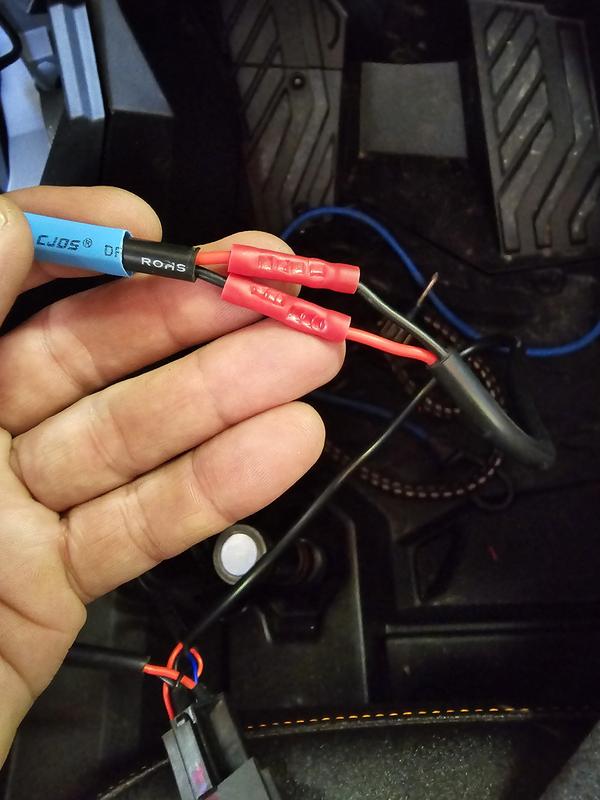

Rated 1 out of 5 by from Customer repair Male plug to light terminals reversed out of the box. Cut cable 10" from relay. Used M/F bullet connectors. Switched black/red wires. Now, lights work. Traveller needs better QC.
Date published: 2017-11-20
  • y_2018, m_6, d_19, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_16
  • loc_en_US, sid_116955599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply

I purchased the 2 pack of 3.5inch off road led lights, sku # 1238239. Will I need two wiring install kits? Could I tie both light wires together and connect them to one install kit?

Asked by: dw1651
You do not need two wiring kits, just purchase TSC SKU# 1168855 to connect 2 lights to one wire and connect to the wiring harness (SKU# 1169555).
Answered by: Valery
Date published: 2017-08-25

From the battery terminals to LED connector, how long is this harness? What is the wire gauge?

Asked by: Paul1995

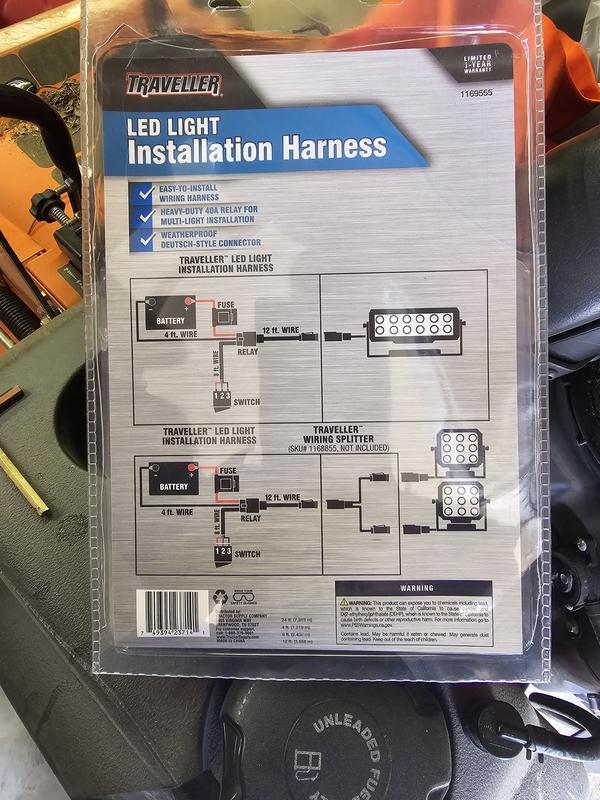

Battery terminals to relay is 4 ft. 14AWG wire, relay to connector is 12 ft 16AWG wire. So the distance from battery terminal to LED connector is 16 ft.
Answered by: ErlindaC
Date published: 2018-04-03

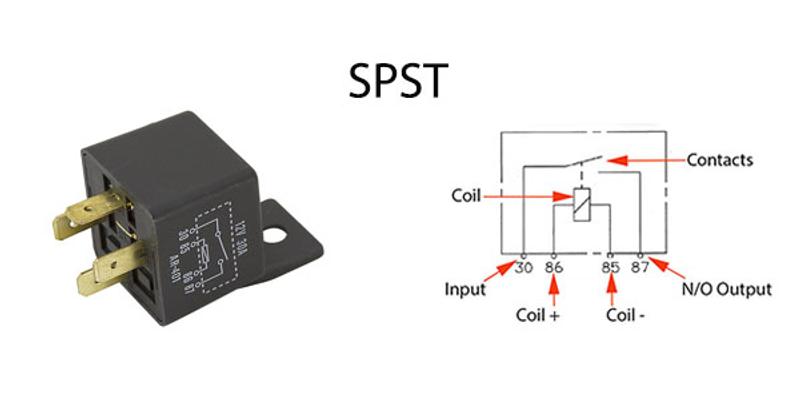

I need another relay for this install kit. Where can I purchase one?

Asked by: RodeoMom247
Please contact your local TSC.
Answered by: Valery
Date published: 2017-06-09

Can this wire harness run 2 15 w traveler worklights or do i need two wire harnesses

Asked by: Bthompson93
Yes, the capacity is fine to run those two lights but the harness only has one connector. We suggest purchasing SKU 1168855, Traveller 30 in. Y Connector, so you will have two connection points.
Answered by: PHailey
Date published: 2017-03-08

What size hole is needing to be drilled to receive the switch?

Asked by: Golf cart lighting
The diameter of the drilled hole should be 2.2 cm (.86inch) to receive the switch
Answered by: Nancyb
Date published: 2017-04-03

Does the harness work with Extreme LED lights

Asked by: Pat at work
This wiring harness is designed for Traveller light, it also can work with any wiring with Deutsch style quick connector.
Answered by: Valery
Date published: 2017-04-03

can this run 2 120w travaler lights sku 1170671

Asked by: viger91
Yes, the capacity is fine to run those two lights but the harness only has one connector. We suggest purchasing SKU 1168855, Traveller 30 in. Y Connector, so you will have two connection points.
Answered by: Valery
Date published: 2017-06-19

What size fuse should I use with this harness and a 20 inch, 120w light bar? I installed it and I cant get the switch to light up, or the light bar to come on. I used a 20A fuse and a 15A fuse (like the instructions suggest.) thanks

Asked by: KDel14
Please note, when turning on the switch, the switch itself won’t light up. Connect the light bar directly to DC 12 v battery to ensure it works properly. If yes, then replace the fuse. If no, return the unit to the store.
Answered by: Astroer
Date published: 2017-01-27
