TOPDON Handheld Thermal Imaging Camera 256 x 192 Resolution

Item # 259123099

$314.99

Sale

Was~~$349.99~~

Save $35.00

$53/mo.^† suggested payments with 6 Months Financing or earn $15 in Rewards⁺ on this purchase.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor’s Club Members earn points with purchases.

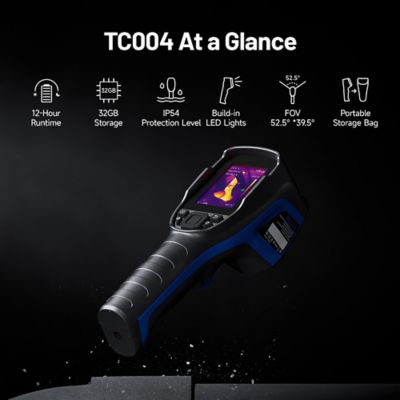

The TC004 is a handheld thermal camera that measures a wide range of temperatures, from -20°C to 350°C (-4°F to +662°F), and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes, enabling users to project and upload images from the TC to their PC.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

High Resolution & Thermal Sensitivity The TC004 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and say goodbye to blurry images. A high thermal sensitivity of 0.05 allows the TC004 to distinguish between tiny temperature differences.
Three Measurement Modes & Auto-Detection The TC004 has three different measurements to detect center, hot and cold spots. The automatic detection feature allows users view temperature differences more visually.
Wide FOV The TC004 also features a wide 56 FOV for to easily capture more objects in view. There is also no need to adjust focal length.
Wide Measurement Range & Accuracy The TC004 features a wide temperature measurement range of -20 - +350. It can also measure temperatures with 2 accuracy for precise temperature measurements. NETD of this high-precision infrared sensor is less than 40mK, measurement accuracy is 0.1 degree, and error is less than 2%. This is to ensure the upmost accurate thermal readings.
PC Image Analysis and Instant Projection Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC004 also supports screen projection on a PC as well.
Extended Battery Life A powerful integrated battery allows the TC004 to have a 12-hour runtime.
Built-in Fill LED Light A built-in LED light allows users to record thermal readings without an additional light source.
Compact and Solid Design IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.
TISR Technology Our cutting-edge TISR (Thermal Image Super Resolution) technology digitally enhances the native 256x192 sensor resolution to a remarkably sharp 320 x 240 thermal view, delivering crisp thermal imaging to pinpoint issues like energy leaks or electrical hotspots with precision.

Brand	TOPDON
Country of Origin	Imported
Battery Size	Battery pack
Cellular Compatibility	None
Detection Range	alibration Measurement Distance 0.2m to 5m Identification Distance 0.1m to 40m Detection Distance 40m to 320m
Features	256192 IR resolution Temperature range: -20 deg.C to 350 deg.C (-4 deg.F to +662 deg.F) Thermal sensitivity: <40mK 2 deg.C or 2% accuracy 2.8-inch, 320240 display 20Hz frame rate 7 color palettes Multiple imaging
Flash Type	BUILT IN LED LIGHT
Housing Material	Aluminum
Maximum Flash Range	0 FT
Maximum Image Resolution	256X 192 pixels
Maximum Video Length	0 sec.
Megapixels	2 MP
Memory Card Compatibility	microSD
Mounting Location	Other
Number of Batteries Required	0
Power Type	Other
Primary Color	Blue
Product Height	3.5 IN
Product Length	9.5 IN
Product Weight	1.2 LB
Product Width	3 IN
Trigger Speed	Real -time imaging at 20Hz
Warranty	365 DAYS
Manufacturer Part Number	TC004
