TeeJet Manual Boom Controller for 3-Section Boom
TeeJet Manual Boom Controller for 3-Section Boom
Item # 211139499
Neighbor’s Club Members earn points with purchases.

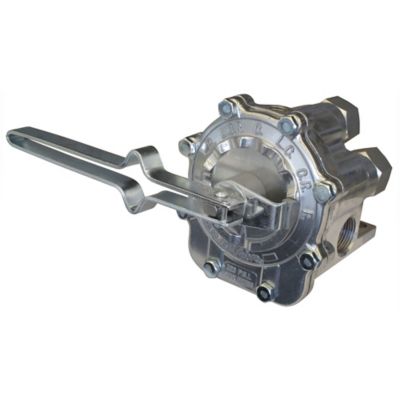

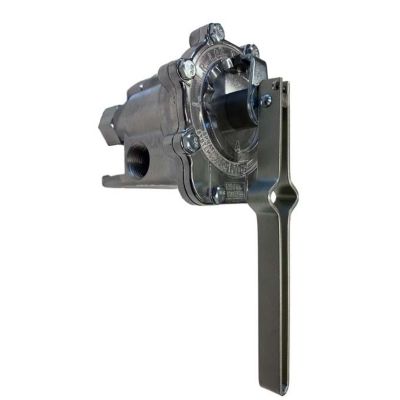

The TeeJet AA17l Manual Boom Controller for 3-Section Boom allows users to open any three boom section lines in any desired combination. Raise and lower lever to open and close the valve without changing the indexed position, and the aluminum construction of the manual boom controller comes with stainless steel and plastic internal parts for maximum corrosion-resistance. The boom controller is built as a replacement TeeValve manual selector control valve for some Fimco 3-point sprayers.
- Provides on/off control of a 3-section spray boom; left, center and right sections
- Seven indexed positions for any possible combination; L, R, C, LC, LR, LCR and OFF
- Lever on the boom controller is lowered for Off and raised for On
- Choice of 3/4 in. NPT (AA17L) or 1 in. NPT (AA17Y) inlet fittings
- Two side ports with 3/4 in. NPT threads for connecting spray guns, bypass lines or pressure relief valves
- 1/4 in. NPT port on the top for easy pressure gauge installation (gauge not included)
- Sprayer parts operating pressure of 0 to 300 PSI
- Aluminum construction with stainless steel and plastic internal parts for maximum corrosion-resistance
- Boom controller fits FIMCO 110 to 300 gal. 3-point sprayers
- Backed by a 1 year consumer and 90 day commercial warranty
| Brand | TeeJet |
|---|---|
| Country of Origin | Imported |
| Compatibility | Sprayers |
| Maximum Operating Pressure | 300 PSI |
| Minimum Operating Pressure | 0 PSI |
| Package Quantity | 1 |
| Primary Material | Aluminum |
| Product Height | 4-3/4 in. |
| Product Length | 9-1/2 in. |
| Product Weight | 2 lb. 10.6 oz. |
| Product Width | 5-3/4 in. |
| Sprayer/Boom Accessory Type | Boom Kits |
| Warranty | 1 year consumer and 90 day commercial warranty |
| Manufacturer Part Number | 5143295 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: How many 11002 nozzles will each outlet run?
2 years ago1 Answer
- A: Please reach out to the manufacturer at info@teejet.com2 years agoHelpful?
Q: I tried to thread 3/4 pipe fittings into boom outlets and they wont screw in...is this metric thread
5 years ago1 Answer
- A: These fittings are ¾ NPT. Possibly your fitting did not have correct threading on it, but the units is equipped with the ¾” NPT ports.5 years agoHelpful?
Q: Where does the out line from the pto go ? I’m guessing the in line from the pto goes in the bottom middle hole marked in on the valve ?
5 years ago1 Answer
- A: Please contact the manufacturer for more information regarding this product.5 years agoHelpful?
Q: Will this part help mix the chemicals
8 years ago1 Answer
- A: This part is for controlling the boom sections only.8 years agoHelpful?
Q: Which port does the regulator go?
9 years ago1 Answer
- A: The regulator will go into one of the side ports.9 years agoHelpful?
Q: is this 1" or 3/4"?
9 years ago1 Answer
- A: This is a TeeJet 3/4" (NPT) 300PSI Control Valve.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: How many 11002 nozzles will each outlet run?
2 years ago1 Answer
- A: Please reach out to the manufacturer at info@teejet.com2 years agoHelpful?
Q: I tried to thread 3/4 pipe fittings into boom outlets and they wont screw in...is this metric thread
5 years ago1 Answer
- A: These fittings are ¾ NPT. Possibly your fitting did not have correct threading on it, but the units is equipped with the ¾” NPT ports.5 years agoHelpful?
Q: Where does the out line from the pto go ? I’m guessing the in line from the pto goes in the bottom middle hole marked in on the valve ?
5 years ago1 Answer
- A: Please contact the manufacturer for more information regarding this product.5 years agoHelpful?
Q: Will this part help mix the chemicals
8 years ago1 Answer
- A: This part is for controlling the boom sections only.8 years agoHelpful?
Q: Which port does the regulator go?
9 years ago1 Answer
- A: The regulator will go into one of the side ports.9 years agoHelpful?
Q: is this 1" or 3/4"?
9 years ago1 Answer
- A: This is a TeeJet 3/4" (NPT) 300PSI Control Valve.9 years agoHelpful?
